Lexmark X642E Quick Reference

Lexmark™ X642
Quick Reference
Loading paper and
specialty media
Loading standard trays and
optional trays
Note:
Do not remove a tray when a job is
printing or when the control panel
green indicator light is blinking.
Doing so may cause a jam.
1

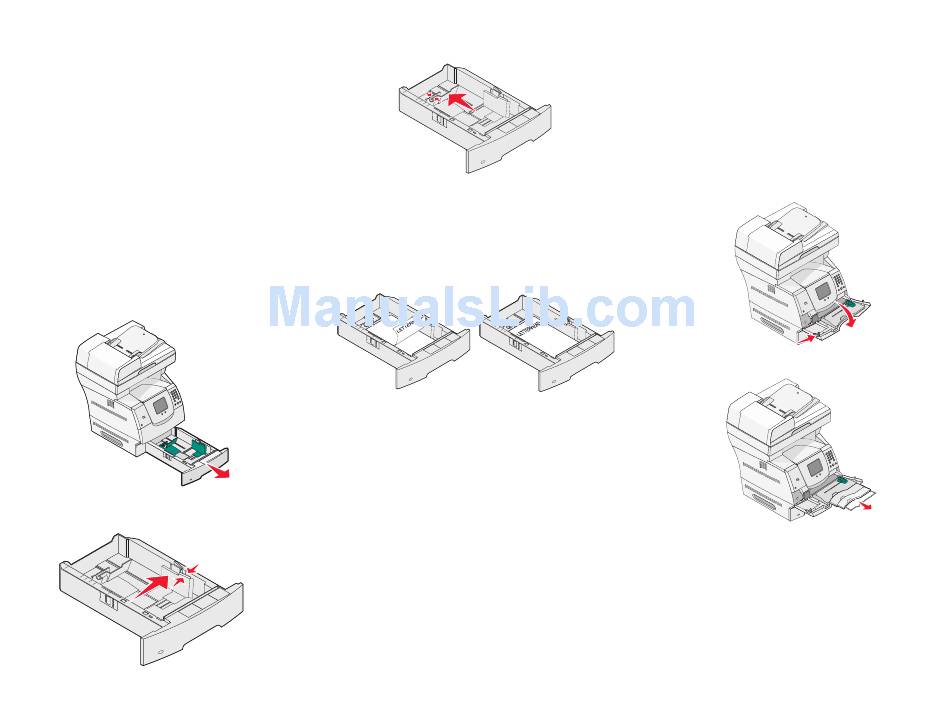

Remove the tray from the MFP, and place it on
a flat, level surface.
2
Squeeze the side guide tab, and slide the guide
to the outer edge of the tray.
3
Squeeze the rear guide tab, and slide the guide
to the correct position for the size media you are
loading.
4
Flex the sheets back and forth to loosen them,
then fan them. Do not fold or crease the print
media. Straighten the edges on a level surface.
5
Place the print media in the tray:
•
Print side facedown for single-sided printing
•
Print side faceup for duplex printing
Duplex
Simplex
Note: Do not fill paper above the load line.
Overfilling the tray may cause jams.
6
Squeeze the side guide tab, and slide the guide
toward the inside of the tray until it lightly rests
against the edge of the media.
7
Insert the tray into the MFP.
Setting the Paper Type and Paper
Size
1
Make sure the MFP is on.
2
Press Menu on the control panel.
3
Touch Paper Menu.
4
Touch Paper Size.
5
Touch the left or right arrow to change the size
for the desired tray.
6
Touch Submit.
7
Touch Paper Type.
8
Touch the left or right arrow to change the
media type for the desired tray.
9
Touch Submit.
10
Touch the home icon.

Loading the multipurpose feeder

1
Push the release latch, and lower the
multipurpose feeder.
2
Pull the tray extension out.
