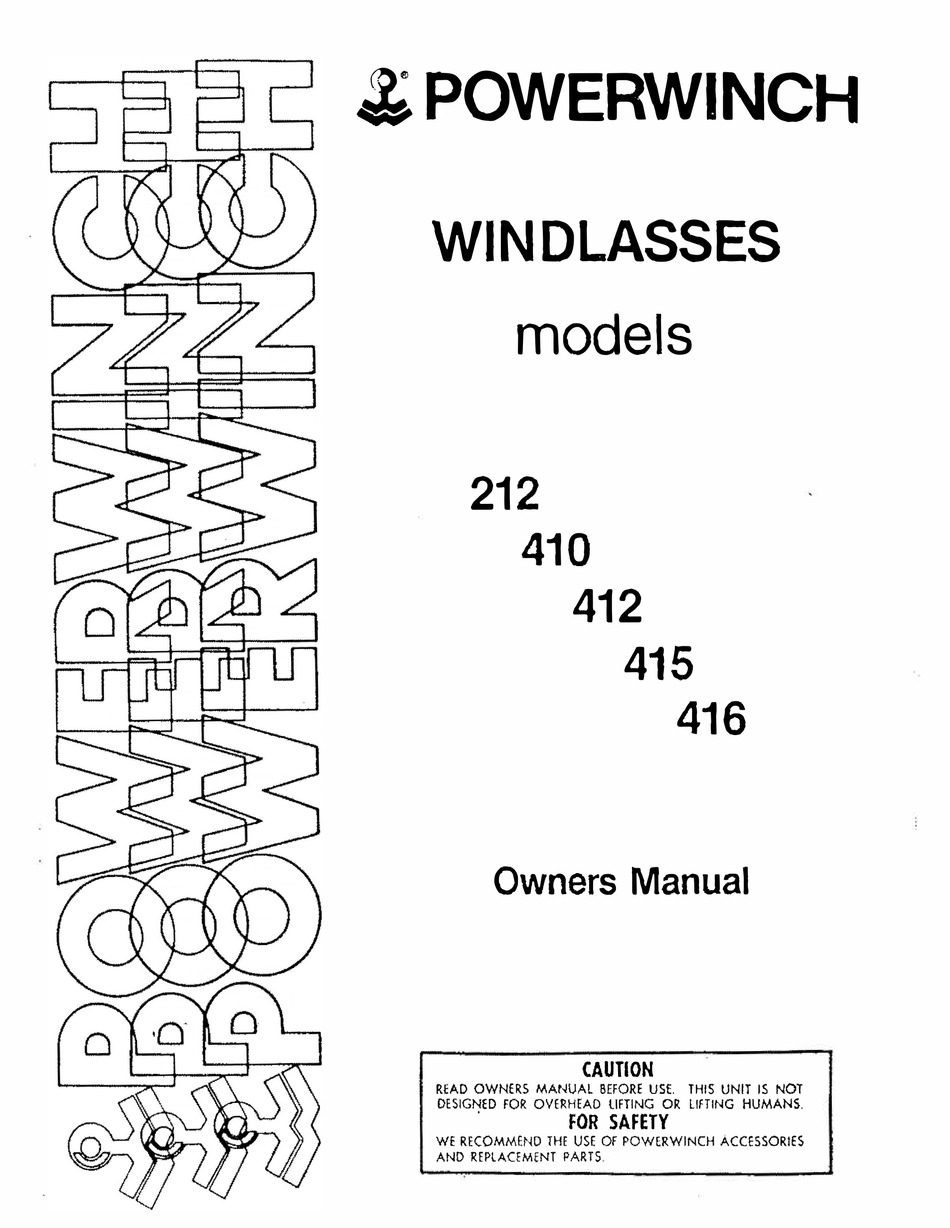

- Page 1 % POWERWINCH -4>4- WINDLASSES models Owners Manual CAUTION READ OWNERS MANUAL BEFORE USE. THIS UNIT IS NOT DESIGNED FOR OVERHEAD LIFTING OR LIFTING HUMANS. FOR SAFETY WE RECOMMEND THE USE OF POWERWINCH ACCESSORIES AND REPlAC!MfNT PARTS...
-
Page 2: For Safety
• Replace end seal on capstan • Recaulk base to case to prevent moisture from entering NOTE: Order Mo1ykote G and other replacement parts through local marine dealer or directly from POWERWINCH DIVISION, SCOTT FETZER CO., 2268 Fairview Blvd, Fairview, Tennessee 37602. NOTE: This unit. - Page 5 REPAIR PARTS LIST 212 QTY. USED DESCRIPTION Capstan seal 75900 518-18 nut 79715 Capstan 73701 Retainer 79047 Gear, front shaft drive assy. 71729 Thrust bearing washer 71615 Thrust bearing 71616 Thrust bearing washer 71614 Bearing 71605 10-32 x ½ self-tapping ss screws...
- Page 9 REPAIR PARTS LIST 415 QTY. DESCRIPTION USED 75900 Capstan seal 79715 518-18 nut 73702 Capstan Retainer 79047 71731 Gear, Front shaft drive assembly 71615 1-3/, ID x 3 OD thrust bearing washer 71616 Thrust bearing 71614 2" ID x 3¾" OD thrust bearing washer 71605 Bearing 79587...
- Page 11 REPAIR PARTS LIST 416 QTY. DESCRIPTION USED Capstan seal 75900 518-18 nut 79715 73702 Capstan Retainer 79047 Gear, front shaft drive assy. 71731 Thrust bearing washer 71615 Thrust bearing 71616 71614 Thrust bearing washer Bearing 71605 79587 10-32 screws 75902 Flat deck seal 79712 ½·20 nut...
- Page 12 For once a year lubrication your winch gears, use Molykote G gear lubricant.¼ oz. ALL PARTS MAY BE PURCHASED FROM YOUR LOCAL POWERWINCH DEALER, CATALOG HOUSE, OR PURCHASED DIRECT FROM OUR POWERWINCH PARTS DEPARTMENT. l!.iimitrd :ll111rrnntu For one (1) year lrom the date of purchase. Powerw1nch D1v1s1on w!ll repair or replace for the original purchaser any part or parts found upon examination by any authorized service center.
