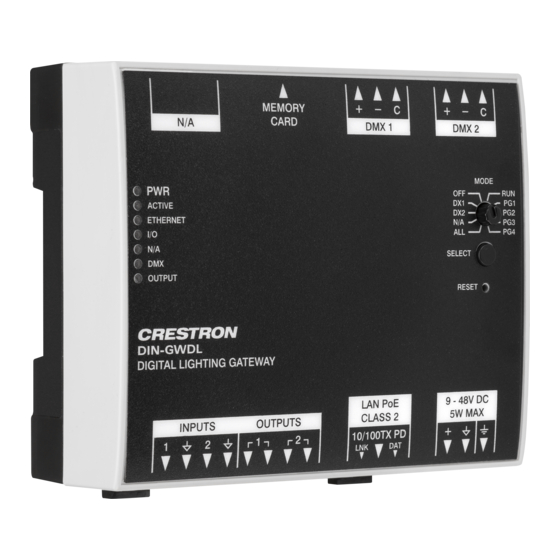

DIN-GWDL and DIN-GWDL-SPLTR
Digital Lighting Gateway, DIN Rail Mount

Product Manual
Crestron Electronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIN-GWDL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron DIN-GWDL

Summary of Contents for Crestron DIN-GWDL

  • Page 1   DIN-GWDL and DIN-GWDL-SPLTR Digital Lighting Gateway, DIN Rail Mount   Product Manual Crestron Electronics, Inc.
  • Page 2 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Contents Overview Crestron Home Color UI Circadian Rhythm Lighting Control SolarSync™ Sensor Compatibility DMX-C Supports up to 85 Compatible Light Fixtures Fast Commissioning Product Specifications DIN-GWDL Specifications Product Specifications Dimension Drawings DIN-GWDL-SPLTR Specifications Product Specifications Dimension Drawings Installation Mounting Make Connections...
  • Page 4 System Log Settings Watchdog Security Resources Crestron Support and Training Product Certificates iv • Contents Product Manual — Doc. 9096A...
  • Page 5   v • Contents Product Manual — Doc. 9096A...

  • Page 6: Overview

    Crestron light fixtures and Crestron compatible third-party light fixtures. Crestron Home Color UI Use the Crestron Home Color UI to easily control the tunable white and full color lighting loads. Adjust hue, saturation, intensity and color temperature. Create scenes to set the mood for entertaining or ensure the optimal setting for a professional conference call.

  • Page 7: Supports Up To 85 Compatible Light Fixtures

    Supports up to 85 Compatible Light Fixtures The DIN-GWDL has two DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures, for a total of 64 directly connected fixtures. Each added DIN-GWDL-SPLTR adds four additional DMX-C outputs, each of which supports up to 32 directly connected Crestron light fixtures and Crestron compatible third-party light fixtures.

  • Page 8: Product Specifications

    Product Specifications Product specifications for the DIN-GWDL and DIN-GWDL-SPLTR. WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. This section provides the following information: •  ...

  • Page 9: Din-Gwdl Specifications

    DIN-GWDL Specifications Product specifications for the DIN-GWDL. Product Specifications Supported Fixtures Crestron light fixtures Crestron compatible third-party light fixtures Data Storage Removable MicroSD Card (supplied) 9 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...
  • Page 10 Terminate all daisy chain runs with the termination resistor included with the fixtures; Terminate the connection to a DIN-GWDL-SPLTR with the 120 Ω termination resistor included with the DIN-GWDL-SPLTR between the + and - pins on the terminal block that connects to DMX IN INPUTS and OUTPUTS (1) 8-pin 5.18 mm terminal block, shared between INPUTS and OUTPUTS...
  • Page 11 (1) Red LED indicates that the device is actively controlling the lights Power 9-48VDC or PoE (IEEE 802.3af, Class 2); 5 W Max Environmental Temperature 32° to 122°F (0° to 50°C) Humidity 10% to 90% RH (noncondensing) 11 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...
  • Page 12 Width 4.23 in. (108 mm) Depth 1.73 in. (44 mm) Weight 0.44 lb (0.2 kg) Compliance FCC, IC, CE, and UL® listed To search for product certificates, refer to support.crestron.com/app/certificates. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 12...

  • Page 13: Dimension Drawings

    Dimension Drawings 13 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...

  • Page 14: Din-Gwdl-Spltr Specifications

    Connect to DMX 1 or DMX 2 of DIN-GWDL Termination: Terminate the connection to a DIN-GWDL-SPLTR with the 120 Ω termination resistor included with the DIN-GWDL-SPLTR between the + and - pins on the terminal block that connects to DMX IN OUT 1-4 (4) 3-pin 5.18 mm terminal blocks;...
  • Page 15 Width 4.23 in. (108 mm) Depth 1.57 in. (40 mm) Weight 0.44 lb (0.2 kg) Compliance FCC, IC, CE, and UL® listed To search for product certificates, refer to support.crestron.com/app/certificates. 15 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...

  • Page 16: Dimension Drawings

    Dimension Drawings Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 16...

  • Page 17: Installation

    Installation When installing the DIN-GWDL and DIN-GWDL-SPLTR, do not exceed the maximum fixture limits. Refer to System Considerations and Fixture Limits on page 20 for more information. Mount the device and make all necessary connections. The MODE rotary dial and SELECT button can be used to test connected light fixtures without a control processor.

  • Page 18: Mounting

    Mounting Mount the DIN-GWDL and DIN-GWDL-SPLTR onto a standard DIN rail (not included). NOTE: The RJ-45 adapters can cause interference with the enclosure or adjacent modules. When selecting mounting locations for the DIN-GWDL and DIN-GWDL-SPLTR, consider the extra space these adapters will require.

  • Page 19: Make Connections

    Make Connections Make device connections as shown in the following illustrations. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 19...

  • Page 20: System Considerations And Fixture Limits

    Consider the following: DIN-GWDL Maximum Light Fixtures: Up to 85   The DIN-GWDL supports up to 64 directly connected fixtures. DMX 1-2 outputs each support up to 32 directly connected fixtures.   The DIN-GWDL with DIN-GWDL-SPLTRs support up to 85 fixtures. OUT 1-4 outputs on the DIN-GWDL-SPLTR each support up to 32 directly connected fixtures.

  • Page 21: Wiring

    If the cable may come into contact with fixtures or other hot objects, use CAT5 STP cable with an appropriate jacket.   DMX-C lines cannot be split using a splitter cable or Y adapter. Use a DIN-GWDL-SPLTR instead.   If the CAT5 STP cabling may be repurposed in the future for an Ethernet network, maintain cable lengths less than 328 ft (100 m).
  • Page 22   If an obstruction cannot be avoided, a 12 in. (304 mm) or less length of Cresnet® cable be used between a DMX-C output of a DIN-GWDL and the DMX-C input of a DIN-GWDL-SPLTR.   Connect White to +.  ...

  • Page 23: Dmx-C Connections

    Using the included RJ-45 adapters, daisy chain light fixtures to DMX 1, DMX 2, and OUT 1-4 as shown below. DIN-GWDL Gateway Connected to Crestron Light Fixtures DIN-GWDL and DIN-GWDL-SPLTR Connected to Crestron Light Fixtures Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 23...

  • Page 24: Power

    DIN-GWDL-SPLTR: Connect a 9-48VDC power supply to the DIN-GWDL-SPLTR's 9- 48VDC port. Override Ports The Override ports of the DIN-GWDL enable the use of contact closures to control all connected light fixtures in the event of an emergency or network outage. 24 • DIN-GWDL and DIN-GWDL-SPLTR...
  • Page 25 NOTE: If nothing is connected to INPUT 2, enabling Override mode will force on all connected lights. Outputs OUTPUT 1 and OUTPUT 2 repeat the signals from the corresponding INPUT. These can be connected to an additional DIN-GWDL's INPUT or to another device's override inputs. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 25...

  • Page 26: Local Control

    Local Control Test and control connected light fixtures without a control processor to verify the system. Use the MODE rotary dial and SELECT to change the local test modes of the DIN-GWDL. Mode Dial with Select and Reset Buttons NOTE: PG3 and PG4 are reserved for future use. N/A has no function.
  • Page 27 DMX 1 channels to 255.   Tap SELECT to set all channels on DMX 1 to 0 or 255 (off or red).   Hold SELECT to ramp all DMX 1 channels up or down. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 27...
  • Page 28 (to a maximum of 100%).   Tap SELECT to turn all fixtures on and off. Factory Reset Press and hold RESET for five seconds to restore the DIN-GWDL to factory settings. 28 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...

  • Page 29: Configuration

    Configuration The DIN-GWDL is configured through the Crestron Home Setup App. For more details, see the Crestron Home manual. Set the MODE rotary dial to RUN and press SELECT for use with Crestron Home. A web configuration interface is provided with some basic functionality, but is not required for most installations.

  • Page 30: Accessing The Web Configuration Interface

    To access the web configuration interface:  1. Connect the DIN-GWDL to the network.  2. Use the Device Discovery tool in Crestron Toolbox™ software to discover the DIN-GWDL and its IP address on the network.  3. Select Web Configuration in Device Discovery or enter the control system IP address into a web browser.
  • Page 31 After logging in, the user is presented with multiple tabs. Web Configuration Interface Tabs To log out of the web configuration interface, click the user icon and select Log Out. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 31...

  • Page 32: Home

    Home The Home tab displays information about the DIN-GWDL. Pressing the Locate button will cause the DIN-GWDL's LEDs to flash. Home Tab Hardware This section displays general information about the DIN-GWDL, such as serial number, MAC Address, and Uptime. Project This section displays information about the program running on the DIN-GWDL.

  • Page 33: Log

    The Log tab displays system logs for the DIN-GWDL. Press Save to save any logs in a .txt file and Clear to clear them from the DIN-GWDL. To filter the logs:   Log Type: Select System, Project, Time, Output, IO, Trigger, and/or Controller API to filter log messages by type.

  • Page 34: Output

    NOTE: Multiple channels can be parked or unparked simultaneously. Separate the channels with commas or use a - to indicate a range of channels. For example, 1,3,10-13,15 will affect channels 1, 3, 10, 11, 12, 13, and 15. 34 • DIN-GWDL and DIN-GWDL-SPLTR Product Manual — Doc. 9096A...

  • Page 35: Configuration

    Factory Reset: Restore the unit to factory defaults. This will clear the user name, password, and all settings.   Reboot: Perform a software reboot.   Locate: LEDs on the DIN-GWDL will blink on and off until the Locate button is pressed again. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 35...

  • Page 36: Save Changes

    Watchdog The watchdog function automatically resets the DIN-GWDL in the event of a software crash as a result of a power brown-out or spike, nearby lightning strike, static discharge or other circumstance. To enable watchdog, click the checkbox.

  • Page 37: Security

    Status: The Configuration tab will be blocked and no changes can be made on the Output tab.  5. Click Save. Add User Screen Users can be edited by selecting Edit or deleted by selecting Delete. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 37...

  • Page 38: Resources

    Resources The following resources are provided for the DIN-GWDL and DIN-GWDL-SPLTR. NOTE: You may need to provide your Crestron.com web account credentials when prompted to access some of the following resources. Crestron Support and Training   Crestron True Blue Support  ...
  • Page 39 This page is intentionally left blank. Product Manual — Doc. 9096A DIN-GWDL and DIN-GWDL-SPLTR • 39...
  • Page 40   Product Manual — Doc. 9096A Crestron Electronics, Inc. 15 Volvo Drive, Rockleigh, NJ 07647 10/06/22 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
