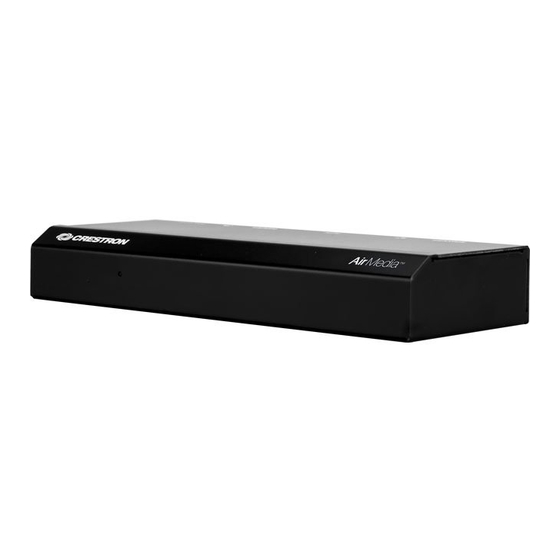

Crestron AM-100
AirMedia
Presentation Gateway
®
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirMedia AM-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron AirMedia AM-100

Summary of Contents for Crestron AirMedia AM-100

  • Page 1 Crestron AM-100 AirMedia Presentation Gateway ® Operations Guide...
  • Page 2 Crestron, the Crestron logo, AirMedia, Crestron Connected, and Crestron Fusion are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. App Store, iTunes, and Mac are either trademarks or registered trademarks of Apple Inc. in the United States and/or other countries. IOS is either a trademark or registered trademark of Cisco Technology, Inc.

  • Page 3: Table Of Contents

    Installation ........................1 Configuration ..........................3 System Status ......................6 Device Setup........................ 7 Network Setup ......................9 Crestron Services Setup ..................... 10 OSD Setup ......................... 13 SNMP Setup ......................15 Device Services ......................17 Change Password ...................... 17 Firmware Upgrade ..................... 18 Remote View Setup ....................

  • Page 5: Airmedia Presentation Gateway: Am-100

    Crestron AM-100 AirMedia Presentation Gateway ® AirMedia Presentation Gateway: AM-100 Setup Supplied Hardware A wall-mount bracket is included to mount the AM-100 to a surface. The hardware supplied with the AM-100 is listed in the following table. Supplied Hardware for the AM-100...
  • Page 6 AirMedia Presentation Gateway Crestron AM-100 Wall The AM-100 can be mounted using the included wall-mount bracket. Mounting Refer to the following illustration for installation instructions. Attach the Wall-Mount Bracket Attach the AM-100 to the wall-mount bracket using the screw and washer.

  • Page 7: Configuration

    AirMedia Presentation Gateway Configuration Make all connections as described in AM-100 Quickstart Guide (Doc. 7464) at www.crestron.com/manuals. The connected display device shows the AM-100 welcome screen. AM-100 Welcome Screen 1. Open a web browser on the computer, and navigate to the web address or the IP address that is displayed on the top left of the AM-100 welcome screen.
  • Page 8 AirMedia Presentation Gateway Crestron AM-100 Download Screen 2. Click Device Administration. The admin login screen is displayed. NOTE: Prior to displaying the admin login screen, the web browser displays a security warning message about the security certificate. It is safe to ignore this warning as long as the user verifies that the browser’s address bar indicates the correct IP...
  • Page 9 Crestron AM-100 AirMedia Presentation Gateway Admin Login Screen 3. Enter the admin password (the default password is “admin”) and click Login. The Device Administration menu showing the System Status screen is displayed. Device Administration Menu Showing the System Status Screen AirMedia Presentation Gateway: AM-100 •...

  • Page 10: System Status

    • Device Setup sets the AM-100’s output resolution, under-scan setting, and access code. • Network Setup sets the AM-100’s parameters for operating in a network environment. • Crestron Services Setup sets the AM-100’s parameters for ® operating in a Crestron network environment.

  • Page 11: Device Setup

    Crestron AM-100 AirMedia Presentation Gateway Device Administration Menu Showing the System Status Screen The System Status screen displays the device’s name (hostname), firmware version, network status (IP address, subnet mask, default gateway, and MAC address), and connection status. Device Setup Click Device Setup to configure the output resolution, under-scan setting, and access code.
  • Page 12 AirMedia Presentation Gateway Crestron AM-100 Device Administration Menu Showing the Device Setup Screen Code A code can be used to limit access to the AM-100. The code feature can be disabled, randomly generated, or fixed to a specific value. Select one of the following options from the Code section to specify how the access code is used: •...

  • Page 13: Network Setup

    Crestron AM-100 AirMedia Presentation Gateway Click Apply to apply any changes. Click Cancel to cancel. Output Resolution Select a resolution setting from the Output Resolution drop-down menu. Click Apply to apply any changes. Click Cancel to cancel. Under Scan Select an amount of under scan to be applied to the displayed image.

  • Page 14: Crestron Services Setup

    Click Apply to apply any changes. Click Cancel to cancel. Crestron Services Setup Click Crestron Services Setup to configure the AM-100 for operation in a Crestron network environment. 10 • AirMedia Presentation Gateway: AM-100 Operations Guide – DOC. 7463E...
  • Page 15 Crestron AM-100 AirMedia Presentation Gateway Device Administration Menu Showing the Crestron Services Setup Screen Crestron Control System The Crestron Control System section specifies the control system controlling the AM-100. AirMedia Presentation Gateway: AM-100 • 11 Operations Guide – DOC. 7463E...
  • Page 16 • IP ID identifies the AM-100 in the Crestron Fusion server’s program. Select the AM-100’s IP ID from the drop-down menu and click Apply. • Port is the port number used to communicate with the Crestron Fusion server. • Communication Status indicates the status of the communication link between the Crestron Fusion server and the AM-100.

  • Page 17: Osd Setup

    Crestron AM-100 AirMedia Presentation Gateway Click Apply to apply any changes. Click Cancel to cancel. NOTE: The Apply button does not affect changes made to the Source and Power Off Time Out settings. OSD Setup Click OSD Setup to specify a logo image to display and to display or hide the AM-100's connection information.
  • Page 18 AirMedia Presentation Gateway Crestron AM-100 Change Logo Image The Change Logo Image section is used to select the logo image on the AM-100 welcome screen. • Logo Image displays the file name of the logo image. If the default logo image is used, “Default” is displayed.

  • Page 19: Snmp Setup

    Crestron AM-100 AirMedia Presentation Gateway Display Option The Display Option section controls how the connection information is displayed. ⇒ Display IP address sets the AM-100 to display the IP address after the hostname. Select On and click Apply to display the IP address, or select Off and click Apply to hide the IP address.
  • Page 20 AirMedia Presentation Gateway Crestron AM-100 Device Administration Menu Showing the SNMP Setup Screen • The AM-100 supports SNMP versions 1, 2c, and 3. Select the version from the Version drop-down menu. • The AM-100 uses an IP filter for SNMP connections. When an IP address is specified in the Manager IP field, the device accepts an SNMP request only from that IP address.

  • Page 21: Device Services

    AM-100’s configuration screens. These pages can still be enabled by SNMP or the control system connection. However, if SNMP and Crestron Services are disabled as well, the AM-100 must be restored to the original factory settings to gain access to the configuration screens.

  • Page 22: Firmware Upgrade

    AirMedia Presentation Gateway Crestron AM-100 Device Administration Menu Showing the Change Password Screen Device Administration Perform the following to change the admin password: 1. Enter a new password in the Enter New Password field. 2. Enter the new password in the Confirm New Password field and click Apply.

  • Page 23: Firmware Upgrade

    Crestron AM-100 AirMedia Presentation Gateway Device Administration Menu Showing the Firmware Upgrade Screen Device settings can be imported from another device or exported to a file for use on another device. Export and Import System Configuration Settings Click Export to export the system configuration file.

  • Page 24: Remote View Setup

    AirMedia Presentation Gateway Crestron AM-100 NOTE: Firmware upgrades may take up to 30 minutes. NOTE: Ensure that all users are disconnected from the AM-100 before upgrading the firmware. NOTE: Use the AirMedia Firmware Update Utility (which is available for download from www.crestron.com/airmedia...

  • Page 25: Reset To Default

    Crestron AM-100 AirMedia Presentation Gateway controls remote view setting to require the presenter to allow remote viewing. Access Password Control The Access Password Control section allows the code that is displayed on the screen to control access to the device when using remote view.

  • Page 26: Reboot System

    AirMedia Presentation Gateway Crestron AM-100 Reboot System Click Reboot System and click Apply to reboot the AM-100. 22 • AirMedia Presentation Gateway: AM-100 Operations Guide – DOC. 7463E...

  • Page 27: Operation

    AM-100 over the network. NOTE: Crestron offers a stand-alone application for enterprise deployments. This application features additional connection methods and device management. For details, visit the Crestron website. NOTE: Mobile devices can share their content using the AirMedia app, ®...

  • Page 28: Run The Am-100 Client

    AirMedia Presentation Gateway Crestron AM-100 2. Click on the Download icon for the computer’s operating system and follow the instructions for installing the client software. NOTE: When used on a Mac, the AirMedia application must be run from within the disk image file. Do not drag the application out of the disk image file.

  • Page 29: Control The Presentation

    Crestron AM-100 AirMedia Presentation Gateway Control the Presentation Direct the presentation with the following controls: Stop showing the computer’s screen. Start showing the computer’s screen. Freeze the computer’s screen. Close the client application and the connection between the computer and the AM-100.

  • Page 30: Quad View

    AirMedia Presentation Gateway Crestron AM-100 • Projection Source (Windows ® operating system only) allows the user to share a secondary desktop. This is similar to the Extend mode in Windows for multiple displays. • Projection Quality improves the quality of the transmitted image but uses more bandwidth.

  • Page 31: View A Presentation Remotely

    Crestron AM-100 AirMedia Presentation Gateway Pop-up Menu 4. Click Quad View and select the shared desktop's quadrant on the display device. NOTE: If another computer is already sharing the selected position, the position is replaced by the newly shared desktop.
  • Page 32 AirMedia Presentation Gateway Crestron AM-100 2. Click Remote View. The shared desktop is displayed in the web browser as a web page. Remote View Web Page 3. Use the following buttons when viewing the AM-100’s output in a web browser.

  • Page 33: Moderator Controls

    Crestron AM-100 AirMedia Presentation Gateway Moderator Controls Moderator controls are used to determine which users can present to the display device and where their presented content is located on the display. Login 1. Open a web browser on a remote computer, and navigate to the web address or the IP address that is displayed on the top left of the AM-100 welcome screen.
  • Page 34 AirMedia Presentation Gateway Crestron AM-100 2. Click Layout Control. The moderator login screen is displayed. Moderator Login Screen 3. Enter the moderator password (the default password is “moderator”) and click Login. The Layout Control screen is displayed showing a list of connected presenters.

  • Page 35: Control The Display Layout

    Crestron AM-100 AirMedia Presentation Gateway Layout Control Screen Control the Display Layout 1. Click the Moderator check box to enable layout control. NOTE: If Moderator is enabled, the play control can be changed only by the user who is logged in as the moderator.
  • Page 36 AirMedia Presentation Gateway Crestron AM-100 Sets the selected presenter to display in a specific quadrant of the display. Click on the quadrant where the presenter’s content is to be displayed. Disconnects the selected presenter from the display. 32 • AirMedia Presentation Gateway: AM-100...

  • Page 37: Hardware Reset

    Crestron AM-100 AirMedia Presentation Gateway Hardware Reset In the event that the administration pages are disabled or the device is configured with a static IP address that is on a different subnet and the AM-100’s configuration screens cannot be accessed, the AM-100 must be reset to the factory settings.
  • Page 38 AirMedia Presentation Gateway Crestron AM-100 This page is intentionally left blank. 34 • AirMedia Presentation Gateway: AM-100 Operations Guide – DOC. 7463E...
  • Page 39 Crestron AM-100 AirMedia Presentation Gateway This page is intentionally left blank. AirMedia Presentation Gateway: AM-100 • 35 Operations Guide – DOC. 7463E...
  • Page 40 Crestron Electronics, Inc. Operations Guide – DOC. 7463E 15 Volvo Drive Rockleigh, NJ 07647 (2036012) Tel: 888.CRESTRON 01.16 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
