Crestron AM-101 Quick Start Manual

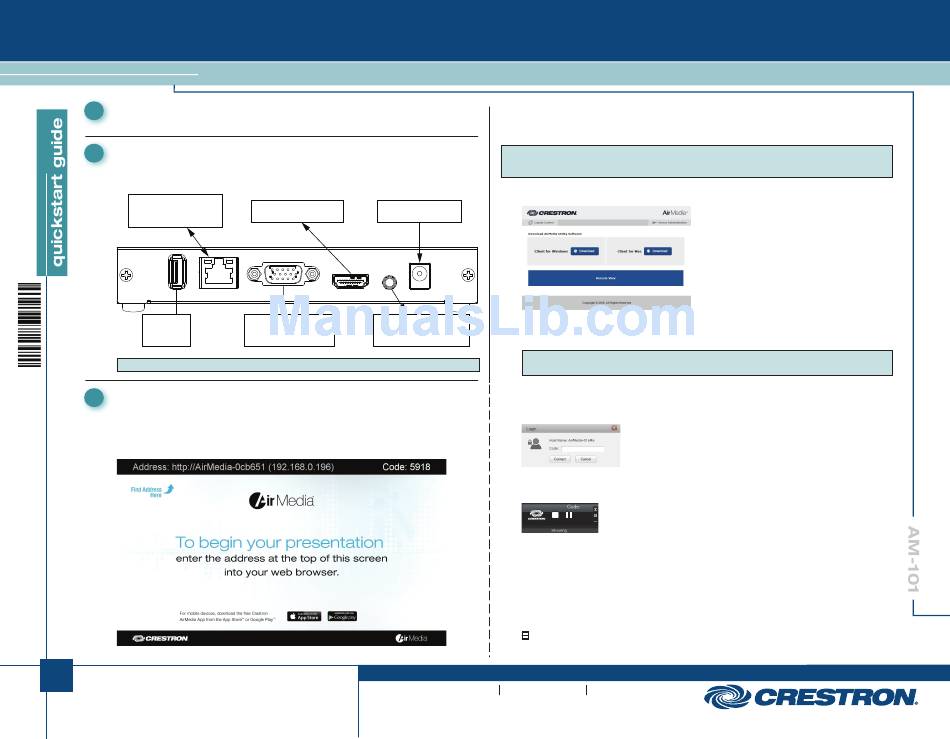

AM-101
AirMedia
Introduction
1

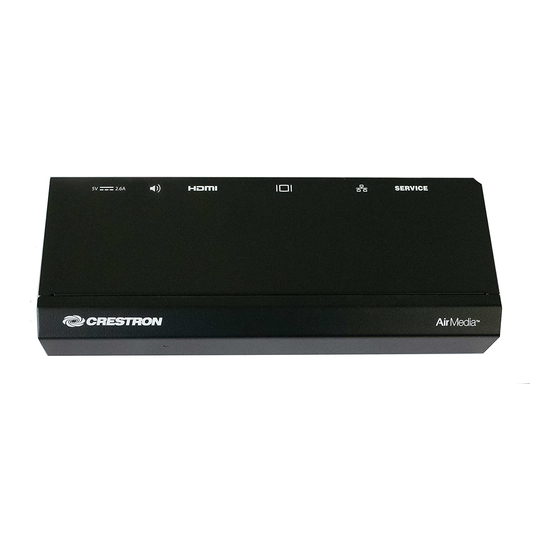

The AirMedia ® presentation gateway delivers a simple, low-cost, wireless HD presentation solution.
Hardware Hookup
2
Make the necessary connections as called out in the illustration that follows. When making
connections to the AM-101, use Crestron
after all connections have been made.
LAN:
10BASE-T/100BASE-TX
Ethernet to Lan
SERVICE:
Not Used
NOTE: Typical installation uses only the HDMI
Share a Presentation
3
This section provides instructions on sharing a desktop on a display device. For instructions on
remotely viewing a shared desktop, refer to section
Make all connections as described in "Hardware Hookup" in section
device shows the AM-101 welcome screen.
1
For details, refer to the AM-101 Operations Guide,
Doc. 7918.
QUICKSTART DOC. 7910A (2047098)
Presentation Gateway
®
power supplies for Crestron equipment. Apply power
®
HDMI OUT:
® 5V 2.6A:
To Display's HDMI Input From AC Power Pack
VGA OUT: AUDIO OUT:
To Display's VGA Input To Display's Audio Input
(Use with AUDIO OUT) (Use with VGA OUT)
OUT or the VGA OUT-AUDIO OUT connection.
®
on page 2.
∫
. The connected display
∏
www.crestron.com
05.16
Specifications subject to
change without notice.
Download the Client Application
The AM-101 uses a client application to share a PC or Mac
The computer should be able to access the AM-101 over the network.
NOTE: Mobile devices can share content using the AirMedia app, which is available for iOS
Android™ devices. Download the latest version from the App Store
Google Play™ store.
1. Open a web browser on the computer, and navigate to the web address or IP address displayed on
the top left of the AM-101 welcome screen. The download screen is displayed.
2. Click the Download icon for the computer's operating system to download the client application. The
client application requires no installation. The application can either be saved and run locally, or run
from the Internet.
NOTE: When used on a Mac, the AirMedia client application must be run from within the disk
image file. Do not drag the application out of the disk image file.
Share the Computer Desktop
Once the client application is downloaded, content can be shared.
1. Run the client application. The Login screen is displayed.
2. Enter the code displayed on the AM-101 welcome screen in the Code field and click Connect. The
client establishes a connection between the computer and the AM-101 while displaying the
presentation control screen on the computer.
5808
The contents of the computer screen are shown on the display connected to the AM-101.
3. Direct the presentation with the following controls:
Stop showing the computer's screen.
A
Start showing the computer's screen.
H
Freeze the computer's screen.
b
X Close the client application and the connection between the computer and the AM-101.
Display a pop-up menu of additional options. Refer to "Configure Operation" on page 2.
– Minimize the presentation control screen.
