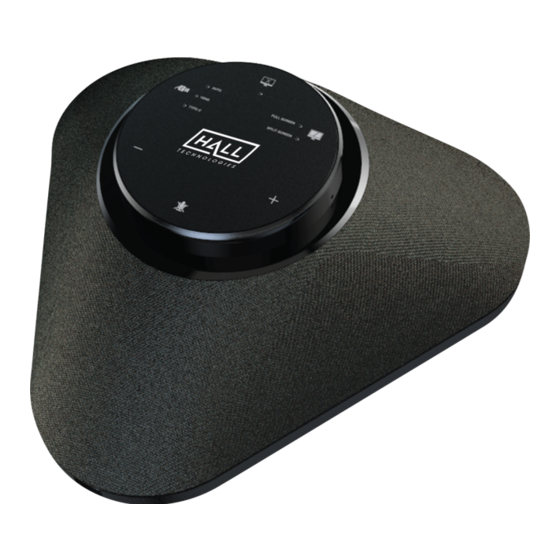

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com HT-ODYSSEY BYOD Conference Speakerphone with presentation switch and wireless casting User Manual Version: 1.0 Hall Technologies November 8, 2022 Page 1 of 30...
- Page 2 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Hall Technologies November 8, 2022 Page 2 of 30...
-
Page 3: Table Of Contents
Lock Button .......................... 26 Welcome Menu – Custom Web UI Logo ................26 Guide Screen ........................26 Firmware Upgrade ....................... 26 System ..........................27 Firmware Version ......................... 27 Troubleshooting ..........................28 Specifications ..........................29 Hall Technologies November 8, 2022 Page 3 of 30... -
Page 4: Introduction
4K@30Hz, while through USB 3.0 Display-Link technology, it can support resolutions up to 1080P@60Hz. With a 360-degree 4x Mic array that picks up sound from any angle, including echo cancellation, active background noise reduction and speech enhancement, HT-ODYSSEY offers excellent meeting performance. FEATURES Ÿ... -
Page 5: Package Contents
Ÿ 1 x AC Power Cord with AU Pins Ÿ 1 x USB Type-C to Type-C Cable with Type-C to USB 3.0 Type-A Adapter Ÿ 1 x Cable Fixing Bar (with Screws) Hall Technologies November 8, 2022 Page 5 of 30... -
Page 6: Panel Description
Panel Description Hall Technologies November 8, 2022 Page 6 of 30... - Page 7 Ÿ USB-B: Connect to the USB host device using a mini USB to USB Type A 17&18 HDMI IN &USB-B cable. Note: USB-B is bound with HDMI IN. USB 3.0 Connect to a USB Device. USB 3.1 Gen1: 5Gbps USB-C USB PD: 60W Max Hall Technologies November 8, 2022 Page 7 of 30...
-
Page 8: Applications
3. When switching the scenario, a device reboot is needed to apply the settings. (Using Web UI or API commands to switch the scenario, refer to “Web UI” section or the separate document “API Command Set HT-ODYSSEY”.) Note: After the speakerphone is connected to a laptop using the included USB-A to USB-B Mini cable, the speakerphone can be detected by the system. -
Page 9: Key Functions
The device supports full screen and split screen, as shown in the following figure. 1. When BYOD is set to OFF, the HT-ODYSSEY only works as full screen, and can switch sources between HDMI IN /USB Type-B / USB Type-C and HT-Voyager and will follow the rule: “Last- in-first-out”:... -
Page 10: Screen Mirroring
ð Soft AP SSID: this should be the same as the device name which can be obtained from the OSD at the upper right corner of the display screen. By default, it is set as HT-ODYSSEY. ð Password: this password can be set through Web UI or Telnet API and can be obtained from the OSD at the bottom right corner of the display screen. - Page 11 HT-ODYSSEY 3. HT-ODYSSEY now displays your iPhone’s screen. 4. To disconnect iPhone from the device: click Stop Mirroring, the display stops displaying your iPhone’s screen. HT-ODYSSEY Hall Technologies November 8, 2022 Page 11 of 30...
-
Page 12: Screen Mirroring Over Smart View
ODYSSEY device name in the search result and the device will output the mobile screen. 3. Screen mirroring Miracast For Windows 10 PC: 1. Enable the WLAN feature of your PC. 2. Click the icon on bottom right of the screen to open Action Center. Hall Technologies November 8, 2022 Page 12 of 30... - Page 13 3. Click Connect. Hall Technologies November 8, 2022 Page 13 of 30...
-
Page 14: Screen Mirroring Over Ht-Voyager
4. Click the HT-ODYSSEY device name in the search results. 5. The HT-ODYSSEY device displays the PC’s content once your PC is connected to the device successfully. 6. To disconnect the PC from the device, click Disconnect. Note: Ÿ The icon and interface of the Miracast function may vary on different computers. -
Page 15: Osd
The device supports OSD (On Screen Display) to convey basic information, including the video source’s information, access code, device name, IP address, and Wi-Fi password. The following are two different OSD examples. Example 1: Full Screen Mode: HT-ODYSSEY IP. 192.168.9.46 WiFi Pwd:12345678 Hall Technologies... - Page 16 Example 2: Split Screen Mode: HT-ODYSSEY IP. 192.168.9.46 WiFi Pwd:12345678 Note: When the device outputs the Guide Screen, the OSD will be displayed continuously until the • countdown timer reaches zero. When the device outputs video input sources, the OSD will be displayed for 10 seconds and •...
-
Page 17: Web Ui
4. Input password (default password: admin) and click Login to enter the main page of Web UI. The Web UI main page consists of four tabs: General, Video, Audio and Advanced Setting. Hall Technologies November 8, 2022 Page 17 of 30... -
Page 18: General Page
Static mode is selected. Set DNS server manually for the switcher to ensure normal network DNS Server 2 communication. Apply Click to apply setting changes. Hall Technologies November 8, 2022 Page 18 of 30... -
Page 19: Wi-Fi Settings
Note: Before you use this feature, ensure the soft AP function is enabled. Configure soft AP password. Soft AP Password Note: The soft AP password must be 8~20 characters in length, including letters, numbers, “_” or “-”. Hall Technologies November 8, 2022 Page 19 of 30... -
Page 20: Byod
When “Auto” is checked, the device randomly generates a four-digit access code in the following cases: Auto The device switches to Guide Screen. Ÿ The device reboots. Ÿ Apply Click to apply setting changes. Hall Technologies November 8, 2022 Page 20 of 30... -
Page 21: Rs323 Command For Display Control
Hex or Text Sets the type of commands, using either hexadecimal or string text. Display On / Off Enter the display on and display off commands. Apply Click to apply setting changes. Hall Technologies November 8, 2022 Page 21 of 30... -
Page 22: Standby
1 minute, the countdown timer for device standby begins; when the timer ticks to zero, the device enters standby mode. Note: If the connected display doesn’t support CEC or isn’t correctly set with Hall Technologies November 8, 2022 Page 22 of 30... -
Page 23: Video
Follow: Set the output HDCP of HDMI Out to follow the HDCP capability of the Ÿ Output HDCP video input. Ÿ HDCP 1.4: Set the output HDCP of HDMI Out to HDCP 1.4. By default it is set as Follow. Hall Technologies November 8, 2022 Page 23 of 30... -
Page 24: Video Mute
MANAGE ALIAS UI Element Description Video Source Displays the video source name. Alias Enter a name to change the video source name to a new one. Apply Click to apply setting changes. Hall Technologies November 8, 2022 Page 24 of 30... -
Page 25: Advanced Setting
LOGIN PASSWORD UI Element Description Set a new login password. Login Password Note: The new password must be 4 to 16 characters in length, alphanumeric only. Apply Click to apply setting changes. Hall Technologies November 8, 2022 Page 25 of 30... -
Page 26: Lock Button
LOCK BUTTON UI Element Description On: This locks the buttons on the top panel of the HT-ODYSSEY, disabling user control. Off: This unlocks the buttons for user control. Lock Button NOTE: when in locked mode the HT-ODYSSEY will beep when buttons are pressed and the outside surrounding LED will light up red in that quadrant of the button press. -
Page 27: System
Press and hold the Mic Mute & Power buttons on the top panel for 5 seconds. When this Factory Default command is received all LED lights will flash quickly two times and the HT-ODYSSEY will factory reset. Send the API command “gbcontrol --reset-to-default”. (For more information, see the separate API document.) -
Page 28: Troubleshooting
Troubleshooting 1. A display is connected to the HDMI out of the HT-ODYSSEY but there is no video shown on the display. a. Confirm the HDMI input of the display is correctly selected b. Confirm the connected source is sending video to the HT-ODYSSEY (i.e. verify laptop is in duplicate or extend mode) c. -
Page 29: Specifications
DC 24V 5A Charging via Type-C Port 60W (Max) Power Consumption 89W (Max) Device Dimension (W x H x D) 267.3mm x 105.5mm x 232mm/10.52” x 4.15” x 9.13” Product Net Weight 1.06kg/2.33lbs Hall Technologies November 8, 2022 Page 29 of 30... - Page 30 © Copyright 2022. Hall Technologies All rights reserved. 1234 Lakeshore Drive, Coppell, TX 75019 halltechav.com / support@halltechav.com (714)641-6607 Hall Technologies November 8, 2022 Page 30 of 30...
