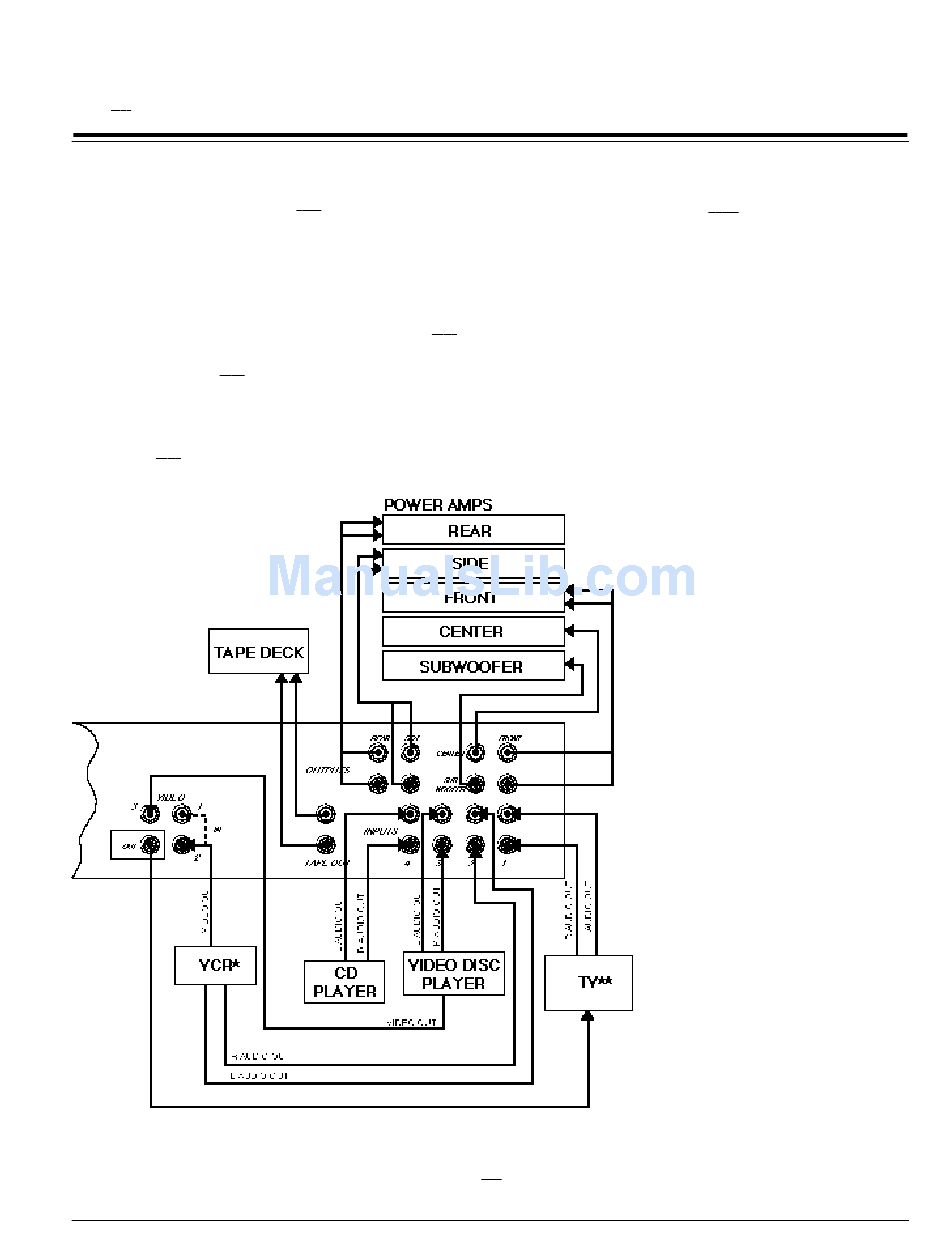

If there are four or fewer sources to be used in the system, they can each be
connected directly to the CP-3
1 for television, Input 2 for VCR, Input 3 for video disc and Input 4 for CD
player or turntable (output through a preamp). Since Input 4 is audio only,
the video output will default to the video signal from Input 1. This feature
allows TV or other video source viewing while different audio is playing.
Connect your main stereo amplifier to the CP-3
nect any additional amplifier/speaker combinations to the remaining
outputs on the CP-3 : side amplifiers to the SIDE outputs, rear amplifiers
PLUS
to the REAR outputs, center-channel amplifier to the CENTER output and
the subwoofer amp to the SUB WOOFER output. If you are using THX-type
dipolar surround speakers, the amplifier driving them should be connected
to the CP-3 PLUS SIDE outputs.
* In this configuration, use a Y-connector to hook the VCR to Video 1 as well if its tuner is
used instead of the TV tuner.
** In this configuration, select the TV's video input to see the CP-3
PLUS inputs. A typical system might use Input
PLUS FRONT outputs. Con-
PLUS
on-screen display.
Connection
Connecting the
PLUS
CP-3 as a preamp
15
