Front Panel - Lexicon LDD-1 User Manual

NOTE: When power is off, the LDD-1 automatically
outputs the COAXial digital input.

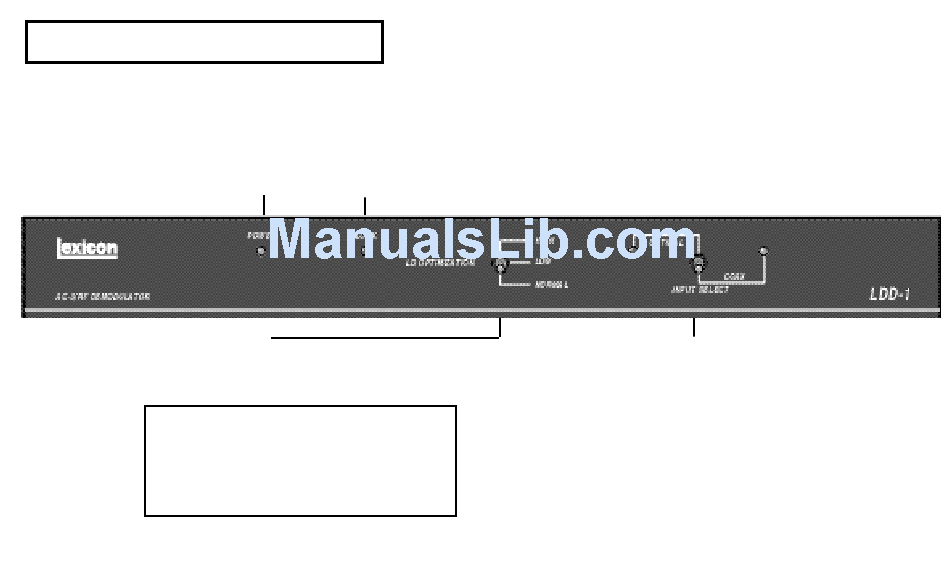

POWER
This LED will light whenever power to
the unit is supplied and enabled.
LD OPTIMIZATION
3-position switch which minimizes signal errors, pro-
viding optimal timing for specific brands of laser disc
players.
High
Low
Normal
LOCK
This LED will light whenever the unit
senses an AC-3/RF signal. When no such
signal is present, the LED will remain off,
and the INPUT SELECT LED will light.
Recommended Settings
Panasonic, Pioneer CLD-97 (MSB modified
version), Runco
Denon, Enlightened Audio Designs, Pioneer
LD-S2 (MSB modified version)
Marantz, Mitsubishi, McIntosh, MSB, Theta,
Pioneer (including Elite), Yamaha
2
INPUT SELECT
2-position switch for selection of the type of NON-AC-3/
RF digital output you are using from your laser disc
player.
2
