Point Mobile PM85 Quick Start Guide

Package Contents

• PM85
• AC/DC Adapter (5V 2A)
• USB Type-C Cable
• AC Plug Heads
• Battery
• LCD Protection Film
• Quick Start Guide
• Hand Strap

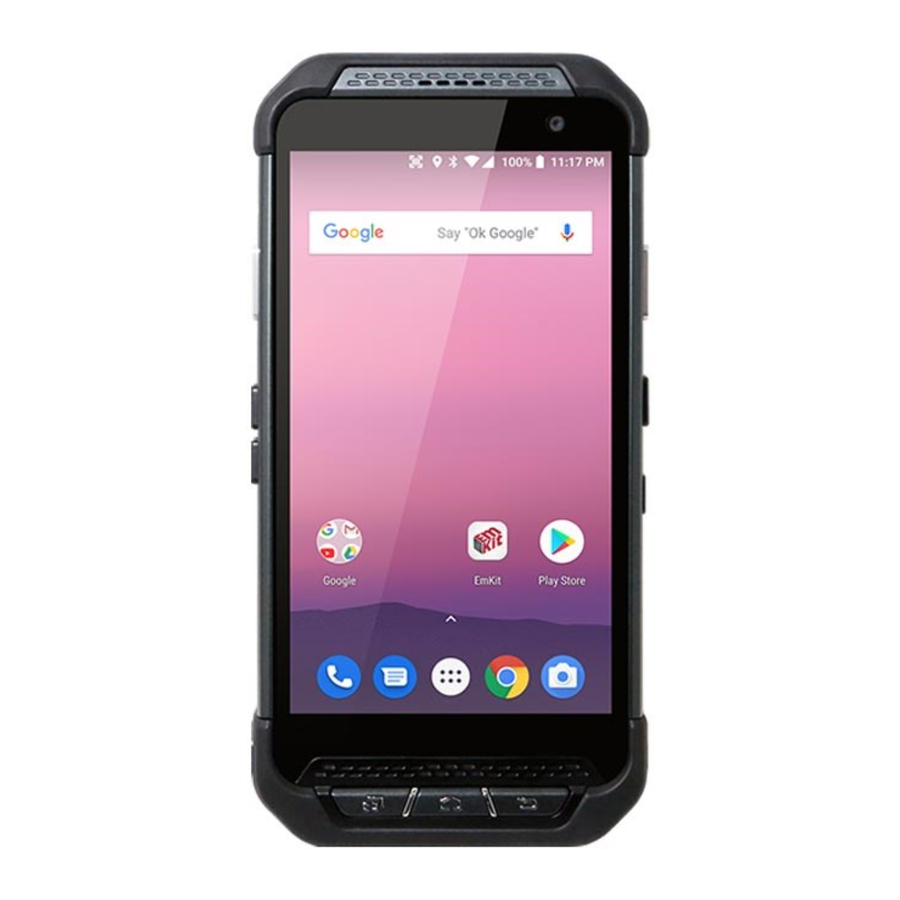

Device Layout

Hard Keys

Recent Apps Key

• Press to see recently used apps.

Home Key

• From any apps or screens, press to return to the Home screen.

Back Key

• Press to go back to the previous screen, or to close a dialog box, options menu, notification panel, etc.

Removing Battery Cover

1. Push down the battery cover lock.


   2. Lift up the battery cover to open.

Inserting Battery

1. Insert battery from the top first, then put in the bottom.


2. Insert the battery cover from the bottom first.


Installing SIM-SAM/Micro SD Card

Installing SIM-SAM card/Micro SD card
You must insert your SIM card to make phone calls. Please turn the device off before inserting or removing the SIM card.

1. Remove the Battery Cover and Battery.
2. Lift up the SIM rubber.
3. Insert the SIM-SAM/Micro SD card into the slot, with the gold plate facing down. Make sure that it is inserted correctly.
4. To remove the card, repeat step1 and step2, then remove the card out of the slot.

• Your device only supports Micro SIM and SAM cards. Do not attempt to insert other SIM or SAM types such as "Nano", this may cause damage to your device. If you have to use different SIM card types, please use a "SIM adaptor".
• Device supports storage extension up to 32GB with micro SD card.

Charging the PM85

1. Insert USB connector into the adapter and connect to an electrical socket to charge.
2. LED indicator will display charging status.

1. Always use an original charger and cable from the Point Mobile. Other chargers and cables may damage the PM85.
   In addition, make sure connector, charger, cables are not wet.
2. You can also charge the device with optional accessories such as single or dual slot cradles.

Accessories

Standard Accessories

5V 2.0A AC/DC Adapter

AC Plug (US/EU/UK)

Standard Battery (2,900mAh)

Extended Battery (5,800mAh)

Hand Strap

USB Type-C Cable

LCD Protection Film

Optional Accessories

SSC (Single-Slot Cradle)

SEC (Single-Slot Ethernet Cradle)

4SBC (4-Slot Battery Charge)

2SC (Dual Slot Cradle)
*Up to three dual slot cradle can be linked to charge six devices at a time.

Gun Handle

RFID Gun Handle

Stylus Pen

Getting Started

Turning the device on and off

• Press the Power button to turn on the device.
  After a few seconds, device will turn on.
• Press and hold the Power button for a few seconds and tap 'Power off' on the screen options.

Set up

Start with setting the input language, google account, GPS, etc., when the device is turned on for the first time.

Home screen items

Google, Android, Google Play and other marks are trademarks of Google LLC.

Status & Notification Icons

Status icons

	EDGE connected		Strong signal
	GPRS connected		Good signal
	3G connected		Weak signal
	LTE connected		Connection issue
	No SIM card installed		No data connection
	Airplane mode		Hotspot enabled
	Data communication
	Wi-Fi turned on		Connected to a Wi-Fi network
	Bluetooth turned on		Connected to a Bluetooth device
	Battery is full		Battery is partially drained
	Battery is low		Battery is very low
	Battery is charging
	Location service turned on		Using location service
	Speaker phone tuned on		Headset with MIC connected
	Vibrate mode		Phone mic is mute

Notification icons

	Missed call		New SMS or MMS message
	New Email		Connected to VPN network
	Upcoming event		Alarm is set
	App update available		Screenshot captured
	Preparing SD card		SD card removed, unexpectedly
	OTG device connected
	File uploaded		File downloaded
	File copied
	Scanner turned on		USB connect mode selection
	There are more notifications		Other input method available

Reset the PM85

Force shutdown

Press and hold the Power button for at least 8 seconds to power off or hold it longer to restart.

Factory reset

Follow the process by tapping the next button to complete factory reset.

Settings -> System -> Reset options -> Erase all data (factory reset) -> RESET PHONE -> ERASE EVERYTHING

Please note, all apps and data in the internal storage will be deleted and restored to factory settings and this process cannot be undone.

• For more details of product information and user guide, please refer to our website (www.pointmobile.co.kr)
