User Manual

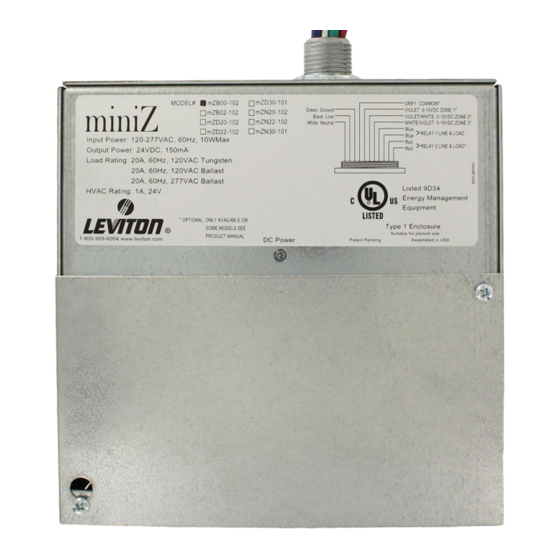

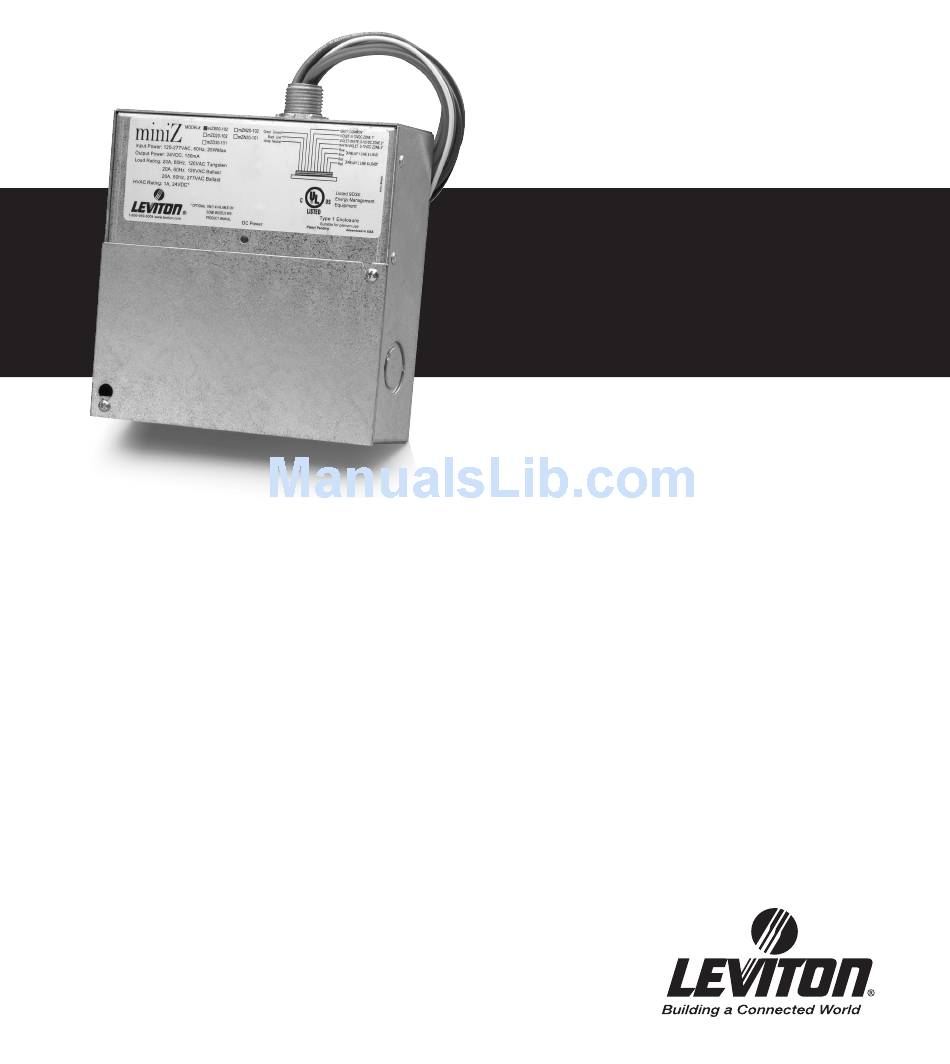

Congratulations on purchasing the miniZ Daylight
Harvesting Controller. The miniZ is designed to be
easy to install and configure with a few simple steps.
Simplest Install Steps:
1. Physically install unit and any peripherals
2. Terminate power & control wiring
3. Enable AutoCal & Auto Burn-In
4. Power up system
5. Installation & configuration complete!
Supplement this guide with the full installation manual
provided for more advanced applications.
miniZ
Quick Start Guide
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Leviton miniZ MZB00-102
Summary of Contents for Leviton miniZ MZB00-102
- Page 1 Congratulations on purchasing the miniZ Daylight Harvesting Controller. The miniZ is designed to be easy to install and configure with a few simple steps. Simplest Install Steps: 1. Physically install unit and any peripherals 2. Terminate power & control wiring 3.
- Page 2 1/2" nipple for convenient Control Input: US Models 120VAC & 277VAC terminals, Canadian Models 120VAC & 347VAC terminals connection to junction box Neutral Circuit 1 Line Circuit 1 Load Zone 1 Output (0-10V)* Circuit 2 Line Circuit 2 Load Zone 2 Output (0-10V)* Zone 3 Output (0-10V)* Emergency Input Also can be configured...
- Page 3 miniZ All Models Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION...
- Page 4 Step 2: Refer to the Quick Connection Guides found on pages 11-15 of this guide to connect the line voltage and low voltage circuits. Select the diagram based on the model you have purchased. Note: The dimming models have the 0-10V control output wires leaving the miniZ controller through the same nipple as the supply and load circuit wires.
- Page 5 Windows along exterior wall Zone #1 receives most effect from daylight Zone #2 receives moderate effect from daylight Zone #3 receives least effect from daylight Typical Classroom 3-Zone miniZ Application Photocell 120/277v miniZ Wall Mount Occupancy Sensor...
- Page 6 Step 3: Connect the photocell, occupancy sensor (if used), and the wall station control per the Quick Connect Guides. Note: The two zone MZD20 can have two separate wall station controls (see manual) to operate each zone independently in the manual mode only. If only one wall station control is used, jumper the two switch input terminals to control both zones.
- Page 7 3-zone miniZ Application 2000 MZ-3 2000 MZ-2 MZ-1 ZD31 Fixture Types 105W 0-10V Flourescent...
- Page 8 miniZ Application 1000 1000 MZ-1 ZD22 MZ-2 Distribution Panel Fixture Types 135W 0-10V Flourescent...
- Page 9 Dual Room miniZ Application 1000 1000 MZ-1 ZD22 MZ-2 Distribution Panel Fixture Types 135W 0-10V Flourescent...
- Page 10 Step 5: In a closed loop configuration, move the Auto-Cal switch to the ON position as shown in the manual to activate. Note: This feature operates the luminaires at full output for a period of 24 hours. During this time, the miniZ will record the lowest foot-candle reading from the photocell and record that value as the target illumination.
- Page 11 Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION MODELS: MZB00-102 & MZB00-C02...
- Page 12 miniZ Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION MODELS: MZB02-102 & MZB02-C02...
- Page 13 miniZ Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION MODELS: MZD20-102 & MZD20-C02...
- Page 14 miniZ Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION MODELS: MZD22-102 & MZD22-C02...
- Page 15 miniZ Quick Configuration Guide REFER TO MANUAL FOR ADVANCED SETUP AND OPERATION MODELS: MZD30-102 & MZD30-C02...
- Page 16 Leviton Manufacturing Co., Inc., Lighting Management Systems Division 20497 SW Teton Ave, Tualatin, OR 97062-8812 USA PO Box 2210, Tualatin, OR 97062 USA US Customer Service : (800) 736-6682 Fax: (503) 404-5594 US Tech Support: (800) 959-6004 Visit our Website at: http://www.leviton.com/LMS...
