Aansluiting microfoon/luidspreker unit

Connecting the microphone loudspeaker unit

Brancher le pupitre micro/haut-parleur

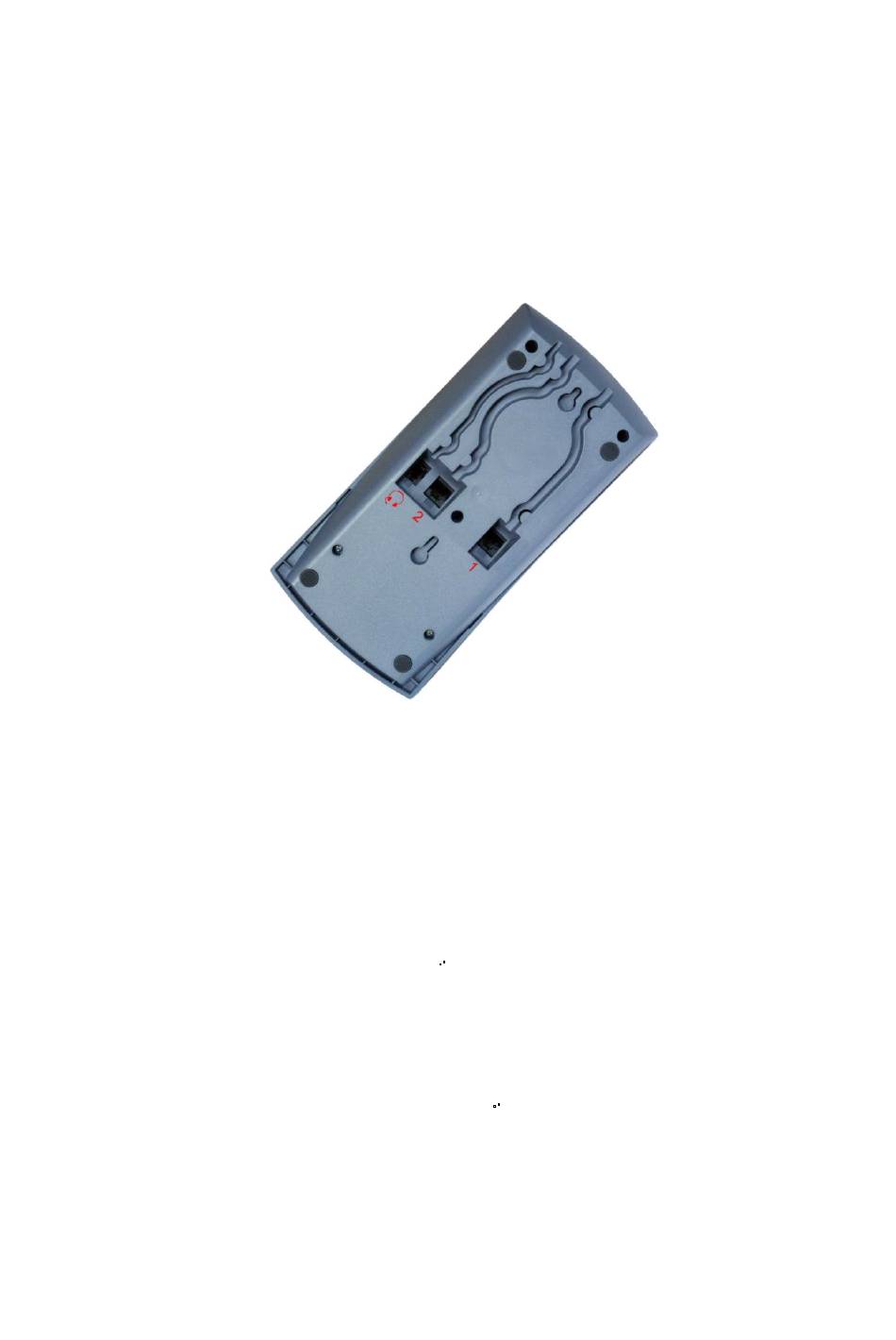

Sluit de microfoon/luidspreker unit aan met de Centrale Eenheid bij connector 1
NL
(noodzakelijke aansluiting).
Connector 2 met de Centrale Eenheid aansluiten.
Deze aansluiting is alleen noodzakelijk, wanneer aan de microfoon/luidspreker unit
een headset/handset aangesloten wordt. Aan connector kan een headset/ handset
worden aangesloten.
Link the microphone loudspeaker unit with the central unit at jack 1 (indispensable
E
connection).
Plug the cable into jack 2 if the microphone loudspeaker unit is configurated for
headset/handset operation.
Connect the headset/handset at jack
Brancher le câble sur prise 1 (indispensable), reliant le pupitre micro/hp avec
F
l´unité centrale.
Brancher le câble sur prise 2 au cas où le pupitre micro/hp est muni d´un
micro-casque ou combiné.
Brancher le micro-casque/combiné sur prise
4
