Installation Instructions

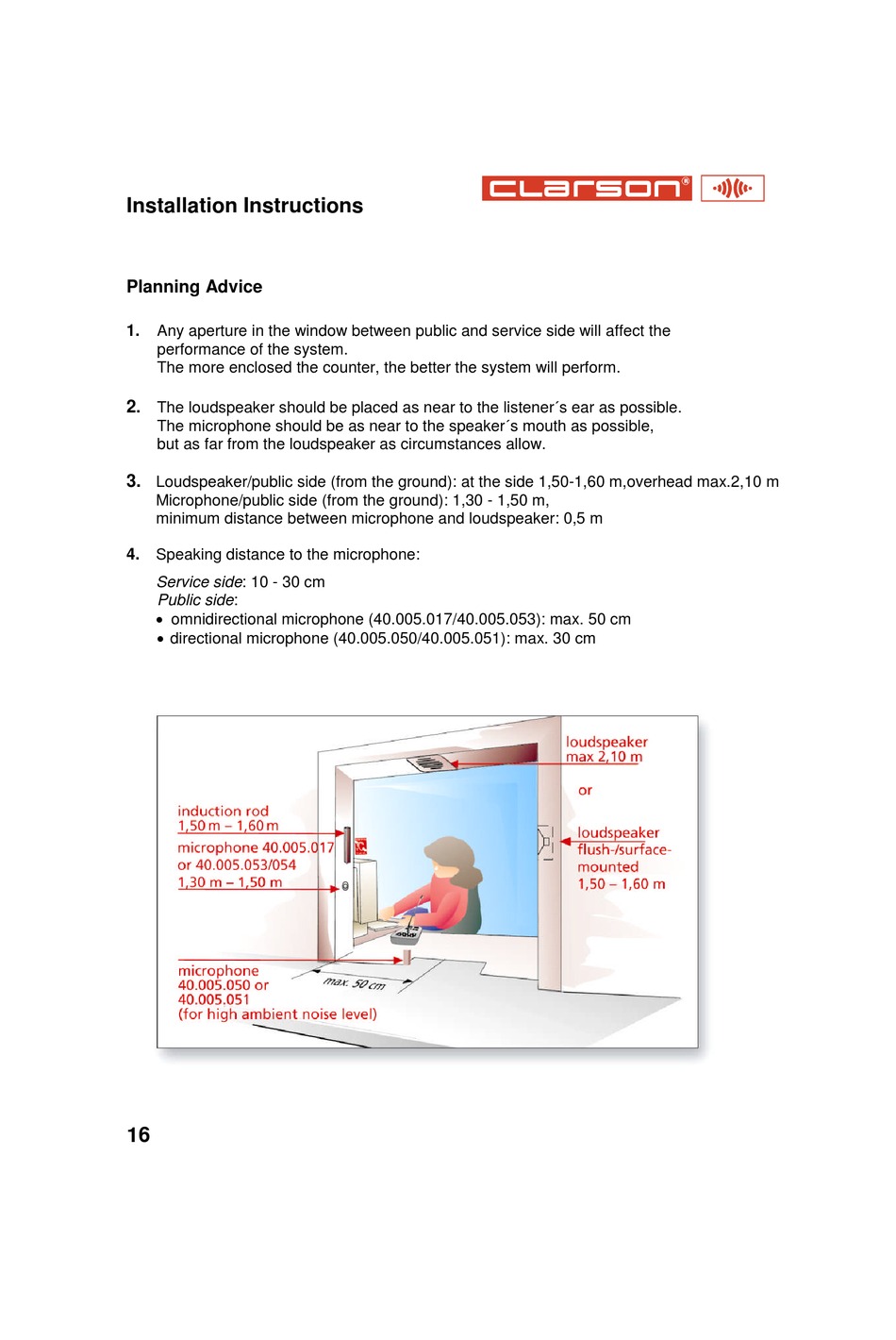

Planning Advice
1. Any aperture in the window between public and service side will affect the
performance of the system.
The more enclosed the counter, the better the system will perform.
2
. The loudspeaker should be placed as near to the listener´s ear as possible.
The microphone should be as near to the speaker´s mouth as possible,
but as far from the loudspeaker as circumstances allow.
3.
Loudspeaker/public side (from the ground): at the side 1,50-1,60 m,overhead max.2,10 m
Microphone/public side (from the ground): 1,30 - 1,50 m,
minimum distance between microphone and loudspeaker: 0,5 m
4. Speaking distance to the microphone:
Service side: 10 - 30 cm
Public side:
omnidirectional microphone (40.005.017/40.005.053): max. 50 cm
 directional microphone (40.005.050/40.005.051): max. 30 cm
16
