IVECO Daily
Art. 852701 (H2)

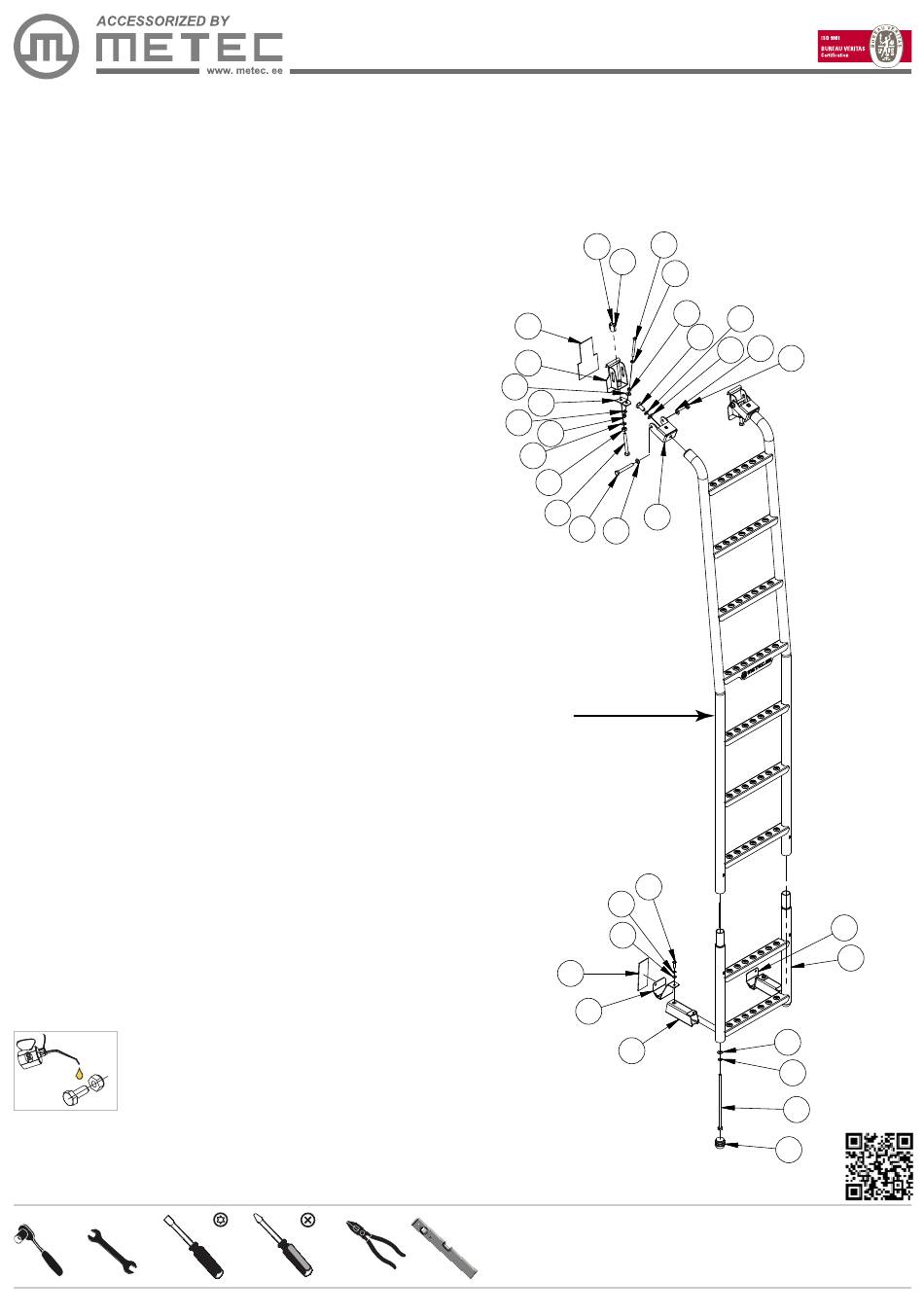

Redeli täienduskomplekt | Ladder extension, mounting set | Выдвижение лестницы, монтажный набор |
Leiterverlängerung, Befestigungssatz
1. Lisamoodul / additional module / дополнительный
модуль / Zusatzmodul
2. Kronstein / bracket / kронштейн / Konsole
3. Klamber / clamp / зажим / Schelle
4. Kronstein / bracket / kронштейн / Konsole
5. Klamber / clamp / зажим / Schelle
6. Klamber / clamp / зажим / Schelle
7. Puks / bushing / буксa / Buchse
8. Fiksaator / fixer / фиксатoр / Fixierer
9. Kompensaator / compensator / компенсатор /
Kompensator
10. Kompensaator / compensator / компенсатор /
Kompensator 105x40x2
11. Kate / cover / крышкa / Decke
12. Polt / bolt / болт / Bolzen M6x20
13. Polt / bolt / болт / Bolzen M8x60
14. Polt / bolt / болт / Bolzen M8x65
15. Polt / bolt / болт / Bolzen M8x200
16. Polt / bolt / болт / Bolzen M10x20
17. Mutter / nut / гайка / Mutter M8
18. Seib / washer / шайба / Scheibe 6,4x12x1,6
19. Seib / washer / шайба / Scheibe 8,4x16x1,6
20. Seib / washer / шайба / Scheibe 10,5x20x2
21. Vedruseib / spring washer / пружиннaя шайба /
Federnscheibe A6
22. Vedruseib / spring washer / пружиннaя шайба /
Federnscheibe A8
23. Vedruseib / spring washer / пружиннaя шайба /
Federnscheibe A10
24. Plaat / plate / пластина / Platte
25. Polt / bolt / болт / Bolzen M6x70
26. Seib / washer / шайба / Scheibe
27. Mutter / nut / гайка / Mutter M6
M6 - 11 Nm
M8 - 25 Nm
M10 - 50 Nm
Kaal / Weight / Macca / Gewicht: 10,0 kg
Paigaldusaeg / Time of mounting / Время установки / Einbauzeit: 30 min
