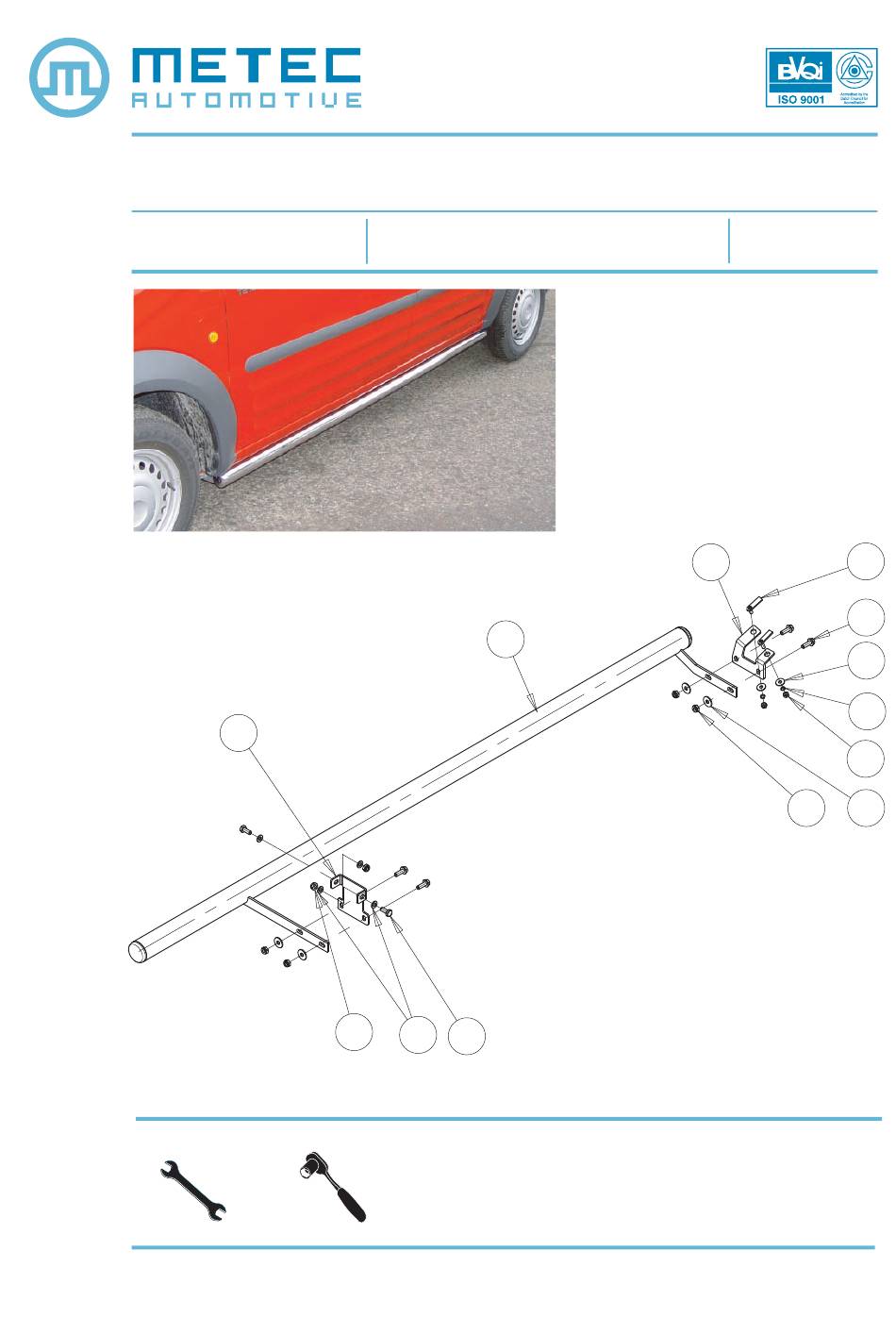

Montaažiskeem / Mounting Instructions
Ford Connect
3
Vajalikud tööriistad / Required Tools
13
15
17
All Rights Reserved by Tarmetec
Küljetoru Ø 60 / Sidebar Ø 60
1
8
11
5
13
15
17
1. Küljetoru / Sidebar
2. Kronstein / bracket
3. Kronstein / bracket
4. T-polt / T-bolt M8
5. Polt / bolt M10x25 mm
6. Polt / bolt M10x30 mm Wülock
7. Mutter / nut M8 DIN 934
8. Mutter / nut M10 DIN 985
9. Seib / washer 8,4x24x2 mm
10. Seib / washer 10,5x30x2,5 mm
11. Seib / washer 10,5x20x2 mm
12. Vedruseib / spring washer A8
2
Art. 806255
1+1
1+1
2
4
4
8
4
12
4
8
8
4
4
6
9
12
7
8
10
www.metec.ee
1
/
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metec 806255
Summary of Contents for Metec 806255
- Page 1 Montaažiskeem / Mounting Instructions Ford Connect Küljetoru Ø 60 / Sidebar Ø 60 Art. 806255 1. Küljetoru / Sidebar 2. Kronstein / bracket 3. Kronstein / bracket 4. T-polt / T-bolt M8 5. Polt / bolt M10x25 mm 6. Polt / bolt M10x30 mm Wülock 7.
- Page 2 Montaažiskeem / Mounting Instructions Ford Connect Küljetoru Ø 60 / Sidebar Ø 60 Art. 806255 Paigaldamine / Instructions Pilt 1 / Pic. 1 Pilt 2 / Pic. 2 • Paigalda T-poldid nr. 4. • Place T-bolts no. 4. • Paigalda kronstein nr. 2 (pilt 1).
