Metec 806265 Mounting Instructions

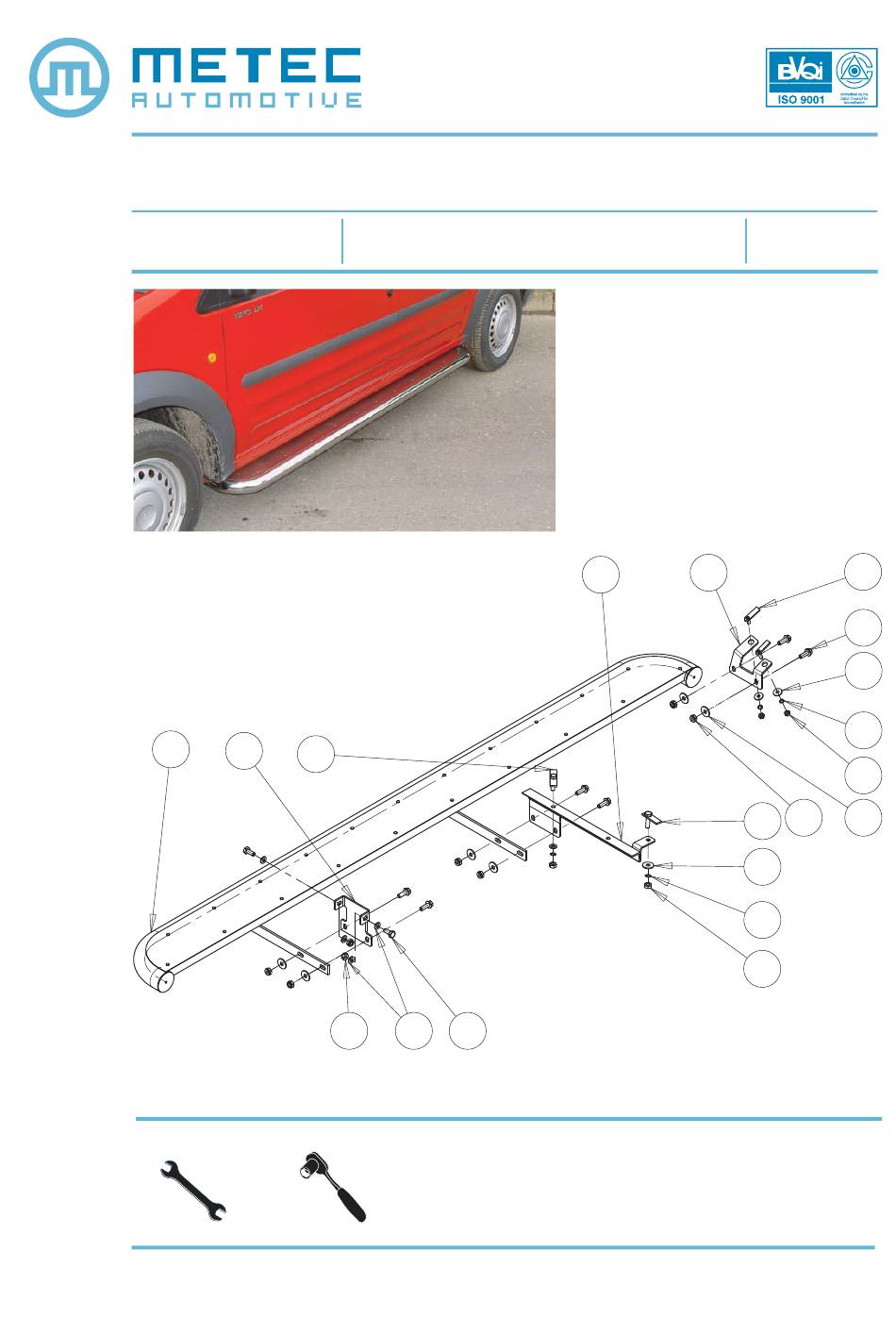

Montaažiskeem / Mounting Instructions
Ford Connect
1
4
Vajalikud tööriistad / Required Tools
13
15
17
All Rights Reserved by Tarmetec
Astmelaud Ø 60 / Sideboard step Ø 60
7
12 15 8
13
15
17
1. Astmelaud / Sideboard step
2. Kronstein / bracket
3. Kronstein / bracket
4. Kronstein / bracket
5. T-polt / T-bolt M8
6. T-polt / T-bolt M10
7. T-polt / T-bolt M10
8. Polt / bolt M10x25 mm
9. Polt / bolt M10x30 mm Wülock
10. Mutter / nut M8 DIN 934
11. Mutter / nut M10 DIN 934
12. Mutter / nut M10 DIN 985
13. Seib / washer 8,4x24x2 mm
14. Seib / washer 10,5x30x2,5 mm
15. Seib / washer 10,5x20x2 mm
16. Vedruseib / spring washer A8
17. Vedruseib / spring washer A10
2
3
14
17
11
Art. 806265
1+1
1+1
1+1
2
4
2
2
4
12
4
4
16
4
14
10
4
4
5
9
13
16
10
12 14
6
www.metec.ee
1 / 2
