Standard control cable length is 15 feet.
Longer available for order if required.
We discourage splicing or trying to make your
own longer cable.
Sensor cable is standard 15'. No option. No
need for longer as specified location is close
to heater.
Heater junction box is a tight fit. Ensure no bare wires make contact with circuit board, or other heater components.
When closing junction box cover to ensure wires are not being pushed out of position or trapped in cover.
Some prefer or are required to make a weather-proof connection. If so, you may use Liquid tight conduit for the wire
exposed. within the sauna. For more flexibility, you can install weather proof junction box inside sauna below heater and
use flexible SOOW wire to connect to heater

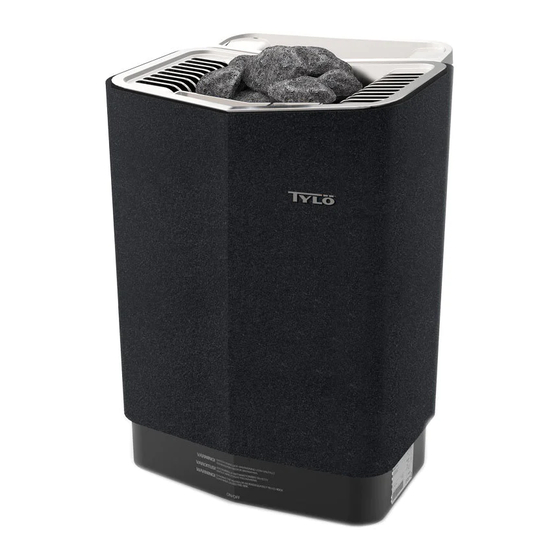

SENSE COMBI ELITE QSG (Quick Start Guide)
Please use this QSG ONLY to install this sauna heater.
Keep full manual for later reference and trouble-shooting if needed
Model
Sense Combi-U7
Sense Combi-U8
Note: Typical Home is USA & Canada is 240 volt, single phase
240 volt, single Phase
Output
Copper
kW
Wire Size
7
8
8.3
8
240v Supply wire
L1
L2
Confirm 3X copper
connectors installed
Amps
Breaker
29.2
40
34.6
50
For use only if you
want to use sauna
control to operate your
light (not dimmable).
Requires separate 120v
supply. (Do NOT take
120v from main 240v
supply.)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tylo Sense Combi-U7
Summary of Contents for Tylo Sense Combi-U7
- Page 1 240 volt, single Phase Model Output Copper Amps Breaker Wire Size Sense Combi-U7 29.2 Sense Combi-U8 34.6 Note: Typical Home is USA & Canada is 240 volt, single phase 240v Supply wire For use only if you Confirm 3X copper...
- Page 2 Temperature Sensor Location Sensor location is very specific and very important for proper function of the sauna heater. Sensor must be 3” to the front or open side of heater (not in corner), 1” down from ceiling. Humidity + Temperature Sensor Installation (Combi Elite Only) Sensor cable wires are very small.
-
Page 3: Installation Without Bracket
Heater Installation Secure bracket thru lining into blocking. Otherwise, heater may fall off wall. 1. Minimum distance from side wall: 3” (75 mm) 2. Minimum distance from ceiling: 44” (1100 mm) 3. Minimum from heater guard (front): 4” (100 mm) 4. -
Page 4: Maintenance
Annually Combi water reservoir should be descaled at least once a year using “Tylo De-Scaler” (see full manual). Clean water level probe using a cloth (see full manual). Check stone compartment. Remove all stones. Remove all small stones, gravel and lime-scale from rock compartment. - Page 5 /Elite...
- Page 6 WARNING! occurs when the internal temperature of the body reaches a level several degrees above the normal temperature of 98.6° F. The symptoms of hypothermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness and fainting. The e ect of hyperthermia include: a) Failure to perceive heat;...
- Page 7 Table 1: Voltage and sauna volume Figure 1: Sauna heater/control panel parts...
- Page 8 Figure 2: Schematic diagram of installation Figure 4: Safety distance, control panel DANGER! No more than one heater may be instal- led in the same sauna cabin. Figure 5: Warning/Caution plate Figure 3: Positioning the heater - normal installation...
- Page 9 Figure 7: Removing the Rock Guard Figure 6: Positioning the air intake and exhaust vents...
- Page 10 Figure 10: Opening/closing the cover Figure 8: Typical wall construction Figure 11: Circuit board Figure 9: Bracket with screws and spacers 26.3 in 11.0 in 7.3 in 9.0 in (minimum distance) WARNING! Always check that the heater is con- nected to the correct main/phase voltage!
- Page 11 Figure 12: Hang the heater up. Combi Elite Fig 13: Fit spacers Fig 16: Installing the humidity- and temperature sensor - Combi Elite. The cable inside the sauna must be heat resistant. Fig 14: Fitting the cover for the water reservoir, herb grille and fragrance holder/air humidifi...
- Page 12 Fig 18: Wiring through the wall - Combi Elite. For further information, see instructions supplied with the control panel.
- Page 13 5,3-8,3 kW * ** RJ10 4P4C 3 x 14 AWG 208/240 V~ RJ10 4P4C RJ10 4P4C RJ10 4P4C max 75 feet - Combi Elite max 300 feet - Combi Pure Figure 19: Wiring diagram Combi Elite. Elite). 3:12V 1 2 3 4 4:GND Fig 20a: Connecting the humidity- and temperature sensor - Combi Elite...
- Page 14 Pos 1. Pos 2. Pos 3. Pos 4. Pos 5. Ext sw Door sw Bim/NTC Addon (option) Pin 1: Pin 1: Pin 1: Pin 1: Bim Pin: Pin 2: NTC Pin 2: LED Pin 2: LED Pin 2: NTC Pin 3: NTC Pin 3: SW Pin 3: SW Pin 3: NTC...
- Page 15 17,0" 7,3"...
- Page 16 See instructions supplied with the control panel. DANGER! Fragrant essences and similar prod- ucts may ignite, if poured directly onto the NB: Always use dolerite stones (Manufacure’s stones. Stones)! "Ordinary" stones may damage the heater. Do not use ceramic stones. Ceramic stones may NOTE! Do not use the sauna cabin for any purpose damage the heater.
- Page 17 See instructions supplied with the control panel. See the instructions supplied with the control panel. DANGER! Never put fragrances in the herb bowl or water reservoir. DANGER! Fragrant essences etc. may ignite if poured directly onto the stones. Figure 3: Filling the water reservoir. Note! Never use salt water - can damage the heater element in the reservoir.
- Page 18 WARNING! Do not confuse the instructions for the air humidifi er with those for the water reser- voir. DANGER! Do not pour water into the fragrance holder once it has been heated up, as this can cause boiling water to splash on the sauna occupants. Do not stand or sit in front of the heater while water is being poured into the fragrance holder, as hot water can spray out suddenly.
- Page 19 WARNING! If the stone compartment fi lls up with gravel and small stones, the tubular element can be damaged as a result of overheating, as air fl ow will be insu cient. Figure 7: Cleaning the electrodes Water reservoir Heater Information! Figure 8: Cleaning the fragrance holder/air humidifier and herb bowl...
- Page 20 Information! Table 1: Troubleshooting the sauna heater 1,2,3,4,5...
- Page 21 Figure 11: Spare parts 2 Figure 10: Spare parts 1 Combi Pure Combi Elite Figure 12: Symbol...
- Page 22 WATER TANK Electrodes BACK MIDDLE FRONT High Limit Control Heater Circuit board GND M X17 X18 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 GND GND 208 V~ 240 V~ Type Sense L2 GND Combi-U 7 120 V~ 208-240V, 1-ph...
