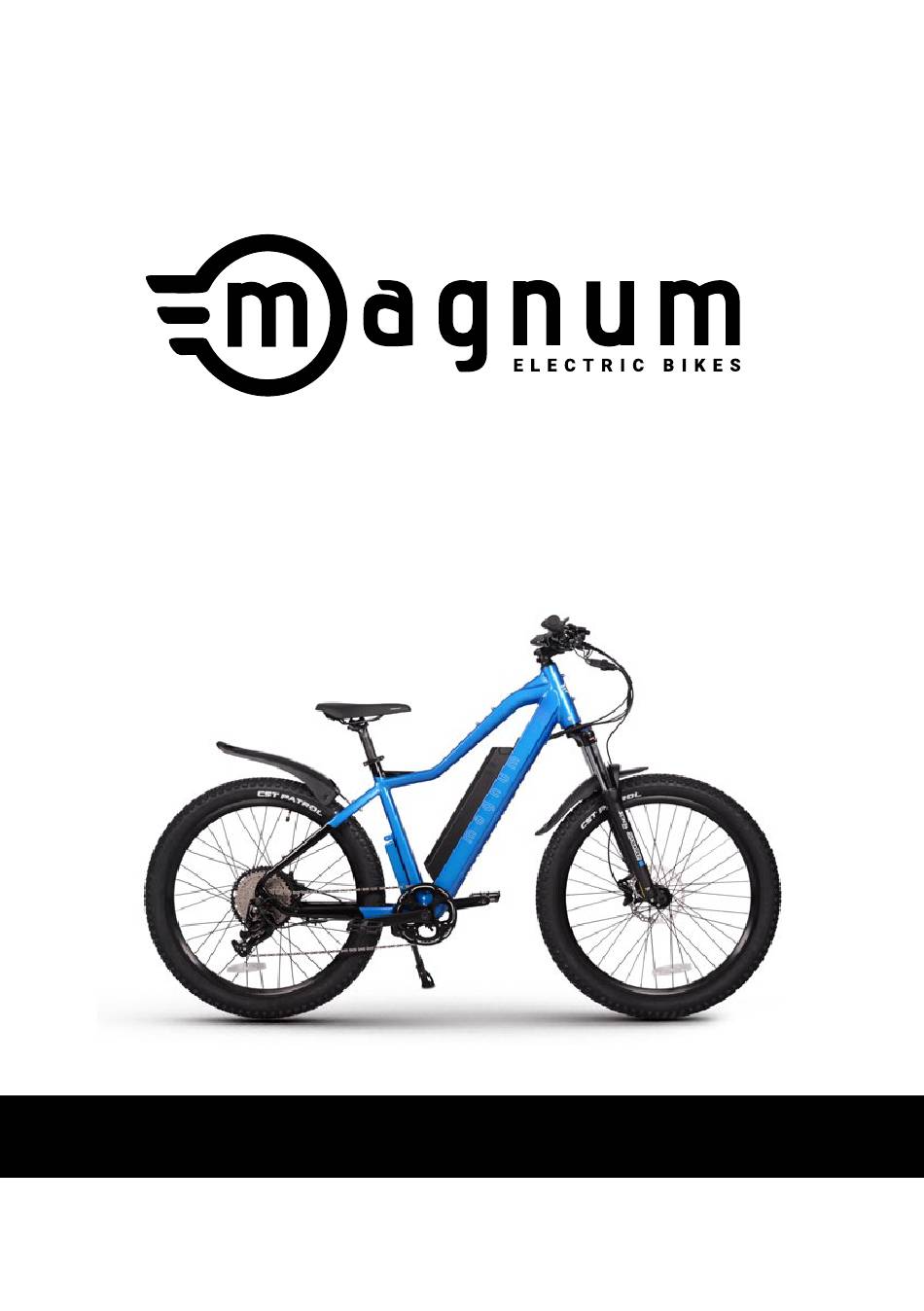

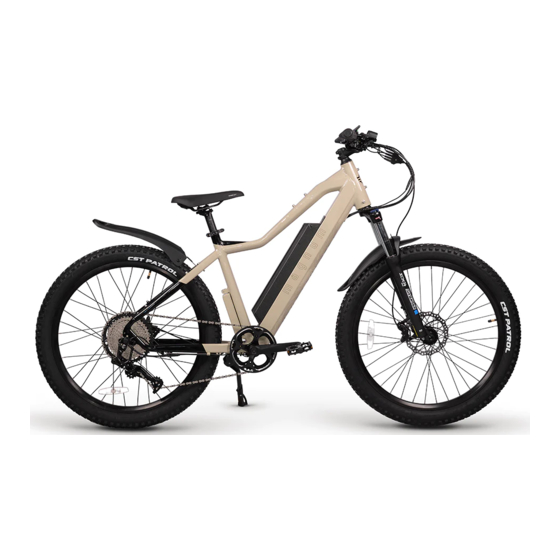

- Page 1 Peak T5/T7 PLEASE READ ME FIRST www.magnumbikes.com...
-
Page 2: Table Of Contents
Contents Contents 1. Preface 5. Storage 1.1 Welcome to Magnum Bikes........................... 5.1 Battery storage............................... 1.2 Symbols................................5.2 Bike storage..............................1.3 General warning............................. 6. Maintenance 2. Safety 6.1 Cleaning................................21-22 6.2 Drivetrain................................ 2.1 Safe riding practices............................2.2 Battery & charger............................7. Bicycle Overview 2.3 Riding with accessories and cargo....................... -
Page 3: Preface
Welcome to the Magnum Bikes family. We’re honored that you’ve chosen a Magnum as the bike that you’ll be enjoying for years to come. Should you have any questions about your new Peak T5/T7, we’re here to help answer any question or questions that may arise. -
Page 4: Safety
• Do not submit the battery to extreme temperatures, and store it in a clean dry place. improper use of your Magnum Bike can result in failure, loss of control, serious injury, or death. Regardless of rider experience, the operator of the Magnum Bike must read and understand the entire manual and any •... -
Page 5: Riding In Various Conditions
• The use of a bicycle trailer will cause extra load and stress, increasing the wear on the The Peak T5/T7’s electrical • Always make sure that any cargo or any other accessories are properly fitted to the Premium III in accordance with the manufacturer’s instructions. -
Page 6: Bicycle Overview
Safety/Overview Overview Not all third party parts and accessories are compatible with the Peak T5/T7. Consult your local dealer or Magnum support if unsure of compatibility or questions with assembly and installation. If instructions are missing, not clear, or not understood, take the necessary actions to acquire and understand the instructions for installation and use prior to using the accessory. -
Page 7: Battery
The motor is designed to offer assistance as the the rider pedals and for short periods • Not all batteries are compatible with all bikes. Check with a Magnum dealer or with Magnum Bikes customer support while the throttle is engaged. - Page 8 Overview Overview Battery Power Trip, Odometer, & Range Battery power is shown by a battery bar indicator and percentage. The battery bar divides the power level into Short press the M button to switch from TRIP, ODO, & RANGE on the display. The cycle order is TRIP/AVG, 5 bars.
- Page 9 Overview Overview Setting Items Interface Description Setting Data Remark Display Settings The following description explains how users can access the settings options in their display. Within 10 seconds of turning on the display, long press the M button to enter the settings interface. Short press the arrow buttons to switch between settings.
-
Page 10: Assembly
1. Open the box. Remove the staples from the flaps to prevent injuring yourself. With the help of another person, carefully remove the Peak T5/T7 from the box. Carefully remove the packaging material from the e-bike. In the event that the bike needs to be returned, keep the packaging materials in case you want to ship the bike. Remove the small cardboard box from the bike box and set it aside. -
Page 11: Battery Installation
Battery Removal Insert the key provided with the Peak T5/T7 into the lock core. The lock core will be located above the battery on the non-drivetrain side. After insertion, turn the key to the unlock position to disengage the locking mecha- •... -
Page 12: Pedal Installation
Leave the battery on the charger until it is fully charged. • Incorrect assembly, maintenance, or use of your Peak T5/T7 can cause component or performance failure, 6. Maintenance loss of control, serious injury, or death. Even if you’re an experienced bike rider, you must read and understand the entire manual and any documentation provided for subcomponents or accessories before riding. - Page 13 When brakes are fully squeezed, both front and rear brake levers should not be the instructions in this manual as a foundation for how to maintain your e-bike. Consult your Magnum dealer for fur- touching the handlebar. Take your bike to a certified and reputable bike mechanic to have the brakes ther advice and recommendations on maintenance, cleaning, tools and materials to keep your Magnum Bike operating repaired if you find a problem.
- Page 14 7.1 Warranty Suspension fork • At Magnum Bikes we believe that the rider and enjoying the ride is the top priority. To fully maximize the ride, we • Using electrical components or chargers not approved by Magnum Bikes believe that the rider should only focus on the ride and the journey, without worry or concern about the quality and durability of their e-bike.
- Page 15 To ensure safety, quality and reliability, use only original parts or Magnum Bikes authorized replacements for repair and replacement. Mag- num Bikes is not responsible for any direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses due to tampering.
