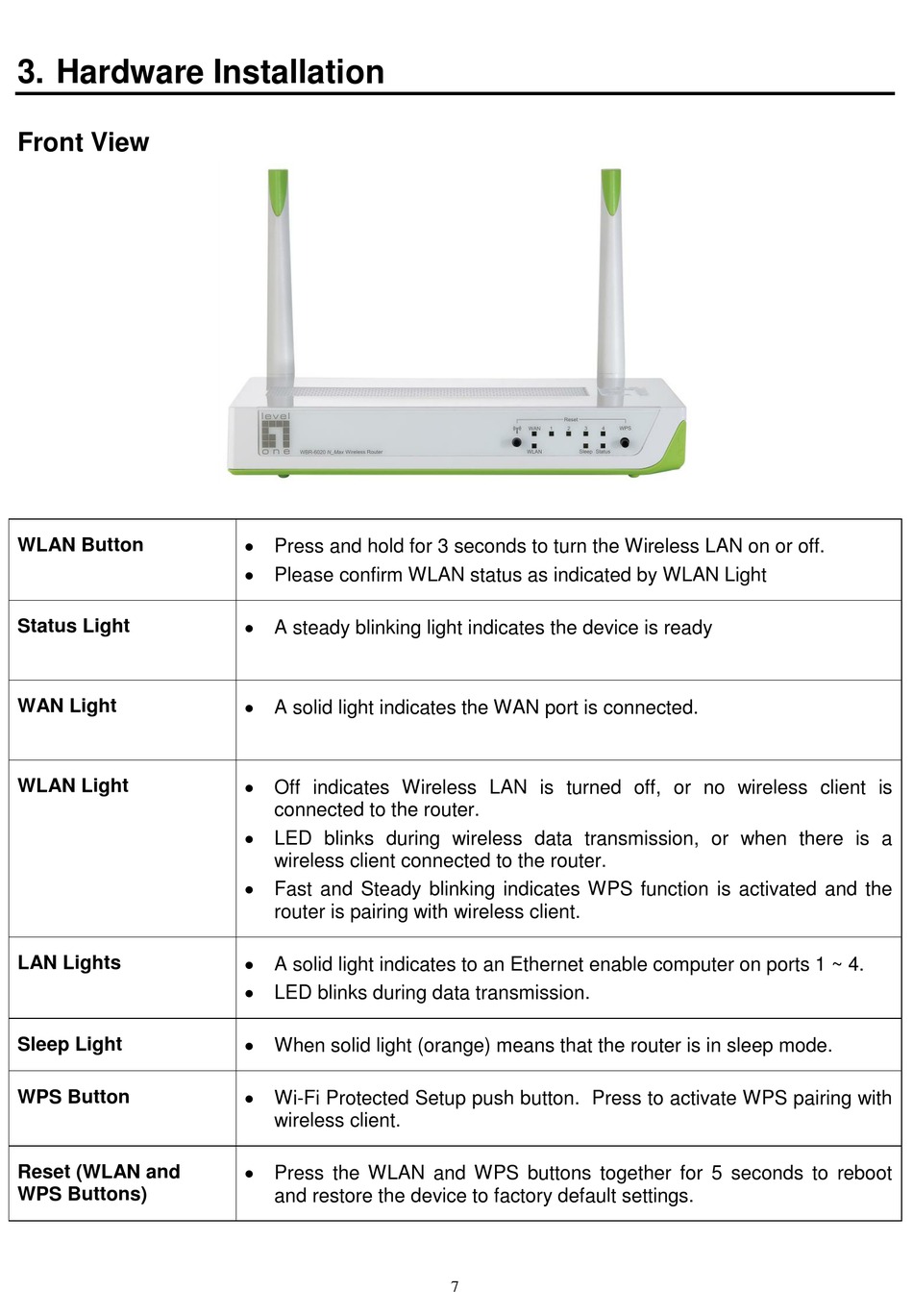

3. Hardware Installation

Front View

WLAN Button
Status Light
WAN Light
WLAN Light
LAN Lights
Sleep Light
WPS Button
Reset (WLAN and
WPS Buttons)
 Press and hold for 3 seconds to turn the Wireless LAN on or off.
 Please confirm WLAN status as indicated by WLAN Light
 A steady blinking light indicates the device is ready
 A solid light indicates the WAN port is connected.
 Off indicates Wireless LAN is turned off, or no wireless client is
connected to the router.
 LED blinks during wireless data transmission, or when there is a
wireless client connected to the router.
 Fast and Steady blinking indicates WPS function is activated and the
router is pairing with wireless client.
 A solid light indicates to an Ethernet enable computer on ports 1 ~ 4.
 LED blinks during data transmission.
 When solid light (orange) means that the router is in sleep mode.
 Wi-Fi Protected Setup push button. Press to activate WPS pairing with
wireless client.
 Press the WLAN and WPS buttons together for 5 seconds to reboot
and restore the device to factory default settings.
7
