3. Hardware Installation

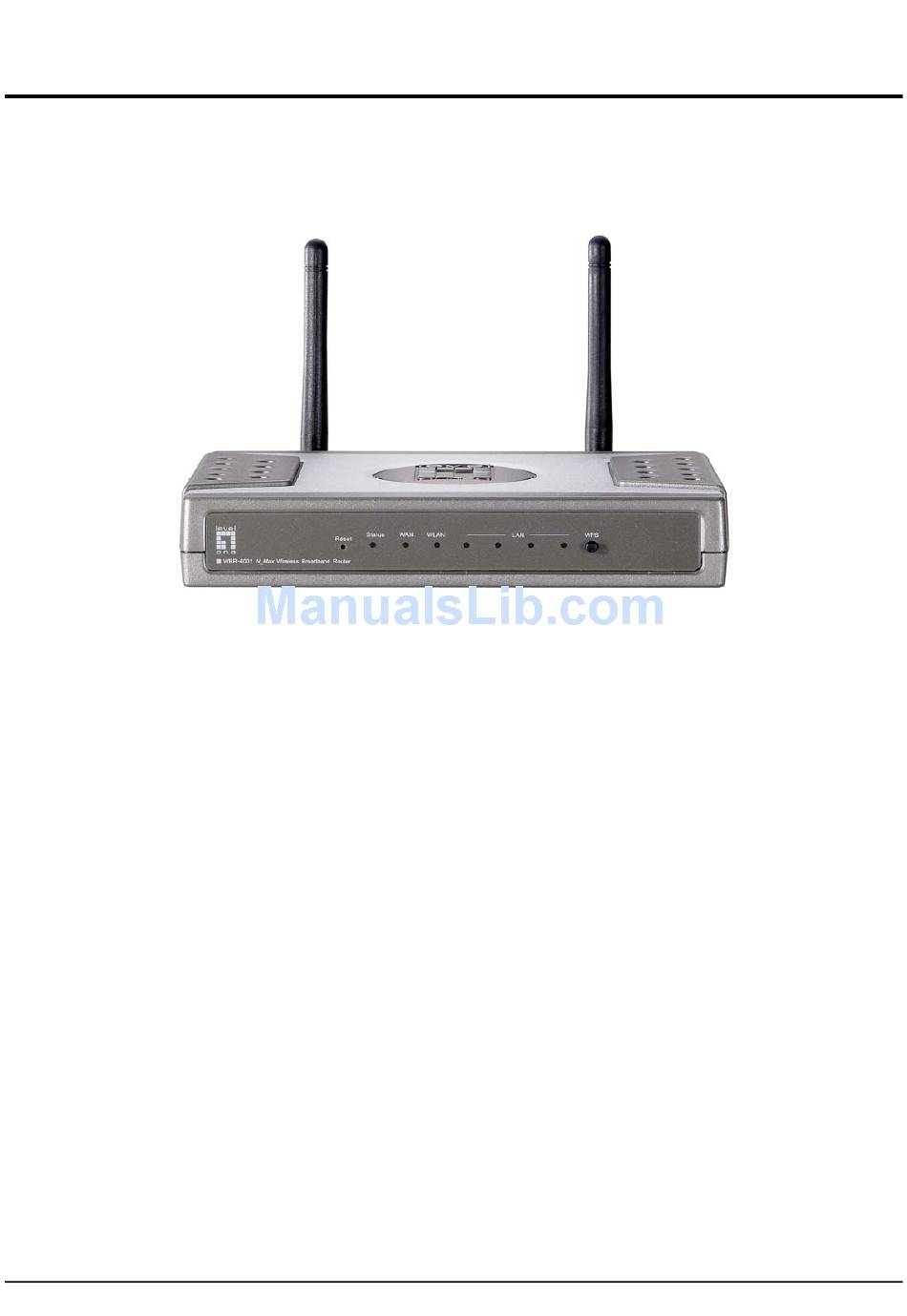

Product Layout – Front View
1) Reset
Press the Reset button to reboot device or restores factory default setting.
2) Status
A blinking light indicates the device is ready
3) WAN
A solid light indicates the WAN port is connected.
4) WLAN
A solid light indicates the Wireless segment is ready. LED blinks during wireless data transmission.
5) LAN LEDs
A solid light indicates to an Ethernet enable computer on ports 1~4.
LED blinks during data transmission.
6) WPS
Wi-Fi Protected Setup push button
5
