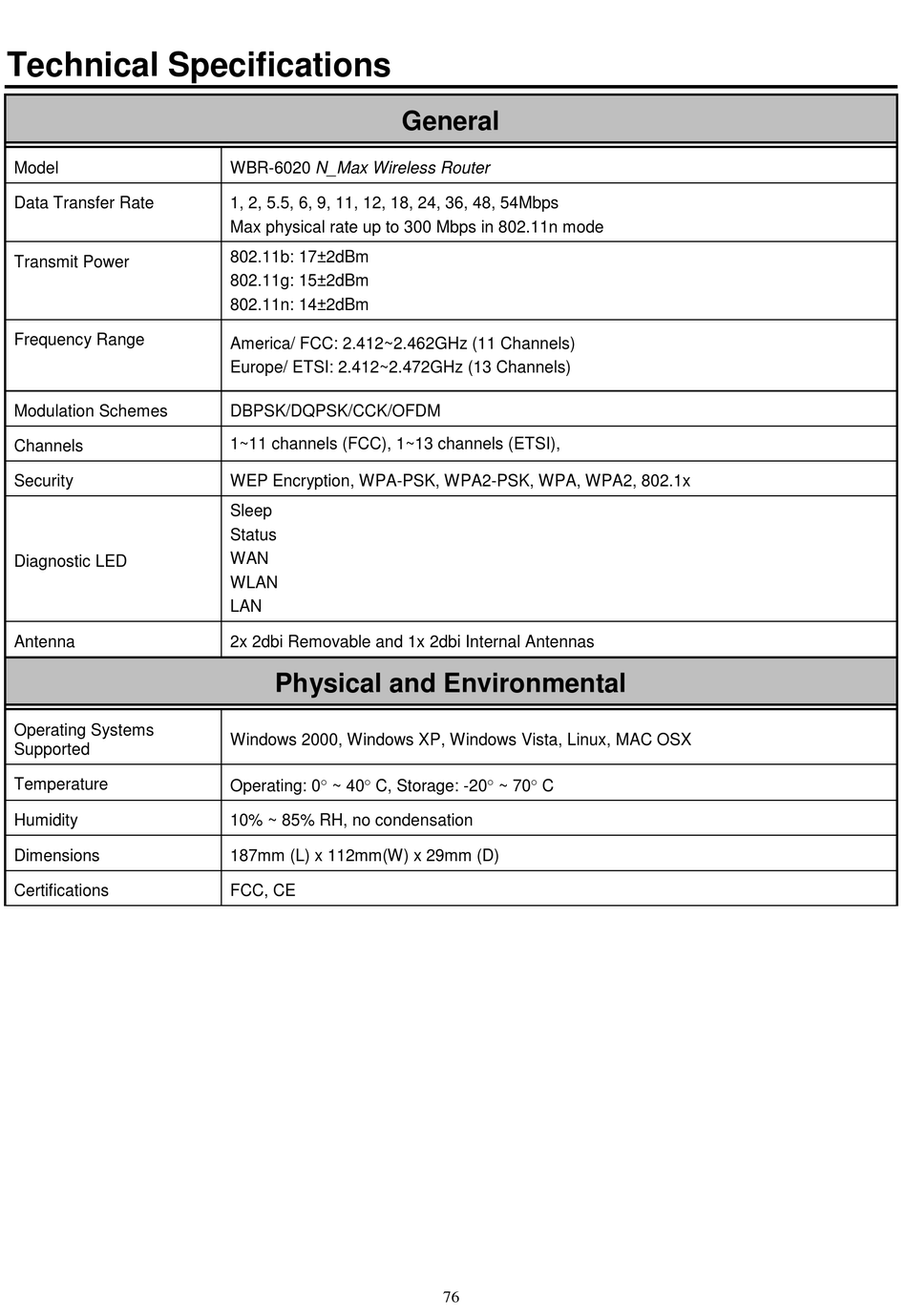

Technical Specifications

Model
Data Transfer Rate
Transmit Power
Frequency Range
Modulation Schemes
Channels
Security
Diagnostic LED
Antenna
Operating Systems
Supported
Temperature
Humidity
Dimensions
Certifications
WBR-6020 N_Max Wireless Router
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps
Max physical rate up to 300 Mbps in 802.11n mode
802.11b: 17±2dBm
802.11g: 15±2dBm
802.11n: 14±2dBm
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
DBPSK/DQPSK/CCK/OFDM
1~11 channels (FCC), 1~13 channels (ETSI),
WEP Encryption, WPA-PSK, WPA2-PSK, WPA, WPA2, 802.1x
Sleep
Status
WAN
WLAN
LAN
2x 2dbi Removable and 1x 2dbi Internal Antennas
Physical and Environmental
Windows 2000, Windows XP, Windows Vista, Linux, MAC OSX
Operating: 0 ~ 40 C, Storage: -20 ~ 70 C
10% ~ 85% RH, no condensation
187mm (L) x 112mm(W) x 29mm (D)
FCC, CE
General
76
