LevelOne WBR-6001 User Manual

N_max wireless broadband router
Hide thumbs Also See for WBR-6001:
Table of Contents

Advertisement

Quick Links

LevelOne

User Manual

WBR-6001
N_Max Wireless Broadband Router
Ver. 1.0.0-0801
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBR-6001 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne WBR-6001

Summary of Contents for LevelOne WBR-6001

  • Page 1: User Manual

    LevelOne User Manual WBR-6001 N_Max Wireless Broadband Router Ver. 1.0.0-0801...

  • Page 2: Fcc Warning

    Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. CE Marking Warning Hereby, Digital Data Communications, declares that this (Model-no. WBR-6001) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    AYOUT RONT – R RODUCT AYOUT ARDWARE INSTALLATION STEPS ... 8 ETWORK HECK 4. CONFIGURING WIRELESS ROUTER... 10 LED I NDICATOR FOR OGIN TO ONFIGURE FROM ... 10 ASIC ETTING Primary Setup – WAN Type, Virtual Computers ... 10 Static IP Address... 12 Dynamic IP Address with Road Runner Session Management.(e.g.
  • Page 4 URL Blocking ... 38 MAC Address Control ... 40 Miscellaneous Items... 43 ... 44 DVANCED ETTINGS System Time ... 45 System Log ... 46 Dynamic DNS ... 47 SNMP Setting ... 49 Routing... 50 Schedule Rule... 52 Qos Rule ... 54 ...

  • Page 5: Introduction

    1. Introduction Congratulations on your purchase of LevelOne N_Max Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual.

  • Page 7: Unpacking And Setup

    Quick Setup Wizard provides alternative way to manage device Package Contents Open the box of the N_Max Wireless Broadband Router and carefully unpack it. The box should contain the following items: WBR-6001 N_Max Wireless Broadband Router Power Adapter Cat.5 Cable Antenna...

  • Page 9: Hardware Installation

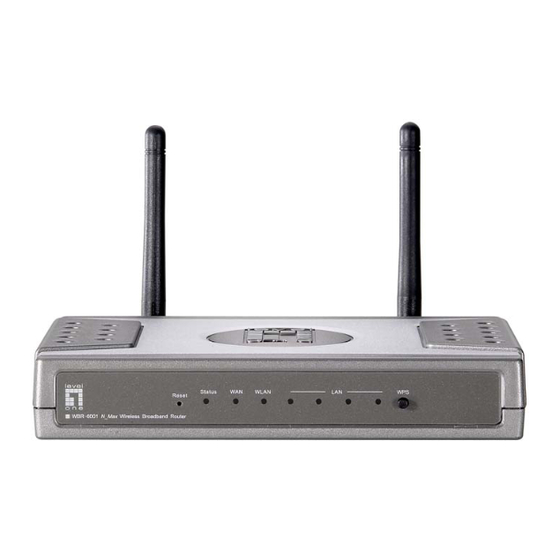

    3. Hardware Installation Product Layout – Front View 1) Reset Press the Reset button to reboot device or restores factory default setting. 2) Status A blinking light indicates the device is ready 3) WAN A solid light indicates the WAN port is connected. 4) WLAN A solid light indicates the Wireless segment is ready.

  • Page 10: Product Layout - Rear View

    Product Layout – Rear View 1) Power Jack Receptor for the supplied power adapter 2) LAN Ports (1~4) Connect Ethernet devices such as computers, switches or hubs. 3) WAN Port The WAN port is the connection for the Ethernet cable to the Cable or DSL Modem. 4) Antenna Detachable antenna allows users to change antenna if necessary.
  • Page 11 3. Setup WAN connection Prepare an Ethernet cable for connecting this product to your cable/xDSL modem or Ethernet backbone. 4. Power on Connecting the power cord to power inlet and turning the power switch on, this product will automatically enter the self-test phase. When it is in the self-test phase, the Status indicator will be lighted ON for about 10 seconds, and then it will be flashed 3 times to indicate that the self-test operation has finished.

  • Page 12: Network Check

    Network Check Please make sure your PC can get IP address automatically so the WBR-6001 can communicate with your PC during configuration. • Select “Control Panel” > “Network Connections”. • Right click the “Local Area Connection” and choose “Properties”. •...
  • Page 13 Default Settings IP Address 192.168.0.1 Password password Wireless Mode Enable SSID WBR-6001 Security None Please enter the default system password in lowercase only.

  • Page 14: Configuring Wireless Router

    4. Configuring Wireless Router LED Indicator for N_Max Wireless Router Function Color System Status status WAN port activity WLAN Wireless activity Link. Link status Speed 10/100 Data Rate Reset Special Button application Statu Description Status flashed once per second to indicate system...

  • Page 15: Login To Configure From Wizard

    Login to Configure from Wizard Activate your browser, and disable the proxy or add the IP address of this product into the exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press ENTER.
  • Page 16 Setup Wizard will guide you through a basic configuration procedure step by step. Press ”Next ” Once the user finishes those steps and the router screen displayed as below. It means that the Internet connection is now established.

  • Page 18: Basic Setting

    Basic Setting Please Select “Advanced Setup” to Setup Primary Setup – WAN Type, Virtual Computers...
  • Page 19 Press “Change”...

  • Page 20: Static Ip Address

    This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start. 1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway.

  • Page 21: Dynamic Ip Address With Road Runner Session Management.(E.g. Telstra Bigpond)

    Dynamic IP Address 1. Host Name: optional. Required by some ISPs, for example: @Home. 2. Renew IP Forever: this feature enables this product to renew your IP address automatically when the lease time is expiring-- even when the system is idle. Dynamic IP Address with Road Runner Session Management.(e.g.

  • Page 22: L2Tp

    1. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you. 2. Server IP Address: the IP address of the PPTP server. 3. PPTP Account and Password: the account and password your ISP assigned to you. If you don't want to change the password, keep it empty.

  • Page 23: Virtual Computers (Only For Static And Dynamic Ip Address Wan Type)

    Virtual Computers (Only for Static and dynamic IP address Wan type) Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address. • Global IP: Enter the global IP address assigned by your ISP. •...

  • Page 24: Dhcp Server

    DHCP Server Press “More>>” 1. DHCP Server: Choose “Disable” or “Enable.” 2. Lease time: This is the length of time that the client may use the IP address it has been assigned by DHCP server. 3. IP pool starting Address/ IP pool starting Address: Whenever there is a request, the DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer.

  • Page 25: Wireless Setting, 802.1X Setting And Wds

    Wireless setting, 802.1X setting and WDS Wireless settings allow you to set the wireless configuration items. Wireless: The user can enable or disable wireless function. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID.
  • Page 26 Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another. There are several security types to use: WEP: When you enable the 128 or 64 bit WEP key security, please select one WEP key to be used and input 26 or 10 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.
  • Page 27 WPA-PSK 1. Select Encryption and Pre-share Key Mode If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If user selects ASCII, the length of pre-share key is from 8 to 63. 2.
  • Page 28 Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server’s domain-name. Select Encryption and RADIUS Shared Key If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If user elects ASCII, the length of pre-share key is from 8 to 63.
  • Page 29 WPA2 (AES) Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server’s domain-name. Select RADIUS Shared Key If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If user selects ASCII, the length of Pre-share key is from 8 to 63.
  • Page 30 WPA/WPA2 Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server The router will detect automatically which Security type(Wpa-psk version 1 or 2) the client uses to encrypt.
  • Page 31 WDS (Wireless Distribution System) WDS operation as defined by the IEEE802.11 standard has been made available. Using WDS it is possible to wirelessly connect Access Points, and in doing so extend a wired infrastructure to locations where cabling is not possible or inefficient to implement.

  • Page 33: Change Password

    Change Password You can change Password here. We strongly recommend you to change the system password for security reason.

  • Page 34: Forwarding Rules

    Forwarding Rules...

  • Page 35: Virtual Server

    Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP.

  • Page 36: Special Ap

    Special AP Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

  • Page 37: Miscellaneous Items

    Miscellaneous Items IP Address of DMZ Host DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications. NOTE: This feature should be used only when needed.

  • Page 38: Security Settings

    The device also supports this function. If the OS supports this function enable it. Security Settings...

  • Page 39: Packet Filter

    Packet Filter Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only. You can select one of the two filtering policies: 1.
  • Page 40 For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses. For source or destination port, you can define a single port (80) or a range of ports (1000-1999). Add prefix "T"...
  • Page 41 (1.2.3.100-1.2.3.149) they are allow to send mail (port 25), and browse the Internet (port 80) (1.2.3.10-1.2.3.20) they can do everything (block nothing) Others are all blocked. Example 2: (1.2.3.100-1.2.3.119) they can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are all allowed.
  • Page 42 (149.161.123.100-149.161.123.149) they are allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve the domain name. (149.161.123.10-149.161.123.20) they can do everything (block nothing) Others are all blocked. Example 2:...
  • Page 43 (149.161.123.100 and 149.161.123.119) They can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are allowed After Outbound Packet Filter setting is configured, click the save button.

  • Page 44: Domain Filter

    Domain Filter Domain Filter Let you prevent users under this device from accessing specific URLs. Domain Filter Enable Check if you want to enable Domain Filter. Log DNS Query Check if you want to log the action when someone accesses the specific URLs. Privilege IP Addresses Range Setting a group of hosts and privilege these hosts to access network without restriction.
  • Page 45 Example: In this example: 1. URL include “www.msn.com” will be blocked, and the action will be record in log-file. 2. URL include “www.sina.com” will not be blocked, but the action will be record in log-file. 3. URL include “www.google.com” will be blocked, but the action will not be record in log-file. 4.

  • Page 46: Url Blocking

    URL Blocking URL Blocking will block LAN computers to connect to pre-define Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.
  • Page 47 In this example: 1. URL include “msn” will be blocked, and the action will be record in log-file. 2. URL include “sina” will be blocked, but the action will be record in log-file 3. URL include “cnnsi” will not be blocked, but the action will be record in log-file. 4.

  • Page 48: Mac Address Control

    MAC Address Control MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...
  • Page 49 "Control table" is the table at the bottom of the "MAC Address Control" page. Each row of this table indicates the MAC address and the expected IP address mapping of a client. There are four columns in this table: MAC address indicates a specific client. Address IP Address Expected IP address of the corresponding client.
  • Page 50 In this scenario, there are three clients listed in the Control Table. Clients 1 and 2 are wireless, and client 3 is wired. 1. The "MAC Address Control" function is enabled. 2."Connection control" is enabled, and all of the wired and wireless clients not listed in the "Control table"...

  • Page 51: Miscellaneous Items

    6. Clients 1 and 2 are allowed to associate to the wireless LAN, but a wireless client with a MAC address not specified in the Control table is denied to associate to the wireless LAN. Client 3 is a wired client and so is not affected by Association control. Miscellaneous Items Remote Administrator Host/Port In general, only Intranet user can browse the built-in web pages to perform administration task.

  • Page 52: Advanced Settings

    Administrator Time-out The time elapses of no activity to logout automatically. Set it to zero to disable this feature. Discard PING from WAN side When this feature is enabled, any host on the WAN cannot ping this product. SPI Mode When this feature is enabled, the router will record the packet information pass through the router like IP address, port address, ACK, SEQ number and so on.

  • Page 53: System Time

    System Time Get Date and Time by NTP Protocol Select it if you want to Get Date and Time by NTP Protocol. Time Server Select a NTP time server to consult UTC time Time Zone Select a time zone where this device locates. Set Date and Time manually Select it if you want to Set Date and Time manually.

  • Page 54: System Log

    Set Date and Time manually Select it if you want to Set Date and Time manually. Function of Buttons Sync Now: Synchronize system time with network time server Daylight Saving: Set up where the location is. System Log This page support two methods to export system logs to specific destination by means of syslog(UDP) and SMTP(TCP).

  • Page 55: Dynamic Dns

    Input the SMTP server IP and port, which are concated with ':'. If you do not specify port number, the default value is 25. For example, "mail.your_url.com" or "192.168.1.100:26". Send E-mail alert to Send e-mail alert to the recipient who will receive these logs. You can assign more than 1 recipient by using ';' or ',' to separate these email addresses.
  • Page 56 To enable Dynamic DNS click the check box next to Enable in the DDNS field. Next you can enter the appropriate information about your Dynamic DNS Server. You have to define: Provider Host Name Username/E-mail Password/Key You will get this information when you register an account on a Dynamic DNS server. Example: After Dynamic DNS setting is configured, click the save button.

  • Page 57: Snmp Setting

    SNMP Setting In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. Enable SNMP You must check either local or remote or both to enable SNMP function. If Local is checked, this device will response request from LAN.

  • Page 58: Routing

    Routing Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other. Routing Table settings are settings used to setup the functions of static.
  • Page 59 Configuration on NAT Router Destination SubnetMask 192.168.1.0 255.255.255.0 192.168.0.0 255.255.255.0 So if, for example, the client3 wanted to send an IP data gram to 192.168.0.2, it would use the above table to determine that it had to go via 192.168.123.103 (a gateway), And if it sends Packets to 192.168.1.11 will go via 192.168.123.216 Each rule can be enabled or disabled individually.

  • Page 60: Schedule Rule

    Schedule Rule You can set the schedule time to decide which service will be turned on or off. Select the “enable” item. Press “Add New Rule” You can write a rule name and set which day and what time to schedule from “Start Time” to “End Time”.
  • Page 61 Schedule Enable Selected if you want to Enable the Scheduler press “Edit” To edit the schedule rule, press “Delete” To delete the schedule rule and the rule #of the rules behind the deleted one will decrease one automatically. Schedule Rule can be applied to Virtual server and Packet Filter.

  • Page 62: Qos Rule

    Qos Rule Local IP: Please input Client IP, Example: 192.168.12.33. Remote Priority: Please input Global IP and port, Example: 168.96.2.3 and port 21...

  • Page 63: Toolbox

    Toolbox System Log Firmware Upgrade You can upgrade firmware by clicking Firmware Upgrade button. Backup Setting You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you...

  • Page 64: Reset To Default

    saved. Reset to default You can also reset this product to factory default by clicking the Reset to default button. Reboot You can also reboot this product by clicking the Reboot button. Miscellaneous Items MAC Address for Wake-on-LAN Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55.

  • Page 65: Appendix A 802.1X Setting

    Equipment Details PC1: Microsoft Windows XP Professional without Service Pack 1 and LevelOne Wireless PCI Card PC2: Microsoft Windows XP Professional with Service Pack 1a or latter and LevelOne Wireless PCI Card. Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix Q313664.
  • Page 66 The following test will use the inbuilt 802.1X authentication method such as ,EAP_TLS, PEAP_CHAPv2(Windows XP with SP1 only), and PEAP_TLS(Windows XP with SP1 only) using the Smart Card or other Certificate of the Windows XP Professional. DUT and Windows 2000 Radius Server Setup Setup Windows 2000 RADIUS Server We have to change authentication method to MD5_Challenge or using smart card or other certificate on RADIUS server according to the test condition.
  • Page 67 Figure 2: Enable IEEE 802.1X access control / Smart card or certificate properties Windows 2000 RADIUS server Authentication testing: DUT authenticate PC1 using certificate. (PC2 follows the same test procedures.) 1. Download and install the certificate on PC1. (Fig 4) 2.
  • Page 68 Figure 4: Certificate information on PC1 Figure 5: Authenticating...
  • Page 69 DUT authenticate PC2 using PEAP-TLS. 1. PC2 chooses the SSID of DUT as the Access Point. 2. Set authentication type of wireless client and RADIUS server both to PEAP_TLS. 3. Disable the wireless connection and enable again. 4. The DUT will send the user's certificate to the RADIUS server, and then send the message of authentication result to PC2.

  • Page 70: Appendix B Wpa-Psk And Wpa

    Appendix B WPA-PSK and WPA Wireless Router: LAN IP: 192.168.123.254 WAN IP: 192.168.122.216 Radius Server: 192.168.122.1 User A: XP Wireless Card:Ti-11g Tool: Odyssey Client Manager Refer to: www.funk.com Download: http://www.funk.com/News&Events/ody_c_wpa_preview_pn.asp Or Another Configuration: WPA-PSK In fact, it is not necessary for this function to authenticate by Radius Server, the client and wireless...
  • Page 71 Method1: 1. Go to the Web manager of Wireless Router to configure, like below: 2. Go to Odyssey Client Manager, first choose “Network” Before doing that, you should verify if the software can show the wireless card. Open “Adapters” 3. Add and edit some settings:...
  • Page 72 4. Back to Connection: Then Select “Connect to network” You will see: Method2: 1. First, patch windows XP and have to install “Service package 1” Patch: http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=5039ef4a- 61e0-4c44-94f0-c25c9de0ace9...
  • Page 73 2. Then reboot. 3. Setting on the router and client: Router: Client: Go to “Network Connection” and select wireless adapter. Choose “View available Wireless Networks” like below: Advanced choose “123kk” WPA: For this function, we need the server to authenticate. This function is like 802.1x.
  • Page 74 Method 1: 1. The User A or User B have to get certificate from Radius, first. http://192.168.122.1/certsrv Account: fae1 Password: fae1 2. Then, Install this certificate and finish. 3. Go to the Web manager of Wireless Router to configure, like below:...
  • Page 75 4. Go to Odyssey Client Manager, choose “Profiles” and Setup Profile name as “1” Login name and passwd are fae1 and fae1. Remember that you get certificate from Radius in Step1. 5. Then Choose “certificate” like above.
  • Page 76 6. Then go to Authentication and first Remove EAP/ TLS and Add EAP/TLS again.
  • Page 77 7. Go “Network” and Select “1” and ok 8. Back to Connection and Select “123kk. If successfully, the wireless client has to authenticate with Radius Server, like below:...
  • Page 78 9.Result: Method 2: 1. The UserA or UserB have to get certificate from Radius, first. http://192.168.122.1/certsrv Account: fae1 Password: fae1 2. Then Install this certificate and finish. 3. Setting on the router and client: Router:...
  • Page 79 Client: Go to “Network Connection” and select wireless adapter. Choose “View available Wireless Networks” like below: Advanced choose “123kk” Select “WirelessCA and Enable” in Trusted root certificate authority:...
  • Page 80 Then, if the wireless client wants to associate, it has to request to authenticate.

  • Page 81: Appendix C Faq And Troubleshooting

    Appendix C FAQ and Troubleshooting What can I do when I have some trouble at the first time? 1. Why can I not configure the router even if the cable is plugged in the ports of Router and the led is also light? A: First, make sure that which port is plugged.
  • Page 82 2. Why can I not connect the router even if the cable is plugged in LAN port and the led is light? A: First, please check Status Led. If the device is normal, the led will blink per second. If not, please check the blinking Status led shows. There are many abnormal symptoms as below: Status Led is bright or dark in work: The system hanged up .Suggest powering off and on the router.
  • Page 83 1. How to start to use wireless? A: First, make sure that you already installed wireless client device in your computer. Then check the configuration of wireless router. The default is as below: About wireless client, you will see wireless icon:...
  • Page 84 Then click and will see the AP list that wireless client can be accessed: If the client can not access your wireless router, please refresh network list again. Choose the one that you will want to connect and connect: If successfully, the computer will show User will also retrieve IP from router: 2.
  • Page 85 If SSID is default and click “Properties” to check if the driver of wireless client supports AES encryption. 3. When I use wireless to connect the router, but I find the signal is very low even if I am close to the router? A: Please check if the wireless client is normal, first.

  • Page 86: Technical Specifications

    Technical Specifications Model WBR-6001 N_Max Wireless Broadband Router Data Transfer Rate 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps Max physical rate up to 300 Mbps in 802.11n mode 802.11b: 17±2dBm Transmit Power 802.11g: 15±2dBm 802.11n: 14±2dBm America/ FCC: 2.412~2.462GHz (11 Channels)
