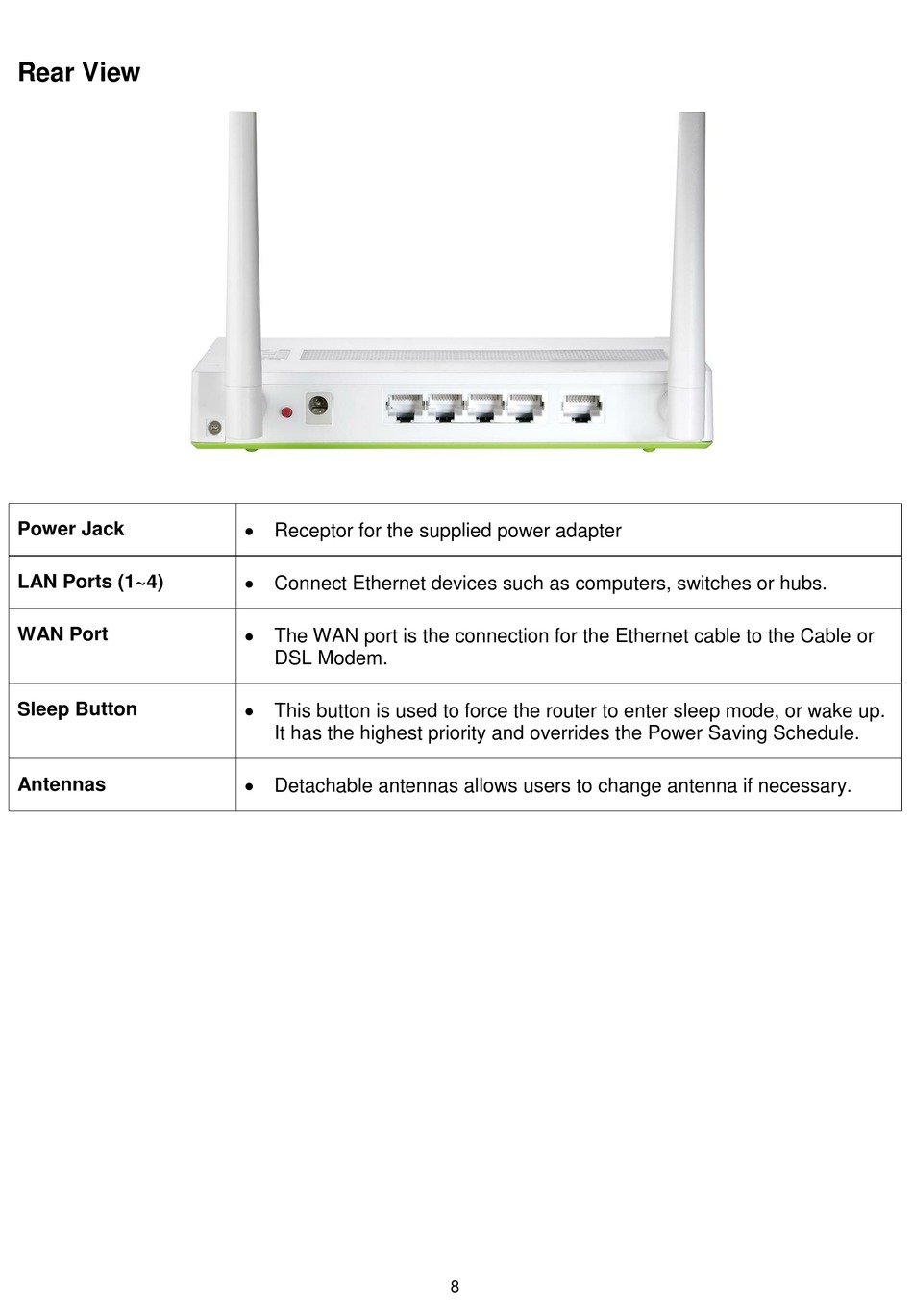

Rear View

Power Jack

LAN Ports (1~4)

WAN Port

Sleep Button

Antennas

 Receptor for the supplied power adapter

 Connect Ethernet devices such as computers, switches or hubs.

 The WAN port is the connection for the Ethernet cable to the Cable or

DSL Modem.

 This button is used to force the router to enter sleep mode, or wake up.

It has the highest priority and overrides the Power Saving Schedule.

 Detachable antennas allows users to change antenna if necessary.
