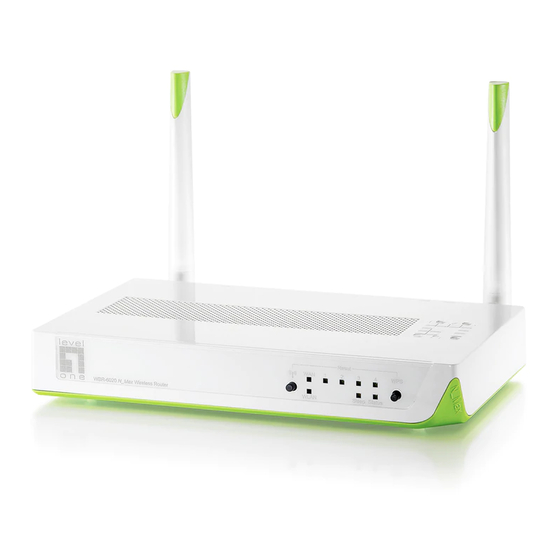

N_max wireless router
Hide thumbs Also See for WBR-6020:
Table of Contents

Advertisement

Quick Links

Download this manual
LevelOne

User Manual

WBR-6020
N_Max Wireless Router
Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBR-6020 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne WBR-6020

Summary of Contents for LevelOne WBR-6020

  • Page 1: User Manual

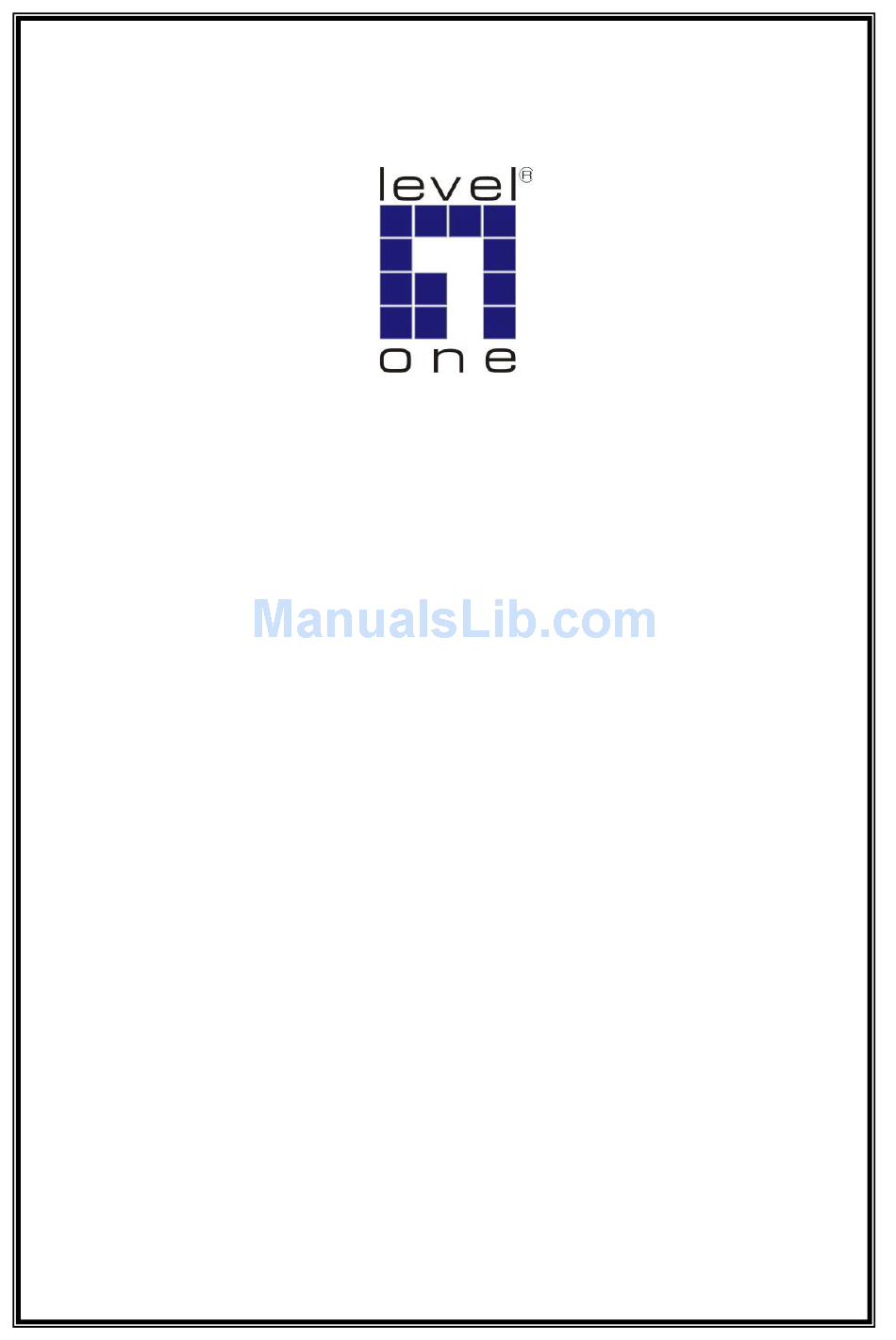

    LevelOne User Manual WBR-6020 N_Max Wireless Router Ver. 1.0...
  • Page 2 Member States relating to electromagnetic compatibility. CE Marking Warning Hereby, Digital Data Communications, declares that this product (Model-no. WBR-6020) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The CE-Declaration of Conformity can be downloaded at:...

  • Page 3: General Public License

    If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US$9.99 plus the cost of shipping.

  • Page 4: Table Of Contents

    Firmware Upgrade ... 64 Backup Setting ... 64 Reset to Default ... 64 Reboot ... 64 Miscellaneous Items ... 65 TECHNICAL SPECIFICATIONS ... 76 IP Address Password Wireless Mode Wireless SSID Wireless Security Default Settings 192.168.0.1 password Enable WBR-6020 None...

  • Page 5: Introduction

    1. Introduction Congratulations on your purchase of LevelOne WBR-6020 N_Max Wireless Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users.

  • Page 6: Unpacking And Setup

    Advanced Firewall and Traffic Priority Features.  Quick and Easy Installation Wizard  Package Contents Open the box of the N_Max Wireless Router and carefully unpack it. The box should contain the following items: WBR-6020 N_Max Wireless Router  Power Adapter ...

  • Page 7: Hardware Installation

    3. Hardware Installation Front View  Press and hold for 3 seconds to turn the Wireless LAN on or off. WLAN Button  Please confirm WLAN status as indicated by WLAN Light  A steady blinking light indicates the device is ready Status Light ...

  • Page 8: Rear View

    Rear View  Receptor for the supplied power adapter Power Jack  Connect Ethernet devices such as computers, switches or hubs. LAN Ports (1~4)  The WAN port is the connection for the Ethernet cable to the Cable or WAN Port ...

  • Page 9: Hardware Installation

    You can place your Wireless Router on a desk or other flat surface. For optimal performance, place your Wireless Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to power and network connection.
  • Page 10 3. Connect the Computer LAN cable. 4. Plug in the Power Adapter...
  • Page 11 5. Wait until the Status light is blinking steadily. This means the router is ready for use.

  • Page 12: Check Your Network Settings

    4. Check Your Network Settings Please make sure your PC can get IP address automatically so the WBR-6020 can communicate with your PC during configuration.  Select “Control Panel” > “Network Connections”.  Right click the “Local Area Connection” and choose “Properties”.

  • Page 13: Configuration Wizard

    5. Configuration Wizard Once properly configured, the WBR-6020 N_Max Wireless Router will obtain and assign IP address information automatically. Configuration settings can be established through the Web-Based Configuration Menu, or the Easy Setup Utility on the CD. Easy Setup Utility Insert the CD into your CD-ROM drive of your computer.
  • Page 14 Open a web browser (Internet Explorer/Firefox/Safari) and type in the IP Address http://192.168.0.1 Note: If you have changed the default IP Address assigned to the WBR-6020, ensure you enter the correct IP Address. Type in “password” (without quotes) in the Password box, Then click Login Note: password is the default login password for the unit.
  • Page 15 Setup Wizard will guide you through a basic configuration procedure step by step. Press Next to begin.
  • Page 16 Remember to set up the Sleep Mode to enable the Power Saving features.
  • Page 17 Once the user finishes those steps and the router screen displayed as below. It means that the Internet connection is now established.

  • Page 18: Advanced Setup

    6. Advanced Setup To access the Advanced Setup, click on Advanced Setup at the top of the page. Or, for first time installation, choose Advanced Setup and click Enter. Once in the Advanced Setup, you will be presented with the following menu.

  • Page 19: Basic Setting

    Basic Setting These are the basic settings of the unit. Click on the menu on the left to access the respective settings page.

  • Page 20: Green Function

    Green Function The Power Saving function allows you to set the time that the router enters into Sleep Mode. This means that the router can automatically power on and off at user specified times.
  • Page 21 Low Power Wireless Mode: When no wireless clients are connected to the router, it will reduce power to the radio to save power. When a device connects wirelessly to the router, it will revert to full power immediately. Sleep Mode: When Enabled, the router will follow the times set in the schedule below to enter Sleep Mode, or wake up to normal mode.

  • Page 22: Primary Setup

    Primary Setup This page lets you change the LAN (Local Area Network) settings on your WBR-6020 N_Max Wireless Router and WAN (Wide Area Network) connection. LAN IP Address: The local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway.
  • Page 23 This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start. Static IP Address: ISP assigns you a static IP address. Dynamic IP Address: Obtain an IP address from ISP automatically.
  • Page 24 PPP over Ethernet 1. PPPoE Account and Password: the account and password your ISP assigned to you. For security, this field appears blank. If you don't want to change the password, leave it empty. 2. PPPoE Service Name: Optional. Input the service name if your ISP requires it. Otherwise, leave it blank.
  • Page 25 PPTP First, please check your ISP assigned and Select Static IP Address or Dynamic IP Address. 1. My IP Address and My Subnet Mask: The private IP address and subnet mask your ISP assigned to you. 2. Server IP Address: The IP address of the PPTP server. 3.
  • Page 26 Virtual Computers (Only for Static and dynamic IP address WAN type) Used when WAN is set as DHCP or Static IP, the user can assign a global IP address to a LAN IP Address. Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address.

  • Page 27: Dhcp Server

    DHCP Server This page allows you to configure the DHCP server on the Router For more settings click on More. DHCP Server: To either Disable or Enable DHCP Server. IP Pool Starting/Ending Address: The pool of IP’s that can be allocated to clients Lease Time: DHCP lease time to the DHCP client Domain Name: To assign a Domain Name (optional) Primary DNS/Secondary DNS: To assign DNS Servers (optional)

  • Page 28: Wireless Settings

    Disable this function if you want to hide your wireless network. Channel: The radio channel number. The permissible channels depend on the Regulatory Domain. The default is AUTO which means the WBR-6020 will find the least used channel to avoid interference.
  • Page 29 / WPA2-PSK and WPA1 / WPA2. LevelOne recommends WPA2-PSK (AES) for simple and secure wireless encryption. After configuring the wireless security settings on the WBR-6020, you will also need to configure the same settings on your wireless adapter before you attempt a wireless connection.
  • Page 30 WPA-PSK, WPA2-PSK, WPA / WPA2-PSK This security is more secure compared to WEP. Please enter the key in the Preshare Key field. The field can be between 8 and 63 characters long and can be any combination of letters and numbers.
  • Page 31 802.1x and RADIUS To use this security feature, you will need to have a RADIUS server on your network to authenticate access. Please type in the details for your RADIUS server. RADIUS Server IP Address, or the RADIUS server’s domain-name. RADIUS Shared Key Key value shared by the RADIUS server and this router.
  • Page 32 WPA, WPA2, WPA1/WPA2 Similar to 802.1X security using WPA / WPA2 for encryption. You will need a RADIUS server for authentication. Please enter the details of your RADIUS server. RADIUS Server  IP address or the RADIUS server’s domain-name.  Port number of the RADIUS Server ...
  • Page 33 Set PIN number of WBR-6020 Make sure the Router is set in “Enrollee” mode. Click the “Generate New PIN” button to randomly create a new PIN number for the WBR-6020. Then click “Save” to apply the settings. Set your wireless adapter as Registrar and enter this PIN number to initiate the WPS function.
  • Page 34 Enter PIN number of Wireless Adapter It is also possible to use the PIN number you have set on the wireless adapter. Set the adapter as Enrollee and enter the PIN you want. Enter the enrollee’s (computer’s wireless adapter) PIN number and then click “Save.”...
  • Page 35 Now initiate the WPS by clicking the PIN button on the wireless adapter’s utility.
  • Page 36 Push Button Method Change the Config Method to “Push Button.” Then press the WPS button at the front of the router until the WLAN light starts flashing. This indicates that WPS is activated. Then press and hold the WPS button on your wireless client for 1 second.
  • Page 37 If your device has no physical WPS push button, then you can push the software button in the utility.
  • Page 38 For maximum compatibility, it is recommended that WDS be set up using only the same models, in this case, WBR-6020. Also note that the standard only supports WEP encryption. Click Enable to activate the WDS function.

  • Page 39: Change Password

    Change Password This page allows you to change the WBR-6020 Web Configuration password. Please type in the old password (factory default password is password) and then type in the new password. If you change the password, make sure you use the new password next time you log into the web configuration.

  • Page 40: Forwarding Rules

    Forwarding Rules This page allows you to configure the port forwarding management of the WBR-6020. Use the menu on the left to access the setting pages. The port forwarding feature is required because the Wireless Router’s NAT (Network Address Translation) will block incoming traffic from the Internet to the LAN if the specific port mapping is not set up in the NAT table.

  • Page 41: Virtual Server

    Virtual Server A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP. Virtual Server can work with Scheduling Rules, and give user more flexibility on Access control. For Detail, please refer to Scheduling Rule (Advanced Setting > Schedule).

  • Page 42: Special Ap

    Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with the WBR-6020. The Special Applications feature allows some of these applications to work with this product. If this fails to make an application work, try setting that computer as the DMZ host instead.

  • Page 43: Miscellaneous Items

    To enable DMZ, enter the IP address of the PC and tick on Enable. UPnP Setting The WBR-6020 supports Universal Plug and Play. However this depends on your operating system. IGMP setting IGMP is a protocol used for multicasting applications where the content data is transmitted from one source to a number of recipients.

  • Page 44: Security Settings

    Security Settings This section allows you to configure the security management of the unit. Click on the menu on the left to access the respective setting page.

  • Page 45: Packet Filter

    Packet Filter Packet Filters allows you to control what packets are allowed to pass through the WBR-6020. The Outbound Filter applies to all outbound packets and the Inbound Filter only applies to packets that are destined to Virtual Servers or the DMZ Host only.
  • Page 46 For source or destination IP address, you can define a single IP address (192.168.0.1) or a range of IP addresses (192.168.0.100 – 192.168.0.200). An empty implies all IP addresses. For source or destination port, you can define a single port (80) or a range of ports (1000-1999). You also need to add prefix "T"...

  • Page 47: Domain Filter

     Domain Suffix: A suffix of URL to be restricted; For example, ".com", "xxx.com".  Action: When someone is accessing the URL that meets the domain suffix, what kind of action you want the WBR-6020 to take. Tick on Drop to block the access and/or tick on Log to log this access.

  • Page 48: Url Blocking

    URL Blocking URL Blocking will block LAN computers from connecting to a pre-defined Web Site. The major difference between Domain Filter and URL Blocking is that Domain Filter requires the user to input suffixes (eg: xxx.com, ttt.net) while URL Blocking only requires user to input a keyword. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.

  • Page 49: Mac Address Control

    If a client is denied, then it means the client cannot send or receive any data via this WBR-6020. Choose “allow” or “deny” to allow or deny the clients with MAC addresses that are not in the list to associate to the wireless network.
  • Page 50 For example, Client 3 tries to use an IP address different from the address listed in the Control Table (192.168.0.5), it will be denied to connect to the WBR-6020. 5. Clients 2 and 3 and other wired clients with a MAC address unspecified in the Control table are all allowed to connect to this device.

  • Page 51: Miscellaneous Items

    Miscellaneous Items This page allows you to change various miscellaneous security settings. Administrator Timeout: The amount of time with no activity before the user will be logged out of the web configuration pages. Set to zero to disable this feature. Remote Administrator Host/Port: By default, only LAN user can browse the built-in web configuration pages to perform administration task.

  • Page 52: Advanced Settings

    Advanced Settings These pages allow you to configure the more advanced settings on the unit.

  • Page 53: System Log

    System Log The WBR-6020 supports both Syslog (using UDP packets) and E-Mail alert. For Syslog, you will need to enter the IP address of the host computer that will be receiving the syslog messages and tick on Enable. For E-Mail alert, you will need to define the following: ...

  • Page 54: Dynamic Dns

    Dynamic DNS Dynamic DNS is a feature that allows users to set up a static domain name even when they have a dynamic internet IP address. So even if your IP address changes every time you connect to your ISP, the IP address can be mapped to a host name so that anyone who wants to connect to the WBR- 6020, or any services behind the router from the internet can just use the Dynamic DNS hostname instead of the IP address which might change.

  • Page 55: Qos Rule

    Here you can set the parameters for QoS (Quality of Service). This function allows you to specify which types of data packets are given priority. For example you can increase the priority of Voice Over IP or gaming packets so that they are handled first by WBR-6020. To enable QoS Control, tick Enable.

  • Page 56: Snmp Setting

    SNMP Setting SNMP (Simple Network Management Protocol) is designed to give users the ability to remotely manage a computer or network device. To enable SNMP, please set the following:  Enable SNMP: You must check either Local or Remote or both to enable SNMP function. If Local is checked, this unit will respond to requests from LAN.

  • Page 57: Routing

    Routing When you have more than one WBR-6020, or router with different subnets on the network, you will need to enable this function to allow the different subnets to communicate with each other. There are two types of routing supported by the WBR-6020.
  • Page 58 Destination 192.168.1.0 192.168.0.0 So if, for example, Client3 wants to send an IP data packet to 192.168.0.2, it would use the above table to determine that it had to go via 192.168.123.103 (Router 2) And if it sends Packets to 192.168.1.11 will go via 192.168.123.216 (Router 1) Each rule can be enabled or disabled individually.

  • Page 59: System Time

    System Time This page allows you to set the time settings of the WBR-6020. Time Zone: Select the time zone for your location. Auto-Synchronization: The router will automatically keep sync with a NTP Time Server. Sync with Time Server: Force the router to sync with a Time Server.

  • Page 60: Schedule Rule

    Schedule Rule This feature allows you to define the time schedule of Virtual Server and Packet Filter rules. To enable Scheduling, tick Enable and click Save.
  • Page 61 Then create new rules by pressing the New Add button. Enter the Rule’s Name and set the Start and End Times for each day. Then click Save to save the new rule. Once defined, you can use it for Virtual Server and Packet Filters by entering the rule number in the “Schedule Rule#”...

  • Page 62: Toolbox

    Toolbox This section has some basic tools to maintain the WBR-6020’s systems.

  • Page 63: System Info

    System Info View the Log of the router. It can also be exported to a text file.

  • Page 64: Firmware Upgrade

    To use, click Browse and locate the firmware image file, then click Upgrade. Note: Please connect to the WBR-6020 using a wired LAN connection as if the connection breaks during the update, it will render the unit unworkable. Also disable any anti-virus or firewall program before beginning the update.

  • Page 65: Miscellaneous Items

    Miscellaneous Items MAC Address for Wake-on-LAN Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55.
  • Page 66 Equipment Details PC1: Microsoft Windows XP Professional without Service Pack 1 and LevelOne Wireless PCI Card PC2: Microsoft Windows XP Professional with Service Pack 1a or later and LevelOne Wireless PCI Card. Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix Q313664.
  • Page 67 DUT and Windows 2000 Radius Server Setup Setup Windows 2000 RADIUS Server We have to change authentication method to MD5_Challenge or using smart card or other certificate on RADIUS server according to the test condition. Setup DUT 1. Enable the 802.1X (check the “Enable checkbox“). 2.
  • Page 68 Windows 2000 RADIUS server Authentication testing: DUT authenticate PC1 using certificate. (PC2 follows the same test procedures.) 1. Download and install the certificate on PC1. (Fig 4) 2. PC1 chooses the SSID of DUT as the Access Point. 3. Set authentication type of wireless client and RADIUS server both to EAP_TLS. 4.
  • Page 69 Figure 6: Authentication success DUT authenticate PC2 using PEAP-TLS. 1. PC2 chooses the SSID of DUT as the Access Point. 2. Set authentication type of wireless client and RADIUS server both to PEAP_TLS. 3. Disable the wireless connection and enable again. 4.

  • Page 70: Appendix B Faq And Troubleshooting

    Appendix B FAQ and Troubleshooting What can I do when I have some trouble at the first time? 1. Why can’t I configure the router even if the cable is plugged in the ports of Router and the LED is also lit? A: First, make sure that which port is plugged.
  • Page 71 2. Why can’t I connect the router even if the cable is plugged in LAN port and the LED is light? A: First, please check Status LED. If the device is normal, the LED will blink once per second. If not, please check the blinking Status LED as shown: Status LED stays constantly on or off: The system is frozen.
  • Page 72 4. Why can I not connect to the Internet even though the cables are plugged in WAN port and LAN port and the LEDs are blink? In addition, the Status LED is also normal and I can configure the web management? A: Make sure that the network cable from DSL or Cable modem is plugged in WAN port of Router and that the network cable from LAN port of router is plugged in Ethernet adapter.
  • Page 73 1. How to start to use wireless? A: First, make sure that you already installed wireless client device in your computer. Then check the configuration of wireless router. The default is below: About wireless client, you will see wireless icon:...
  • Page 74 Then click and will see the AP list that wireless client can be accessed: If the client cannot find your wireless router, please refresh network list again. Choose the one that you will want to connect and connect: If successfully, the computer will show something similar.
  • Page 75 2. How can I use AES encryption of WPA-PSK to connect? A: First, you must check if the driver of wireless client supports AES encryption. Please refer to the below: If SSID is default and click “Properties” to check if the driver of wireless client supports AES encryption.

  • Page 76: Technical Specifications

    Technical Specifications Model WBR-6020 N_Max Wireless Router Data Transfer Rate 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps Max physical rate up to 300 Mbps in 802.11n mode 802.11b: 17±2dBm Transmit Power 802.11g: 15±2dBm 802.11n: 14±2dBm Frequency Range America/ FCC: 2.412~2.462GHz (11 Channels)
