Datalogic Joya Touch 22 User Manual

Multi-purpose device for retail
Hide thumbs Also See for Joya Touch 22:
Table of Contents

Advertisement

Quick Links

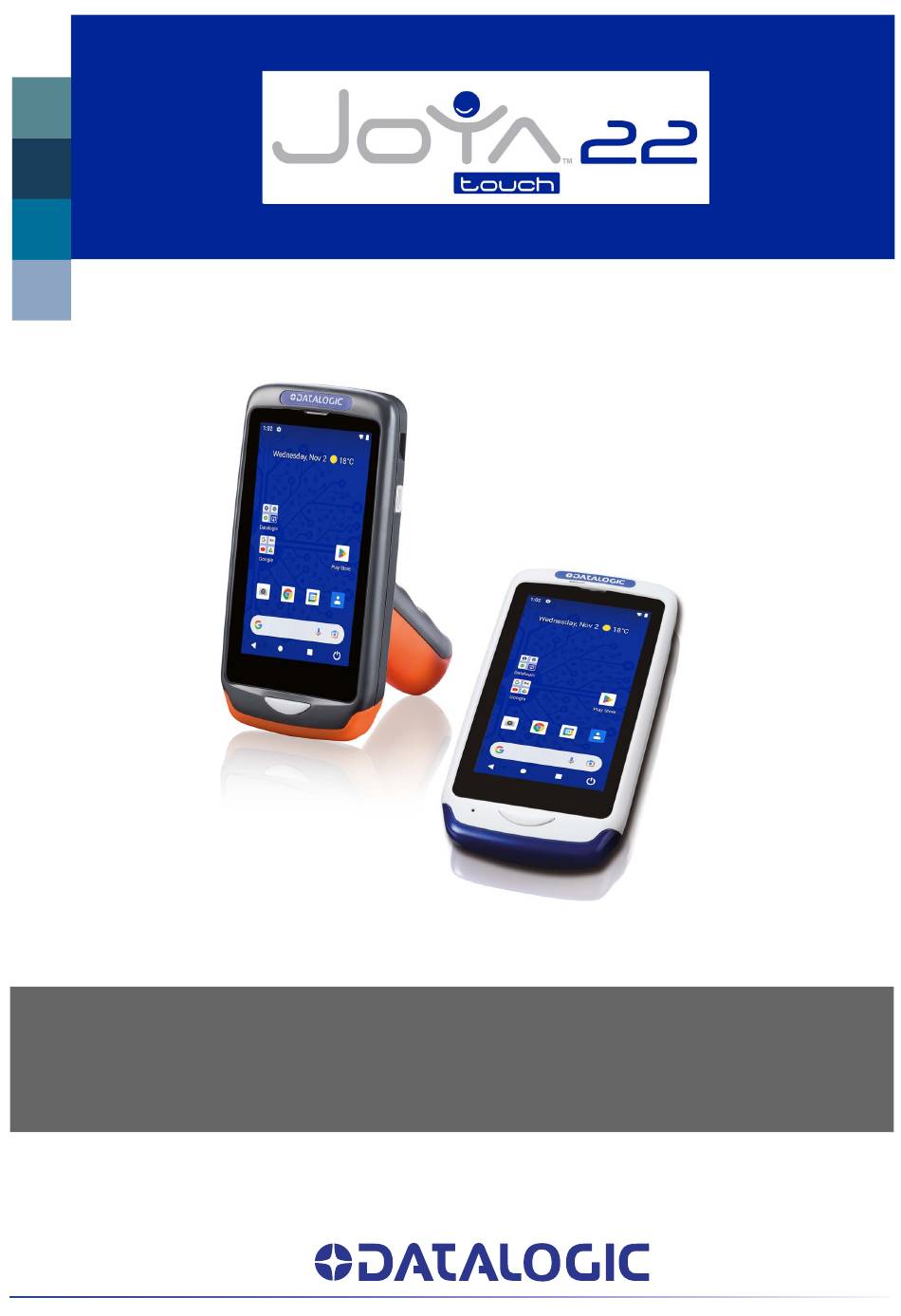

USER'S MANUAL
Multi-Purpose Device for Retail

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Joya Touch 22 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Joya Touch 22

Summary of Contents for Datalogic Joya Touch 22

  • Page 1 USER’S MANUAL Multi-Purpose Device for Retail...
  • Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. and the E.U. All other trademarks and brands are property of their respective owners.

  • Page 3: Table Of Contents

    Suspend .............................22 Power ..............................23 Ship Mode ............................23 Screenshot ............................23 Adjust Volume ...........................23 Applications ........................24 Datalogic Applications ........................24 Android Applications .........................25 Touch Gestures ......................26 Reset the Device ......................27 Configuration Reset ..........................27 Reset Wi-Fi & Bluetooth ......................27 Reset App Preferences ......................27 Factory Reset ..........................28...
  • Page 4 Screen Timeout ......................... 63 Auto-Rotate Screen ........................63 Font Size ............................ 63 Display Size ..........................64 Screen Saver ..........................64 Lock Screen Display ......................... 64 Touch Mode ........................64 Recovery Mode .......................65 DATALOGIC APPLICATIONS ..................66 Scan2Deploy ........................66 JOYA™ TOUCH 22...
  • Page 5 USB ADB Driver ......................86 SDK Add-on ........................86 Install ADB Driver ..........................86 Create a New Application based on Datalogic SDK Add-on with Android Studio ......87 Datalogic SDK ........................ 87 Datalogic OEMConfig ...................... 87 Wi-Fi QR Code Generator ....................87 DATA CAPTURE......................
  • Page 6 CONTENTS Wi-Fi Connection ......................90 Bluetooth® Serial Connection ..................91 Wireless and Radio Frequencies Warnings ...............92 TECHNICAL FEATURES .................... 93 Technical Data .......................93 TEST CODES......................96 MAINTENANCE ...................... 100 Cleaning ........................100 Ergonomic Recommendations ..................100 SAFETY AND REGULATORY INFORMATION ............. 101 General Safety Rules ....................

  • Page 7: Introduction

    The new Joya Touch 22 is perfectly designed for the retail environment, is not only ideal for running customer facing applications such as Self-Shopping, Queue Busting and Gift...
  • Page 8 Enables precise indoor location with Quuppa Intelligent Locating System™, real- time positioning using Quuppa AI and Bluetooth® interoperability. In terms of connectivity, the new Joya Touch 22 takes the lead with outstanding perfor- mance, optimized for indoor retail environments where wireless networks are affected by various types of interference and obstacles.

  • Page 9: Available Models

    INTRODUCTION AVAILABLE MODELS The Joya Touch 22 is available in different models depending on the features it is equipped with. All options are listed below: • 911400001 JOYA TOUCH 22 PISTOL-GRIP, 802.11 A/B/G/N/AC, BT 5.1, 2D MEGAPIXEL IMAGER W/ WHITE ILLUM. & GREEN SPOT, 4.3" FULL TOUCH, VOIP, PRESENTATION MODE, ANDROID 11, GMS, 4GB RAM/32 GB FLASH, GREY/BLUE/ BLUE, FCC &...

  • Page 10: Out Of The Box

    INTRODUCTION OUT OF THE BOX The Joya Touch 22 package contains: • Joya Touch 22 (device with battery included) • Quick Start Guide • Safety & Regulatory Addendum Remove all the components from their packaging; check their integrity and compare them with all the packing documents.

  • Page 11: General View

    INTRODUCTION GENERAL VIEW Top View Data Capture Window Front View Touch Panel Display Scan Key USER’S MANUAL...

  • Page 12: Side View

    INTRODUCTION Side View Handheld Models Pistol Grip Models Port type USB-C Scan Trigger Back View Laser Safety Label Product Label Power Key JOYA™ TOUCH 22...

  • Page 13: Accessories

    INTRODUCTION ACCESSORIES Cradles 91ACC0043 Joya Touch 3-Slot Cradle for Wall Mounting. Requires power supply, line cord and wall bracket 91ACC0096 Joya Touch 3-Slot Cradle, without user lights, for wall mounting. requires power supply, line cord and wall bracket 91ACC0069 Joya Touch Retail 3-Slot Cradle for general purpose; it contains 1 unlocking key and 1 pair of desktop feet.
  • Page 14 Power Cord, IEC C13, Black Argentina, ROHS 94ACC0327 Cable, USB Type-A to USB Type-C NOTE: Use only Datalogic-approved power supply and cables. Use of an alternative power supply will invalidate any approval given to this device and may be dangerous.

  • Page 15: Charging Instructions

    CHARGING INSTRUCTIONS The Joya Touch 22 is provided with the battery pack already installed and configured in Ship Mode at the factory. To wake the device from Ship Mode, connect it to a power supply or insert it into a dock (for more information, see the Getting Started section of the Joya Touch 22 User’s Manual).

  • Page 16: Single Slot Dock Locking Led Indicators

    CHARGING INSTRUCTIONS Single Slot Dock Locking LED Indicators Status Power On (Green LED) Solid green for 3 seconds Dock bootstrap: cradle application started. Dock standby (if the standby LED is enabled): the dock is Short blink every few powered and ready, no device inserted. You can enable/dis- seconds able the standby LED feature from DL Cradle Manager.

  • Page 17: Charge With The Single Slot Dock Charge Only

    First plug the power supply into the power jack on the back of the dock, then plug the power supply into a power outlet. You can also use the Type-A/Type-C cable (p/n 94ACC0327) to charge the Joya Touch 22 from any self-powered USB hub or USB port on a computer.

  • Page 18: Charge With The 3-Slot Cradle

    Plug the power supply cable into the power connector on the back of the cradle, then plug the power supply into the AC/DC plug using a Datalogic power cable. Please see below an example of how to insert the power supply cable through the wall mounting metal bracket.
  • Page 19 Touch 3-Slot Cradle Quick Start Guide, included in the cradle’s box, and to the Joya Touch 3-Slot Cradle Installation Guide, downloadable from our website www.datalogic.com. CAUTION: Do not put any foreign object such as, but not limited to, coins, paper clips, stickers inside the slot of any of the docks (see the examples below).

  • Page 20: 3-Slot Cradle Led Indicators

    CHARGING INSTRUCTIONS 3-Slot Cradle LED Indicators Status Power On (Blue LED) Solid blue Dock is powered. User LED (Green LED) Green dimming anima- tion Cradle application start. (all slots in sequence) Flash green for 300 ms Device properly locked in. (single slot) Could notify that the slot is unlocked (if programmed to use Solid green (single slot)

  • Page 21: Charge With Usb

    CHARGING INSTRUCTIONS CHARGE WITH USB Use the Datalogic USB-C type power supply (sold separately, p/n 94ACC0329) to charge the device from a power outlet. USER’S MANUAL...

  • Page 22: Battery Information

    Close to the limits of the working temperature, some battery performance degradation may occur. The Joya Touch 22 should be charged at an ambient temperature between 5 - 35º C (41 to 95ºF) to achieve the maximum charging rate. Never charge the device battery in a closed space where excessive heat can build up.

  • Page 23: Battery Safety Guidelines

    Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy. To power the cradle, use only a Datalogic approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, an explosion, or fire.
  • Page 24 CHARGING INSTRUCTIONS WARNING: Do not replace the battery pack when the device is turned on. Do not remove or damage the battery pack’s label. Do not use the battery pack if it is damaged in any part. Battery pack usage by children should be supervised. JOYA™...

  • Page 25: Getting Started

    GETTING STARTED TURN ON THE DEVICE To turn on the Joya Touch 22, press and hold the Scan Key or the Scan Trigger (for Pistol Grip models) for at least 4 seconds. HOME SCREEN Notification/ Status Bar Datalogic Apps Google Apps...

  • Page 26: Status Bar Icons

    GETTING STARTED Status Bar Icons Wi-Fi is on. Battery is low. Wi-Fi not connected. External power source is connected. Connected to a Wi-Fi network. The Battery is full. side number refers to the WiFi standard type. Wi-Fi connected no internet. Battery is partially drained.

  • Page 27: Setup Wizard

    For Datalogic devices, the enrollment process has been enhanced to include additional properties in the QR code and the option to encrypt the QR code. These Datalogic spe- cific options can be configured using the Android Enterprise QR Code Generator.

  • Page 28: Power Menu

    Tap Suspend to turn the screen off and lock the terminal in order to save battery power. Also, the Joya Touch 22 automatically enters suspend mode when inactive for a pro- grammed period of time. To set the timeout limit, see "...

  • Page 29: Power

    GETTING STARTED Power Power to turn off or restart the terminal. When you turn off the terminal, the ses- sion you are working on expires and it won't be possible to restore it. Alternatively, you can shut down the device by pressing and holding the power key with a metallic clip for about 10 seconds.

  • Page 30: Applications

    GETTING STARTED APPLICATIONS All Apps screen displays icons for all installed applications. The tables below list the default applications installed on the Joya Touch 22. Datalogic Applications Icon Description Scan2Deploy - Configuration tool (see "Scan2Deploy" on page 66). Datalogic Settings - See "Datalogic Settings"...

  • Page 31: Android Applications

    GETTING STARTED Android Applications Icon Description Calculator - Provides the basic and scientific arithmetic functions. Calendar - Lets you manage events and appointments. Chrome - Google’s own web browser. Use it to access the Internet or intranet. Clock - Lets you schedule alarms for appointments or as a wake-up. Contacts - Allows you to manage contacts information.

  • Page 32: Touch Gestures

    GETTING STARTED Icon Description Settings - Use it to configure the Joya Touch 22 (see "Settings" on page 31). Sound Recorder - Tool for recording the sound and editing the saved recordings. Wallpaper - Use it to select wallpapers. Youtube - Google's own video-sharing website...

  • Page 33: Reset The Device

    GETTING STARTED RESET THE DEVICE Configuration Reset Configuration reset sets the configuration of the device (all its settings) to a known sta- tus: the factory status or an enterprise-user-defined status. Reset Wi-Fi & Bluetooth Resets all network settings. 1. Tap Settings >...

  • Page 34: Factory Reset

    GETTING STARTED Factory Reset Brings the device to the default configuration, clearing all user-customized settings. Settings System Advanced Reset options Erase all data (factory 1. Tap > > > > reset). Erase all data. 2. Tap Enterprise Reset Enterprise Reset brings the device to an enterprise-user-defined configuration, clearing all data and settings except the ones persisted by the enterprise system applications in enterprise flash partition and in the...

  • Page 35: Device Reset

    GETTING STARTED Device Reset Device reset restarts the device. Soft Reset Restarts Android Operative System through an Android API function. It is generally used when some applications stop responding, or it is automatically issued by Android after a Configuration reset. 1.

  • Page 36: Led Indicators

    GETTING STARTED LED INDICATORS The LEDs illuminate to indicate various functions or errors on the device. The following table lists the default indications. The good read LED indicator is programmable, and may or may not be enabled (" for more details). The Scanner &...

  • Page 37: Settings

    SETTINGS OVERVIEW Settings app allows you to check or set system parameters to customize your device. To open the Settings screen, tap the Settings icons on the All Apps screen. USER’S MANUAL...

  • Page 38: Datalogic Settings

    SETTINGS DATALOGIC SETTINGS Datalogic Settings app allows you to configure scanner and decoder, control power and source behaviour, configure keyboard, trigger and mappings, set cradle behaviour and policies, WiFi roaming and channel, configure USB data and features, touch mode settings, NTP server address status and navigation bar, update device firmware and d1splay device information.

  • Page 39: Notification

    Enable Display Notification Enables display notifications (toasts). If cleared, the scanner is disabled until you launch a scanner listener application developed using the Datalogic SDK or enable a keyboard/ intent wedge. Good Read Audio Mode Sets the audio tone to: •...

  • Page 40: Good Read

    SETTINGS • Viper beep • Baroque beep Audio file Good read audio file is selected, the option displays. Tap it to select the file you want to use as good read ringtone. NOTE: The Notification settings do not apply to an audio file. Good Read Audio Channel Allows to select he audio channel to be used for scanner notifications.

  • Page 41: Formatting

    SETTINGS Formatting Standard Formatting Allows to format the barcode text by enabling and configuring the use of prefix, suffix, group separator and code identifier: Label Prefix Label prefix Add special to enter the characters you will be using as prefix. Tap select a special character to be added in the current cursor position: Label Suffix Label suffix...
  • Page 42 AIM ID is inserted at the beginning of the decoded barcode. DLM identifier is a Datalogic specific character identifier. User defined identifier is a user specific character identifier you can set in the related symbology settings menu.
  • Page 43 Use Human Readable GS1 Format Enables conversion of GS1 barcodes to the readable GS1 string format when the bar- code is compliant with GS1 format. Visual Formatting Enable to set up barcode visual formatting. For more details, refer to https://datalogic.github.io/scan2deploy/visual-formatter- basic-concepts. USER’S MANUAL...

  • Page 44: Scanner Options

    SETTINGS Scanner Options Scanner Options to customize the Joya Touch 22 scanning behavior. Enhance DoF If enabled, allows to enhance the maximum reading distance. JOYA™ TOUCH 22...
  • Page 45 SETTINGS Enable Picklist If enabled, it allows you to pick and decode a barcode from multiple barcodes printed close together, when the scan illumination intersects more than one barcode. Only the targeted barcode will be returned. Enable Illumination If enabled, it causes the scanner to turn on the illumination to aid decoding. Enable Aim Enables the laser aim.
  • Page 46 SETTINGS Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the mini- mum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the sec- ond read of the label will be ignored.
  • Page 47 SETTINGS Image Decode Timeout You can share any image (picture, jpg/png, etc.) with the Datalogic Service to try to Image decode timeout decode it. Drag the slider to set the decode timeout applied with image decoding. Enable Multi Scan If selected, the scanner captures multiple labels sequentially.

  • Page 48: Wedge

    SETTINGS Wedge Use it to enable or disable the keyboard wedge and the intent wedge: Enable Keyboard Wedge Enables/disables the keyboard wedge mode. Keyboard Wedge Only on Focus If selected, the scanner is enabled whenever a text area is in focus and can receive text. It provides a safer way to input keystrokes into the foreground application, allowing to send captured data in the form of key events only to the current text area with active keyboard input.
  • Page 49 SETTINGS Keyboard Wedge Input Mode Allows to select the scanned data input mode. Text Injection The scanned barcode is injected into the text area. Key Pressure The scanned barcode is translated into keyboard strokes. Commit Text The printable characters are injected into the text area, emulating the pressure of key- board keys for non-printable keys.

  • Page 50: Symbology Settings

    SETTINGS Symbology Settings Each barcode symbology can be customized with additional settings that may affect that specific barcode decoding. Tap Symbology settings to configure symbology decoding options: Refer to the sample symbology control panels for examples of the types of fields and options you can modify.
  • Page 51 SETTINGS Advanced Barcode Options Linear Quiet Zones Linear quiet zones to reduce the blank margin on either side of a linear barcode. Inverted Decoding Defines the decoding mode for regular/reverse barcodes for both 1D and 2D barcodes: USER’S MANUAL...

  • Page 52: Scan Engine Information

    SETTINGS Scan Engine Information Provides information on the scan engine. Configuration Use this section to change symbologies settings globally and to persist them. Enable All Symbologies Enables all barcode symbologies. Disable All Symbologies Disables all barcode symbologies. JOYA™ TOUCH 22...

  • Page 53: Power & Sources

    You have two options to set the suspend timeout (see " for more Suspend" on page 22 information on Suspend Mode): 1. Tap Settings > Datalogic Settings > Power & sources: • External power sets the number of seconds without user input activity before the system is suspended while running on external power.

  • Page 54: Charging Policies

    Tap Reset configuration to reset the settings to default. Tap Commit to confirm the new configuration. Wake-Up Policies The default wake-up sources are the front trigger and the pistol trigger. Tap Settings > Datalogic Settings > Power & sources > Wake-up sources to enable/disable wake-up sources.

  • Page 55: Keyboard & Triggers

    SETTINGS Keyboard & Triggers Lock Keyboard Input If enabled, it locks user input from the keyboard. Key Remapping Key remapping to remap an input key, then press the key you want to remap. The following window displays on screen: • Scancode represents the physical location of a keyboard key.
  • Page 56 SETTINGS ADD A NEW MAPPING. A window displays showing the new keymap. Unicode Select Unicode to remap a key to display Unicode characters (such as symbol "$"): Press the Back Button on the navigation bar and then tap ADD A NEW MAPPING.

  • Page 57: View All Remapped Keys

    The physical triggers are enabled by default. Auto Scan Trigger The Joya Touch 22 has a proximity sensor able to detect the presence of nearby objects without any physical contact. If enabled, Auto Scan Trigger Enable allows to automati- cally read barcodes without pressing the trigger button.

  • Page 58: Advanced Keyboard Settings

    SETTINGS Motion Trigger Motion Trigger Enable is selected, the scan engine will be enabled as vigorous motion is detected. A vibration notifies you that the scan engine is enabled and ready to scan a barcode. Select/clear the Vibrate When Motion Detected check box to enable/disable this notifi- cation.

  • Page 59: Wi-Fi

    SETTINGS Wi-Fi Wi-Fi Scan Use the Wi-Fi scan Settings to set the interval between scans when the device is con- nected and when it is disconnetted. Wi-Fi Module Use the Wi-Fi module settings to select the 802.11 mode and the band, and to enable/ disable power save and the verbose Wi-Fi module logging.

  • Page 60: Wi-Fi Roaming

    SETTINGS Wi-Fi Roaming The roaming RSSI threshold is a CPS configurable parameter, that controls the signal strength a radio needs to see before searching for another site. The roaming RSSI difference controls the signal difference between the current access point the device is connected to and the target access point the device wants to roam to.

  • Page 61: Usb

    SETTINGS Use the settings to set the USB function (None, MTP, PTP, MIDI). Touch Mode Touch Mode Use the settings to adjusts touch-screen sensitivity for input with a bare, a gloved finger or a stylus. USER’S MANUAL...

  • Page 62: System Update

    To transfer the OTA package from your PC to the Joya Touch 22, follow the steps below: 1. Connect the device and the PC via USB cable (see "...
  • Page 63 20% if the Joya Touch 22 is not connected to a power source; • battery level is more than 15% if the Joya Touch 22 is connected to a power source (USB or dock). USER’S MANUAL...

  • Page 64: Device Information

    SETTINGS Device Information The Device info screen displays information about the device including: serial number, scan engine, sdk, system versions. JOYA™ TOUCH 22...

  • Page 65: Network & Internet

    If the device finds a network that you connected to previously, it will connect to it auto- matically. 2. Tap Wi-Fi. The Joya Touch 22 scans for available Wi-Fi networks within range and lists them. Secured networks are indicated with a lock icon.

  • Page 66: Add A Wi-Fi Network

    SETTINGS 3. Select the network name you want to connect to from the available network list. 4. If the network is open, tap the profile and then tap Connect, or press and hold and then select Connect. If the network is secured, a dialog box appears requesting information relevant to the network security protocol (e.g., password, key, or certificate).

  • Page 67: Connected Devices

    SETTINGS CONNECTED DEVICES Bluetooth Settings To create a Bluetooth® pairing between your device and another device that has Blue- tooth® capabilities, ensure that the two devices are turned on, discoverable, and within operable range. Enable Bluetooth® To turn on the Bluetooth®, tap Settings >...

  • Page 68: Configure, Rename Or Unpair Bluetooth® Devices

    SETTINGS 3. Make sure both devices show the same passkey and tap Pair. 4. The selected Bluetooth® device is added to the Previously connected devices list and a paired connection is established. Configure, Rename or Unpair Bluetooth® Devices Settings > Connected devices >...

  • Page 69: Display

    SETTINGS DISPLAY Use the Display settings to set the screen brightness and theme, enable night light, change the background image and the screensaver, enable screen rotation, set display and font size. Brightness Level Use the slider to adjust the screen brightness level. Dark Theme Tap to enable black background.

  • Page 70: Display Size

    SETTINGS Display Size Tap to set the size of the items on your screen. Screen Saver Tap to select the screen saver, set the style (Analog or Digital) and time (When to start), Night mode. or enable the Lock Screen Display Tap to customize your lock screen.

  • Page 71: Recovery Mode

    1. Install ADB driver (see " Install ADB Driver" on page 86 2. Connect your Joya Touch 22 to a PC via USB. Make sure USB Debugging is enabled in Developer Settings. 3. Launch a command prompt window and ‘cd’ to the ADB directory.

  • Page 72: Datalogic Applications

    For more details, visit the website: https://datalogic.github.io/scan2deploy. DATALOGIC LAUNCHER Datalogic Launcher is an Android application used to lock down the device to launch only allowed applications. It can also limit access to several system device features, such as the Overview button (for switching apps) and the Global Actions dialog (for restarting the device).

  • Page 73: Softspot

    DATALOGIC APPLICATIONS SOFTSPOT™ Datalogic’s SoftSpot technology is a user-definable "floating soft trigger" meant to pro- vide easy access to the barcode scanner application and other frequently used function- alities on mobile scanning devices. Tap the SoftSpot icon on the favorites tray or on the All Apps screen to launch SoftSpot: Tap the SoftSpot to scan barcodes.

  • Page 74: Swipe To Hide

    DATALOGIC APPLICATIONS Swipe to hide If enabled, it allows to hide the SoftSpot from the screen by swiping it up in the Notifica- tion/Status bar. Vibrator Enables the vibrator. Auto-transparency If enabled, the SoftSpot turns transparent automatically when it is not used.

  • Page 75: Images

    DATALOGIC APPLICATIONS To remove an application from the actions list, tap and swipe right. Images Normal Image and/or Decoded Image to change the SoftSpot images. You have six options: three default images and three custom images. Display Decoded Image For Sets the duration of the decoded image.

  • Page 76: Enable Continuous Scan On Double Tap

    DATALOGIC APPLICATIONS Enable Continuous Scan on Double Tap To enable the Continuous Scan mode and scan barcodes consecutively, switch right and then double-tap the SoftSpot. Tap one more time to stop laser emission. Continuous Delay Allows to set the continuous delay time.

  • Page 77: Datalogic Enterprise Browser

    DATALOGIC APPLICATIONS DATALOGIC ENTERPRISE BROWSER Datalogic Enterprise Browser is an Android application used for web browsing to only allowed websites. It also includes a JavaScript interface which exposes access to the bar- code scanner. These features combine to allow the device to run web-based applica- tions which need to access the scanner in a safe, controlled environment.

  • Page 78: Dock Manager

    Below are some screenshots showing different cradle options: If the Joya Touch 22 is inserted into the Single Slot Dock Locking or into the 3-Slot Cra- dle, you can unlock and lock the device without using the unlock key, by tapping the...

  • Page 79: Settings

    DATALOGIC APPLICATIONS Settings Unlock Notification If enabled, it allows you to unlock the cradle from the Power Menu and the Status Bar. Wrong Insertion Timeout You can set the time lapse after which a "wrong insertion" notification is sent. Tap Wrong insertion timeout [ms] and digit your desired insertion timeout.

  • Page 80: Favourite Cradle Firmware

    DATALOGIC APPLICATIONS Favourite Cradle Firmware Favourite cradle firmware to select the cradle firmware. Unlock Timeout You can set the time available to the user to remove the cradle after tapping the UNLOCK button. Tap Unlock timeout [s] to set your desired unlock timeout (5 by 5 sec-...

  • Page 81: Battery Manager

    DATALOGIC APPLICATIONS BATTERY MANAGER This application provides information about the battery features and status, allows to configure the battery charging profile and to log battery data. All Apps > Battery Manager icon, then tap the menu icon on the top left corner of the screen, or swipe right to display the menu.

  • Page 82: Battery Info

    DATALOGIC APPLICATIONS Battery Info Battery Info section provides information about the battery’s health, capacity, man- ufacturer, level and charging status. Battery Info - Realtime This window provides real-time information about the battery. Discharging Mode Charging Mode The top section shows the battery level and the time left to full discharge (when in dis- charge mode) and to full charge (when in charge mode).

  • Page 83: Battery Info - Lifetime

    DATALOGIC APPLICATIONS Battery Info - Lifetime This window displays information and statistics about battery life, health and usage over its whole life cycle. Health Shows the current battery health and warns potential errors. State of Health Shows the current battery's health level.

  • Page 84: Battery Info - Manufacturer

    DATALOGIC APPLICATIONS Battery Info - Manufacturer This window displays the model name, the type, the nominal capacity, the serial num- ber, the product number and the manufacture date of the battery. JOYA™ TOUCH 22...

  • Page 85: Charging Profile

    DATALOGIC APPLICATIONS Charging Profile Charging Profile - Setup This window allows to customize the charging process according to the user's needs and priorities. To configure a charging profile, select 1 or 2 of the following preferences: • Battery Lifetime. •...

  • Page 86: Data Logging

    DATALOGIC APPLICATIONS Data Logging The data logging feature allows to collect, store, display and analyze minute-by-minute battery data. Setup Use the Setup window to select the data you want to log. The data logging is disabled by default. To enable it, tap Enable Data Logging.

  • Page 87: Manage

    DATALOGIC APPLICATIONS Manage Manage window allows to remove or export logs. Select one or more logs and tap Remove to remove them. Tap to confirm: Export Select one or more logs and tap to export data and store them for extended peri- ods.

  • Page 88: Application

    Settings section allows to set the value ranges that will be used to create the graphs. If you charge the Joya Touch 22 with a wireless charging pad, you’re not allowed to cus- tomize the charging profile. If the Show Wireless Pad Notification check box is selected, the system displays a warn- ing message saying that the charging profile won’t be applied.

  • Page 89: Dl Ringtone Editor

    DATALOGIC APPLICATIONS DL RINGTONE EDITOR DL Ringtone Editor allows to create, edit and save your own ringtones and notifications. Enter the name for the new ringtone in the Ringtone Name field and tap to add the first note. Set the note, the duration and the octave by selecting the desired options. You can also set the BPM and the style.

  • Page 90: Note Auto-Increment

    DATALOGIC APPLICATIONS Note auto-increment If enabled, you can add a new note without tapping the button Play single note Select to play notes while editing. Clear notes Clears all the notes. Set as Good Read Set the ringtone as good read notification.

  • Page 91: Datalogic Logger

    DATALOGIC APPLICATIONS DATALOGIC LOGGER Datalogic Logger is an Android application designed to collect information logged by various software components to assist in diagnosing issues. Once started, it runs in the background with minimal impact to device performance. When complete, an archive of the results is generated, which can be exported from the device for further study.

  • Page 92: Tools

    TOOLS Refer to the Datalogic Mobile Computers Software Tools main page to find more detailed and up-to-date information: https://datalogic.github.io/. USB ADB DRIVER USB connection allows to read and write files on both the internal storage memory and the external storage memory, but doesn’t allow to install applications.

  • Page 93: Create A New Application Based On Datalogic Sdk Add-On With Android Studio

    TOOLS Create a New Application based on Datalogic SDK Add-on with Android Studio For information and instructions to configure Datalogic SDK Add-on in Android Studio, refer to the website: https://datalogic.github.io/android/overview. DATALOGIC SDK For information on the Datalogic SDK APIs, visit the web site: https://data- logic.github.io/android/overview.

  • Page 94: Data Capture

    DATA CAPTURE The Joya Touch 22 has an integrated imager that collects data by scanning bar codes. See " for instructions on configuring the scanner settings. Scanner & Decoder" on page 32 IMAGER DATA CAPTURE The imager uses digital camera technology to take a digital picture of a bar code, the image is stored in memory and software decoding algorithms are executed to extract the data from the image.

  • Page 95: Connections

    USB CONNECTION USB Direct Connection You can use the USB Type A to Type-C cable (sold separately, p/n 94ACC0327) to directly connect the Joya Touch 22 to a host computer and transfer data through the USB inter- face. Host Computer...

  • Page 96: Wi-Fi Connection

    CONNECTIONS WI-FI CONNECTION The Joya Touch 22 has a IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc WLAN (Wireless Local Area Network) radio and can communicate with other IEEE 802.11 a/b/ g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc Wi-Fi compliant products including access points, workstations via PC card adapters and other wireless portable devices.

  • Page 97: Bluetooth® Serial Connection

    CONNECTIONS BLUETOOTH® SERIAL CONNECTION The Joya Touch 22 can communicate with a Bluetooth® device, such as a printer, within a range of 10 m, using the on-board Bluetooth® module. NOTE: In order to extend battery life, the Bluetooth® module is off by default.

  • Page 98: Wireless And Radio Frequencies Warnings

    RF signals generated by JOYA TOUCH 22. Datalogic recommends persons with pacemakers or other medical devices to follow the same recommendations provided by Health Industry Manufac- turers Associations for mobile phones.

  • Page 99: Technical Features

    TECHNICAL FEATURES TECHNICAL DATA ITEM DESCRIPTION PHYSICAL CHARACTERISTICS Top case and battery cover (both handheld and pistolgrip models) and Scan Color Customization Trigger (pistol-grip models) are available in various standard or custom colors Enclosures: Light Grey; Dark Grey and Black; Colors (Standard) Battery Covers: Blue;...
  • Page 100 Scan2Deploy Studio; Android Zero-Touch; QR Code Enrollment Configuration and Maintenance Scan2Deploy Studio; OEM Config; ProfileManager; Wi-Fi QR Code Generator Datalogic Android SDK; Xamarin SDK; Ionic Cordova SDK; React Native SDK; Development Datalogic Enterprise Browser Javascript SDK Soti MobiControl; VMWare Airwatch; Ivanti Avalanche;...
  • Page 101 4.5 to 42.0 cm / 1.7 to 16.5 in on UPC/EAN 13 Resolution (Maximum) 1D Linear: 2.5 mils; Data Matrix: 6 mils; PDF417: 3 mils Loudspeaker (Polyphonic); Datalogic’s ‘Green Spot’ technology for visual Reading Indicators good-read feedback SAFETY & REGULATORY...

  • Page 102: Test Codes

    TEST CODES High Density Codes - 0.25 mm (10 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test EAN 13 EAN 8 JOYA™ TOUCH 22...
  • Page 103 TEST CODES Medium Density Codes - 0.38 mm (15 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test 100% EAN 13 100% EAN 8 USER’S MANUAL...
  • Page 104 TEST CODES Low Density Codes - 0.50 mm (20 mils) Code 39 17162 Interleaved 2/5 0123456784 Code 128 test 120% EAN 13 120% EAN 8 JOYA™ TOUCH 22...
  • Page 105 TEST CODES 2D Codes Datamatrix ECC200 Example Inverse Datamatrix ECC200 Example USER’S MANUAL...

  • Page 106: Maintenance

    CLEANING Periodically clean the Joya Touch 22 device, the Joya Touch Single Slot Docking and the Joya Touch 3-Slot Cradle using a soft cloth slightly dampened with only water, or alter- natively with Isopropyl Alcohol (70%), Bleach (diluted 10:1) or Hydrogen Peroxide (stabi- lized, 3%).

  • Page 107: Safety And Regulatory Information

    Use only the components and accessories supplied by the manufacturer for the specific Joya Touch 22 being used. • Do not attempt to disassemble the Joya Touch 22 device, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. •...

  • Page 108: Technical Support

    A reseller is acquainted with specific types of businesses, application software, and computer systems and can provide individualized assistance. REFERENCE DOCUMENTATION For further information regarding Joya Touch 22 refer to the SDK Help on-line and to the Joya Touch 22 User’s Manual, downloadable from our developer portal: https://developer.datalogic.com/mobile-computers.
  • Page 109 IN ANY PRODUCT DELIVERED BY DATALOGIC SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT ON WHICH THE CLAIM IS BASED. DATALOGIC SHALL NOT BE LIABLE FOR DAMAGES RELATING TO ANY INSTRUMENT, EQUIPMENT, OR APPARATUS WITH WHICH THE PRODUCT SOLD UNDER THIS AGREEMENT IS USED.

  • Page 110: Glossary

    GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (mobile computer) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired net- work.
  • Page 111 GLOSSARY Character A pattern of bars and spaces which either directly represents data or indicates a control function, such as a number, letter, punctuation mark, or communications control con- tained in a message. Decode To recognize a barcode symbology (e.g., Codabar, Code 128, Code 3 of 9, UPC/EAN, etc.) and convert the content of the barcode scanned from a visual pattern into electronic data.
  • Page 112 GLOSSARY Laser Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is all the same frequency, unlike the output of an incandescent bulb. Laser light is typically coherent and has a high energy density. Light Emitting Diode (LED) A low power electronic light source commonly used as an indicator light.
  • Page 113 GLOSSARY Symbol A scannable unit that encodes data within the conventions of a certain symbology, usu- ally including start/stop characters, quiet zones, data characters and check characters. Symbology The structural rules and conventions for representing data within a particular bar code type (e.g.
  • Page 116 © 2022 Datalogic S.p.A. and /or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A.
