Summary of Contents for Datalogic Rhino-NET 40012

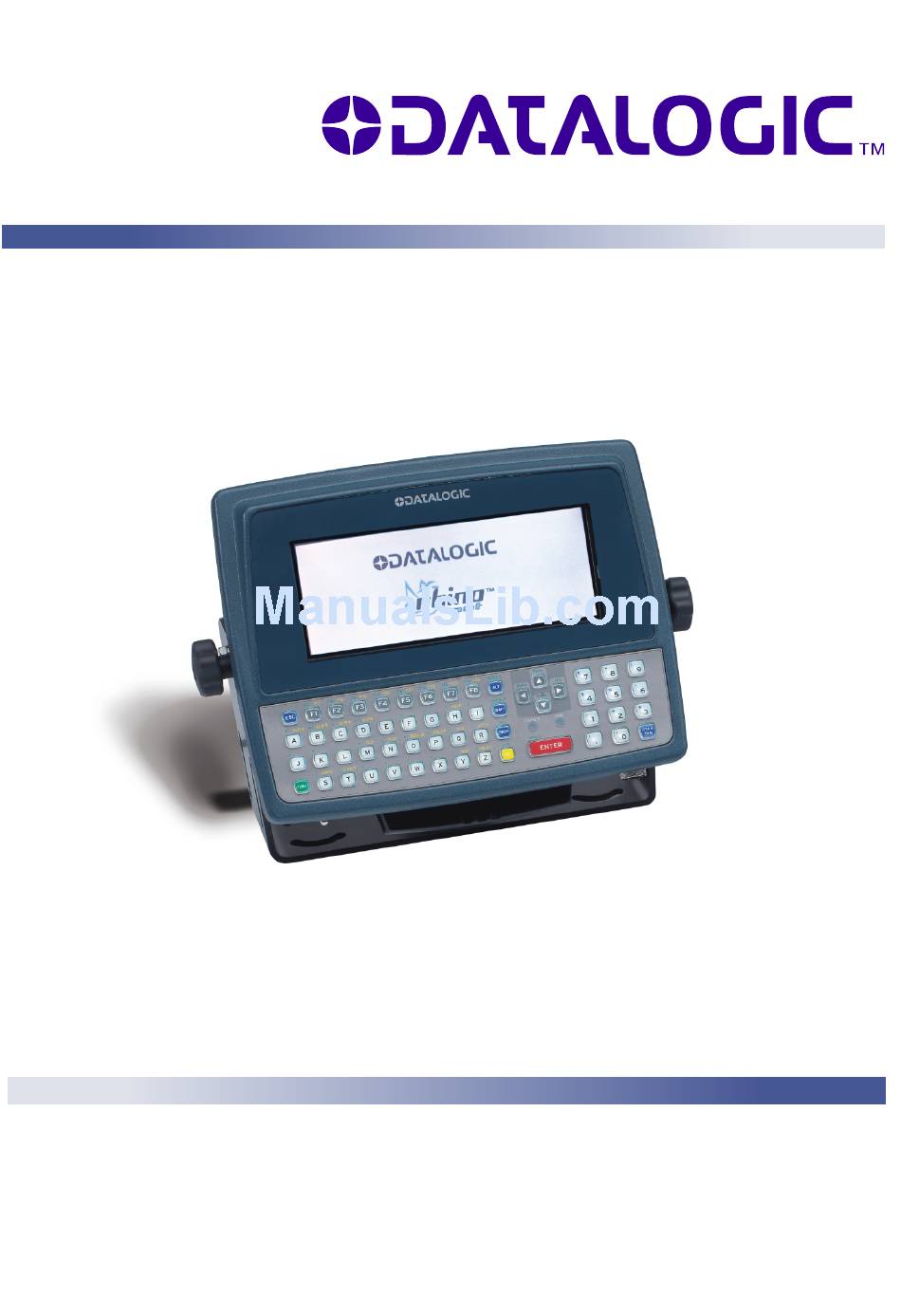

- Page 1 Rhino-NET User’s Manual...
- Page 2 Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 – Lippo di Calderara di Reno Bologna – Italy Rhino-NET™ – User's Manual Ed.: 07/2008 ALL RIGHTS RESERVED Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic S.p.A..
-
Page 3: Table Of Contents
CONTENTS REFERENCES ... v Conventions... v Reference Documentation ... v Services and Support ... v SAFETY REGULATIONS ... vi FCC Compliance ... vi Radio Compliance ...vii Vehicle Power Supply Connection Safety Statement ...viii AC Power Supply Safety Statement ... ix Bluetooth®... - Page 4 3.5.2 Files Admin ... 21 3.5.3 Scanner Setup ... 22 3.5.4 Bluetooth Manager Device Setup ... 25 Barcode Reading ... 26 Remote Display ... 26 Microsoft® ActiveSync® ... 27 3.8.1 ActiveSync Automatic Connection... 27 3.8.2 Terminal Services Client... 28 Backup Directory File Management... 28 MAINTENANCE ...
-
Page 5: References
REFERENCES CONVENTIONS This manual uses the following conventions: "User" or "Operator" refers to anyone using a Rhino-NET™ terminal. "Device" refers to the Rhino-NET™ terminal. "You" refers to the System Administrator or Technical Support person using this manual to install, mount, operate, maintain or troubleshoot a Rhino-NET™ terminal. REFERENCE DOCUMENTATION For further details refer to the SDK on CD-ROM. -
Page 6: Safety Regulations
SAFETY REGULATIONS Read this manual carefully before performing any type of connection to the Rhino-NET™ mobile computer. The user is responsible for any damages caused by incorrect use of the equipment or by inobservance of the indication supplied in this manual. NOTE FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of... -
Page 7: Radio Compliance
RADIO COMPLIANCE Information for the User Contact the competent authority responsible for the management of radio frequency devices of your country to verify the eventual necessity of a user license. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information. Prendi contatto con l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificarne l'eventuale necessità... -
Page 8: Vehicle Power Supply Connection Safety Statement
VEHICLE POWER SUPPLY CONNECTION SAFETY STATEMENT ENGLISH Vehicle Power Supply Connection: If the supply connection is made directly to the battery, a 5A slow-blow fuse should be installed in the positive lead within 5 inches (12.7 cm.) of the battery positive (+) terminal. ITALIANO Collegamento dell'alimentazione del veicolo: Se il collegamento dell'alimentazione viene stabilito direttamente con la batteria, è... -
Page 9: Ac Power Supply Safety Statement
Conexión de suministro eléctrico para el vehículo: Si el suministro eléctrico se proporciona directamente a la batería, se debe instalar un fusible de retardo de 5 A en el conductor positivo, como máximo a 12,7 cm (5 pulgadas) del terminal positivo (+). AC POWER SUPPLY SAFETY STATEMENT Optional AC Power Supply: This product is intended to be powered by an ITE power supply unit, output rated 11-60 Vdc,... -
Page 10: Weee Compliance
WEEE COMPLIANCE Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani. Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di: evitare possibili conseguenze negative per l’ambiente e per la salute umana che potrebbero invece essere causati dall’errato smaltimento dello stesso;... - Page 11 Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich. Beseitigung des Produkts entsprechend der Richtlinie: verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter www.mobile.datalogic.com.
-
Page 12: General View
GENERAL VIEW Figure A - Rhino-NET™ Components A. PC Card Slots B. Speaker/Beeper C. CapsLock Indicator D. Power Status Indicator E. COM1 Connector F. COM2/SCANNER Connector G. Power Connector H. Fuse Power Switch... -
Page 13: Quick Start
QUICK START Verify that Rhino-NET™ and all the parts supplied with the equipment are present and intact when opening the packaging. Contact the nearest Datalogic distributor for further information. Keep this package should it be necessary for shipping to a technical assistance centre. This section’s instructions are based on the assumption that your new system is pre- configured and requires only accessory installation (e.g. -
Page 15: Introduction

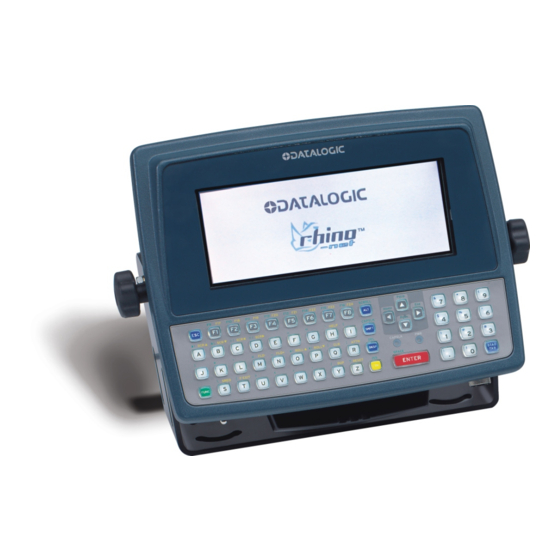

1 INTRODUCTION 1.1 RHINO-NET™ DESCRIPTION Rhino-NET™ is a Datalogic vehicle mounted RF terminal of the mobile@work™ family with Windows® CE.NET architecture. Designed for all operating conditions, Rhino-NET™ is available for sub-zero environments, enabling the terminal to perform at temperatures as low as -30°C. Providing a superior protection class (IP65) and an intuitive usage of the illuminated keyboard, Rhino-NET™... -
Page 16: Available Models
1.3 AVAILABLE MODELS Rhino-NET™ is available in different versions depending on whether an onboard radio and bluetooth module are present. Rhino-NET™/RF-3 EU BT Low Temp Rhino-NET™/RF-3 EU Low Temp Rhino-NET™/RR Low Temp 1.4 THE DISPLAY The Rhino-NET™ LCD Display is a full color LCD unit capable of supporting Half-VGA graphics modes. -
Page 17: Power Supply
Figure 2 - The Rhino-NET™ PCMCIA Slots 1.7 POWER SUPPLY Vehicle power input for the Rhino-NET™ can range from 11 to 60VDC and is accepted without the need to perform any adjustments within the Rhino-NET™. If 11 to 60V DC power is not available – for example, in an office environment – an optional external FP18 Power Supply can be used to convert AC wall power to an appropriate DC level. -
Page 18: Bluetooth® Module
1.8 BLUETOOTH® MODULE Rhino-NET™/RF-3 EU BT Low Temp model is equipped with a Bluetooth® module for radio communications to other devices which use this standard, for example a Gryphon BT scanner, printers, etc. Connections are not guaranteed at temperatures below 0° C. 1.9 CONNECTORS All external connectors for Rhino-NET™... -
Page 19: Installation
2 INSTALLATION Rhino-NET™ has been designed for fast and easy mechanical installation. Rhino-NET™ can be mounted either to the roof, to the floor or to the side of a fork-lift. In addition, it can be rotated in order to obtain the best display viewing position. 2.1 REQUIRED MOUNTING MATERIAL •... - Page 20 Position Rhino-NET™ at the bottom of the bracket: make sure the two large round openings coincide to the ones located at the edges of Rhino-NET™. While supporting the Rhino-NET™, rotate the whole device until it is aligned for the best viewing position, then insert the set pin screw with locking washer until it inserts into one of the small positioning holes located on the terminal bracket.
-
Page 21: Mounting To Forklift Floor
2.3 MOUNTING TO FORKLIFT FLOOR This type of installation may decrease the range of the radios located in the bottom of the Rhino-NET™ terminal. Follow these instructions as general guidelines: Find the most suitable place on the forklift floor to mount Rhino-NET™: it should be as protected as possible against water and dust, and it should not be an obstacle to the operator's movements. -
Page 22: Positioning
RHINO-NET™ Figure 7 - Rhino-NET™ in Vehicle Bracket Rhino-NET™ is now ready. 2.4 POSITIONING Rhino-NET™ can rotate on its mounting bracket up to 90° with respect to the mounting bracket position. See figure below for suggested positions: 90° 90° Figure 8 - Suggested Mounting Positions A specially punched steel ring has been designed to obtain the most precise rotation possible in terms of angle calibration, steadiness and consequent absence of torque between both sides of device. - Page 23 INSTALLATION Set pin screw Figure 9 - Rhino-NET Side View with Punched Steel Ring and Relative Set Pin Screw...
-
Page 24: Connecting Power
2.5 CONNECTING POWER For proper and safe installation, the input power cable must be connected to a fused circuit on the vehicle. This fused circuit requires a 5 Amp maximum time delay (slow blow) high interrupting rating fuse. If the supply connection is made directly to the battery, the fuse should be installed in the positive lead within 5 inches of the battery positive (+) terminal. - Page 25 For uninterrupted power, electrical supply connections should not be made at any point after the ignition switch of the vehicle. CAUTION 3. Route the cable the shortest way possible. The input cable from the connection to the battery is rated for a maximum temperature of 105°C (221°F). When routing this cable it should be protected from physical damage and from surfaces, which might exceed this temperature.
- Page 26 RHINO-NET™ Figure 11 - Connect Power Cable to Rhino-NET™ 6. Turn the Rhino-NET™ on.
-
Page 27: Connecting A Serial Barcode Scanner
2.6 CONNECTING A SERIAL BARCODE SCANNER Refer to the documentation received with the barcode scanner for complete instructions. Read all warnings and caution labels and par. 2.6.1. The COM2/Scanner port can be used to connect a barcode reader. Rhino-NET™ has been designed to support 5V powered scanners through the COM2/Scanner port (5 Vdc supplied on Pin 9 of the connector). -
Page 28: Laser Barcode Scanner Warnings
For 2D code reading, the Lynx™ readers are the most suitable readers for the Rhino-NET™ environment: connect it with external power supply to COM1 through CAB-327/CAB-362. 2.6.1 Laser Barcode Scanner Warnings The following directions are general indications to be observed when using a laser barcode reader with Rhino-NET™. -
Page 29: Connecting A Serial Device
INSTALLATION 2.8 CONNECTING A SERIAL DEVICE Rhino-NET™ can be connected to several types of serial devices through its COM1 port such as: serial printers, PCs or Laptops. Refer to the documentation received with the serial device for complete instructions. Figure 14 - Connect Serial Cable to COM1 1. -
Page 30: Use And Operation
3 USE AND OPERATION 3.1 POWERING ON/OFF Connect the Rhino-NET™ to a power source, either Vehicle battery (see par. 2.5) or an AC ADAPTER. The power (on/off) switch is a toggle switch located on the bottom of the Rhino- NET™. The Power LED located on the front panel of Rhino-NET™... -
Page 31: Key Descriptions
3.2 KEY DESCRIPTIONS The Rhino-NET™ ABCD keyboard facilitates data input. The keyboard includes two special keys: FUNC (green) and CTRL (orange) located in the lower corners. • Select FUNC to activate any of the functions printed on the overlay in green •... -
Page 32: Keyboard Leds
3.2.2 Keyboard LEDs The Rhino-NET™ keyboard has two LED indicators. CAPS Lock Mode LED Indicator Caps Lock LED This LED indicates the state of the keyboard Caps-Lock mode. If Caps-Lock is enabled this LED is illuminated red. When Caps-Lock is off, the LED is off. Press FUNC then SHIFT to activate Caps-Lock. -
Page 33: Hardware Reset
3.3.1 Hardware Reset In case the Rhino-NET™ terminal locks up and cannot be unlocked a hardware reset can be performed as follows: 1. Turn off the Rhino-NET™ power switch. 2. Press and hold the FUNC key while turning on the power switch. 3. -
Page 34: Control Panel
3.5 CONTROL PANEL The main window of the Windows® CE Control Panel is shown below as it appears on the terminal when launched from Start ->Settings ->Control Panel; APPLET programs are displayed on the desktop as icons; one icon corresponds to each APPLET. 3.5.1 Registry Admin The REGISTRY ADMIN applet provides management of the Windows®... -
Page 35: Files Admin
3.5.2 Files Admin The FILES ADMIN applet enables control of the permanence of files in the System Folder. Two functions are available on the Files Admin Main window by means of two buttons: Save Session: with this button all files will be permanently saved in the \Windows directory in non-volatile memory. -
Page 36: Reader Parameters
RHINO-NET™ Figure 24 - Safe Setup Second Mask 3.5.3 Scanner Setup This applet contains terminal and barcode scanning configuration parameters in a directory tree structure. The available parameters are divided into two groups: Reader Parameters and Scan Parameters. Each Scanner Setup screen window corresponds to a branch of the tree, and the name of the current branch is displayed at the bottom of each screen window. -
Page 37: Scan Parameters
USE AND OPERATION For a detailed list of parameters and of their configuration procedures, please refer to the SDK Help file on the CD-ROM. Figure 26 - Scanner Setup: Reader Parameters Port: assigns the type of port used by the peripheral device. The values are: Serial port (COM2/Scanner), Bluetooth port, or Cordless Card port (PCMCIA). -
Page 38: Default Settings
Scan Timeout: the maximum time, in milliseconds, during which Rhino-NET™ accepts data from the port after a Soft Trigger. Beep Duration: not applicable to Rhino-NET™. Beep Frequency: not applicable to Rhino-NET™. LED Duration: not applicable to Rhino-NET™. LED Pulses: not applicable to Rhino-NET™. Continuous Mode: when enabled, Rhino-NET™... -
Page 39: Bluetooth Manager Device Setup
3.5.4 Bluetooth Manager Device Setup In order to enable a Bluetooth device for communication with the Rhino-NET™/ RF-3 EU BT Low Temp terminal you must perform the discovery procedure and enable the device as follows: 1. Place the Bluetooth device within range of the Rhino-NET™ terminal (10 meters). 2. -
Page 40: Barcode Reading
3.6 BARCODE READING Follow the procedure below and choose one of the methods indicated at step 3 to enable the Rhino-NET™ to receive barcode scanning: 1. connect the barcode reader to one of the ports available for the scanner connection (i.e. the COM2 serial port);... -
Page 41: Microsoft® Activesync
3.8 MICROSOFT® ACTIVESYNC® Microsoft® ActiveSync® gives you the possibility to connect your desktop computer to your Rhino-NET™ terminal and synchronize the information on them. Synchronization compares the data on the Rhino-NET™ terminal with that on the desktop computer and updates both computers with the most recent information. -
Page 42: Terminal Services Client
RHINO-NET™ To activate this feature, open the Control Panel and run the PC Connection icon: Figure 29 - PC Connectin Properties To make these settings effective, tick the "Allow connection with desktop computer when device is attached" box. Now whenever a physical connection is established with the Rhino- NET™... - Page 43 USE AND OPERATION directory doesn't exist originally (only Backup exists), and therefore it must be created. At the next hardware reset, before activating the shell, Windows CE will copy the contents including all sub-directories of \Backup\Windows to \Windows. Likewise, to maintain files that must be run at Windows CE startup, (i.e. .exe, .lnk, .vb, .htm, etc.), it is necessary to copy them to the \Backup\Startup directory.
-
Page 44: Maintenance
4 MAINTENANCE 4.1 CLEANING RHINO-NET™ Periodically clean Rhino-NET™ terminal with a slightly dampened cloth. Repeat the operation frequently in particularly dirty environments. Do not use alcohol, corrosive products or solvents, and avoid any abrasive substances. 4.2 CLEANING THE DISPLAY When the display becomes soiled or smudged cleaning can be accomplished using a damp soft cloth. -
Page 45: Troubleshooting
5 TROUBLESHOOTING The only internal components that personnel not belonging to Datalogic or ARC technical support can add or replace by removing Rhino-NET™'s cover are PCMCIA cards as described in chapter 1.6. Opening Rhino-NET™ may damage internal components and causes CAUTION warranty loss. - Page 46 Problem The barcode reader (either Laser or CCD) emits no light source. The barcode reader does not read some code symbologies. The barcode reader emits a laser beam and a good read beep but the read barcode is not displayed by the application running on Rhino-NET™.
-
Page 47: Technical Features
6 TECHNICAL FEATURES Electrical Features Power Control Switches Status Indicator Lights Hardware Features Microprocessor Operating System System RAM Memory System Flash Memory Real-Time Clock Mechanical Features Dimensions Weight Display Keyboard Speaker Environmental Features Operating Temperature Storage Temperature Environmental sealing Operating Humidity Random Vibration Shock Communication Features... - Page 48 Accessories Mounting brackets Mounting kit to secure the terminal to the mounting bracket. Power cable Serial cable for configuration activities though pc direct connection. User’s Manual Windows CE SDK CD-ROM Serial Mouse Included in this package Included in this package Included in this package Included in this package Included in this package...
-
Page 49: Glossary
GLOSSARY Access Point (AP) A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units (MUs). Datalogic hand-held computers, or other devices equipped with a PCMCIA slot, communicate with wired networks using Access Points (AP). The mobile unit may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network. - Page 50 Flash Disk Non-volatile memory for storing application and configuration files. Host A computer that serves other terminals in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages. Liquid Crystal Display (LCD) A display that uses liquid crystal sealed between two glass plates. The crystals are excited by precise electrical charges, causing them to reflect light outside according to their bias.
-
Page 51: Index
INDEX Available Models; 2 Backup Directory File Management; 28 Barcode Reading; 26 Battery Warning Messages; 19 Bluetooth®; 4 Connections Connecting a Serial Barcode Scanner; Connecting a Serial Device; 15 Connecting a Serial Mouse; 14 Direct Power Connection to Vehicle; 10 Connectors;... - Page 52 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Rhino-NET sono conformi alla Direttiva del Consiglio Europeo sottoelencata: are in conformity with the requirements of the European Council Directive listed below: sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous: der nachstehenden angeführten Direktive des Europäischen Rats entsprechen: cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente: Questa dichiarazione è...
- Page 53 available from: www.mobile.datalogic.com/contacts ©2008 Datalogic Mobile S.r.l. www.mobile.datalogic.com World wide Sales Network Datalogic Mobile S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561 822000494 (Rev. E) 07/08...
