PICO Ultraleap Installation Manual

Hand tracking accessory for neo 3 pro

Ultraleap Hand Tracking

Accessory for Pico Neo 3 Pro

Installation Guide

Overview

The Ultraleap Accessory Bundle contains:

• An Ultraleap Hand Tracking Camera (the Stereo IR 170 Evaluation Kit complete with

Pico Neo 3 mount)

• A cable and cable tie to connect the camera to the Pico Neo 3

• Ultraleap Hand Tracking Software (sent via email – Windows PC required)

• The Commercial License (sent via email)

Mount the Ultraleap Hand Tracking Camera on the Pico Neo 3 Pro

1. Fit the camera module into the mount. Screw in place using provided screws.

2. Mark the intended position before you attach the mount to the headset: Position

the mount so it is aligned with the black line and the curvature of the mount

matches the curvature of the headset. Mark the position. CAUTION! The adhesive

is semi-permanent. Make sure you are completely happy with the position

before sticking the mount into place.

3. Remove the paper backing from the adhesive on the mount and press the mount

firmly to the front of the headset in the marked position.

4. Connect the Micro USB end of the cable to the camera module. Do not use the

USB-C end - this could damage the connector.

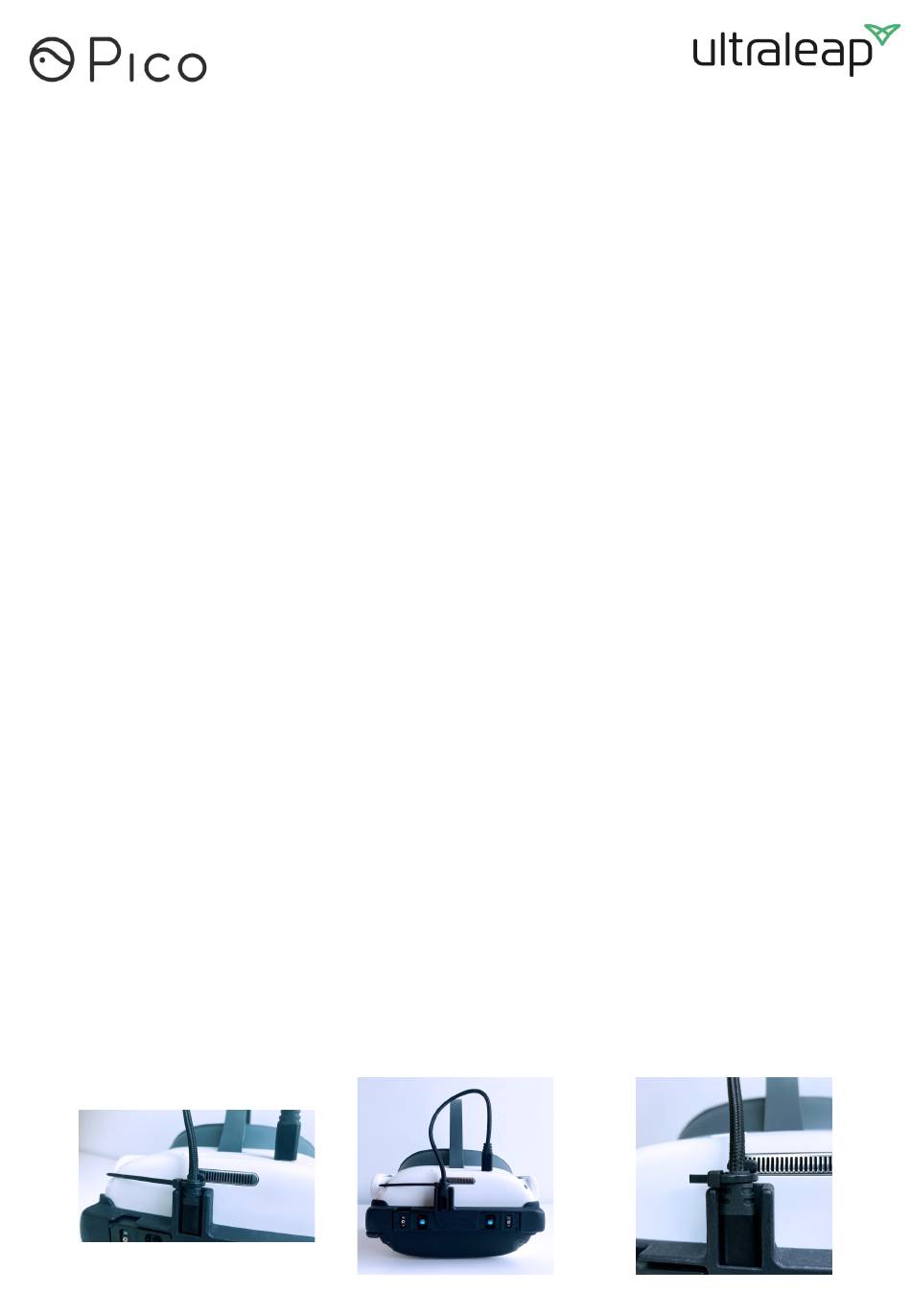

5. Use the cable tie to secure the USB cable at the strain point (as shown below) and

cut the cable tie to size.

6. Connect the USB-C end of USB cable to your Pico Neo 3 headset (as shown

below).

7. Remove the lens caps from Stereo IR 170 Evaluation Kit.
