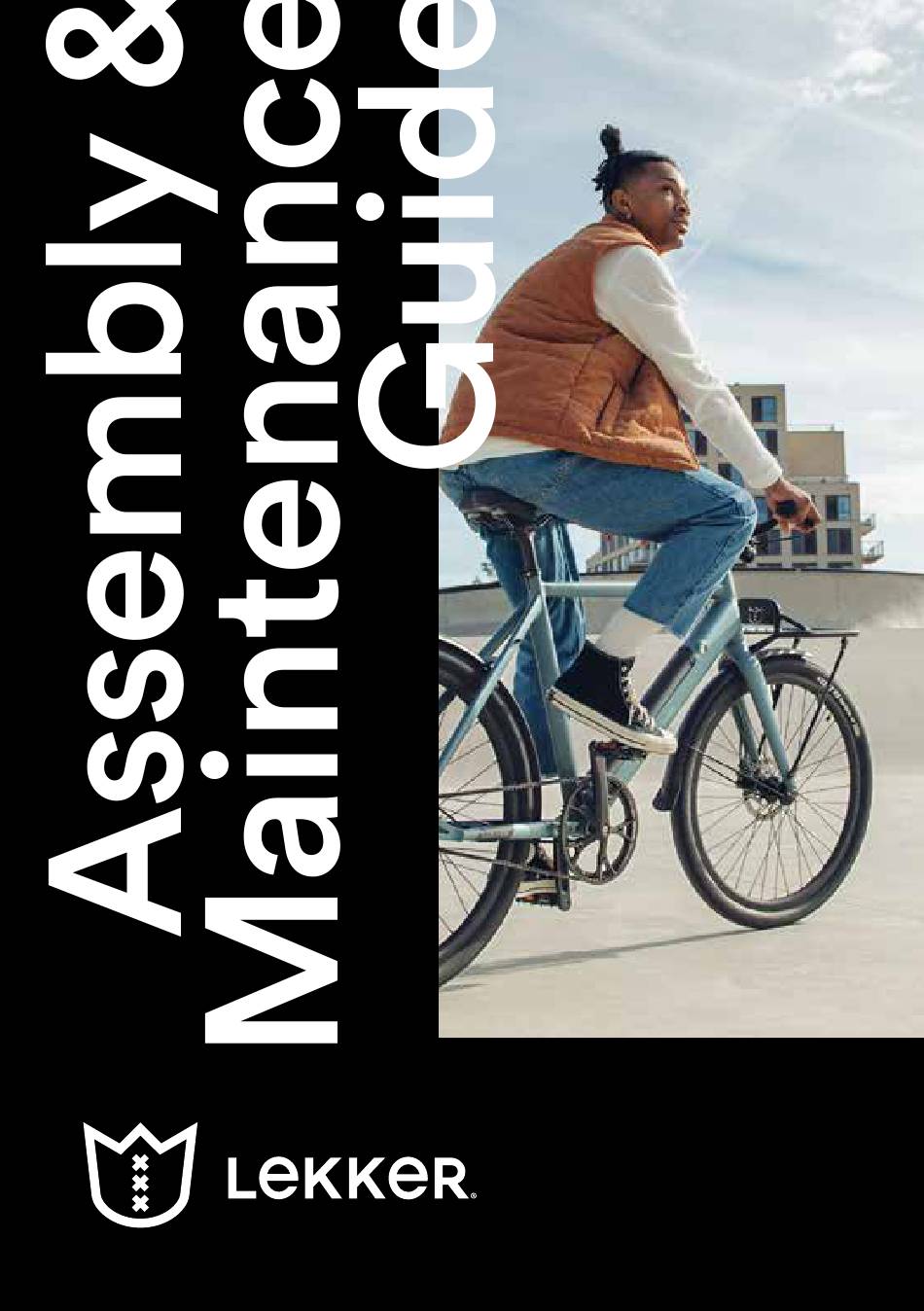

  • Page 1 Amsterdam+...
  • Page 2 Assembly & Maintenance Guide Amsterdam+...
  • Page 3 Even a manual the size of every Harry Potter book combined couldn’t detail every possible bicycle assembled by a skilled combination, tricks and available components. For this reason, our manual is only applicable to your new LEKKER bicycle and its assembly, alongside any important notes, warnings and bicycle mechanic. maintenance guides.
  • Page 4 Index Assembly Unpacking your bike and experience box Fitting the handlebars Fitting the pedals Battery setup Getting ready to ride Finishing touches Maintenance Aligning the brakes Battery health Safety and warranty Amsterdam+ Assembly & Maintenance Guide...
  • Page 5 Assembly & Maintenance Guide Amsterdam+...
  • Page 6 LEKKER bike. Run through these quick steps and you’ll be exploring and adventuring in no time. So, without further ado, unbox your LEKKER bike and feast your eyes on your newest sidekick. Once you’ve removed the packaging, make sure you have your trusty toolkit to hand, as shown in the illustration on the next page.
  • Page 7 02. Fitting the handlebars Step 1: Loosen the two stem bolts using the 4mm allen key. Next, align the handlebars so that they are perpendicular to the front wheel. Then, tighten the two bolts. Step 2: To adjust the angle of the handlebar, use the same tool to loosen the faceplate at the front of the handlebar stem and reposition the handebars.

  • Page 8: Fitting The Pedals

    03. Fitting the pedals To assemble the pedals, you will need a 15mm open- RIGHT pedal: this pedal has no indented lines and is ended spanner. Insert the pedal into the crank and smooth in between the pedal and thread. ensure the pedal is properly tightened.

  • Page 9: Battery Setup

    04. Battery setup Make sure that the battery is properly inserted into Remember to remove the key from the battery lock the frame. When you feel a click, you’ll know it’s been whilst riding. locked into place. Your battery can be charged whilst the battery is inside the frame, or you can simply take All batteries will come partially charged.

  • Page 10: Getting Ready To Ride

    05. Getting ready to ride Once on, you can scroll through the 5 levels of motor We recommend that you sit on your bike before turn- assist using the + and - buttons on the front of the ing it on. That way, you’ll be in full control. control module / display.

  • Page 11: Finishing Touches

    06. Finishing touches Tyres Pump the tyres to 3.1 - 4.5 Bar (45-65 PSI) Saddle Using a 5mm allen key, loosen the seatpost clamp bolt and adjust the seatpost height. Ensure it’s at the correct height for you, and tighten the bolt. Tip: Your knee should slightly bend when the pedal is at its lowest position while sitting on the saddle.
  • Page 12 Assembly & Maintenance Guide Amsterdam+...

  • Page 13: Aligning The Brakes

    01. Aligning the brakes Lift the wheel off the ground and give it a spin. It should spin freely and not make any noise. If you hear a metallic rubbing sound, then the brakes will need adjusting. To do this, you’ll need to use the 5mm allen key. With the bike upside down, adjust the caliper.

  • Page 14: Battery Health

    100% is fine, but avoid storing it at 100% for an 5. Your LEKKER bike comes with the Bafang C11 dis- extended period (i.e. longer than a month). If possi- play, which gives you an indication of your battery’s ble, also remove your battery from your bike during storage.
  • Page 15 6. What factors will affect my battery’s range? - Battery capacity; the larger the capacity, the more - Rider weight & load (Racks, pannier bags, Child range the bike will have. seat). - Battery age; over time your battery will lose the abi- - Environmental factors such as terrain, gradient, am- lity to store charge.

  • Page 16: Safety And Warranty

    Do not make any changes to your electric system or of a LEKKER product. If you want to use the warran- fit any other products to it, aimed at increasing the ty, please ensure you have your receipt and go to the power output from your eBike.
  • Page 17 Assembly & Amsterdam+ Maintenance Guide lekkerbikes.com Assembly & Maintenance Guide Amsterdam+...
