Summary of Contents for Lekker Jordaan+

  • Page 1 Jordaan+...

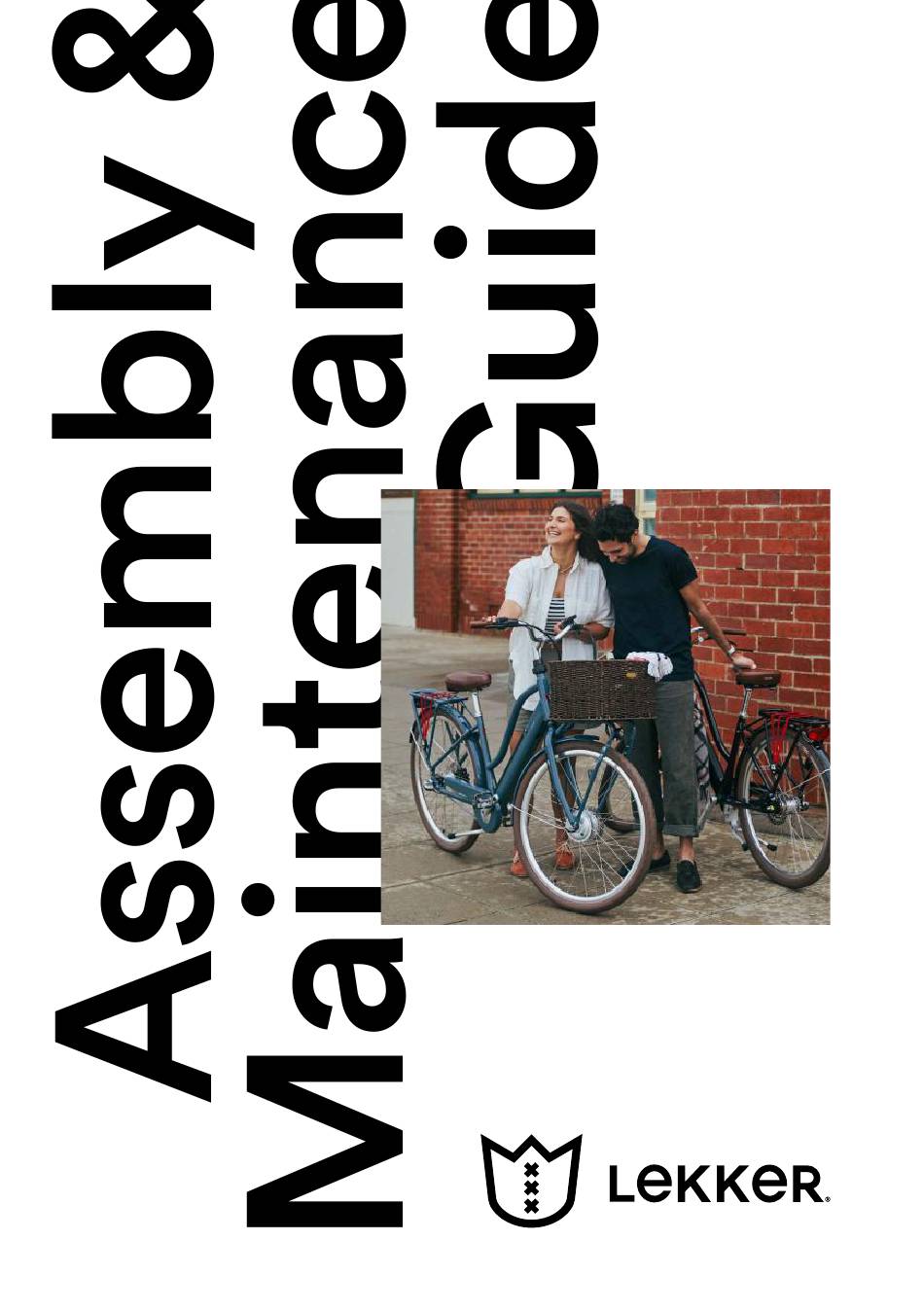

  • Page 2 Assembly & Maintenance Guide Jordaan+...
  • Page 3 Even a manual the size of every Harry Potter book combined couldn’t detail every possible combination, tricks and available components. For this reason, our manual is only applicable bicycle assembled by a skilled to your new LEKKER bicycle and its assembly, alongside any important notes, warnings and maintenance guides. bicycle mechanic.
  • Page 4 Index Getting started Fitting the saddle and handlebars Fitting the pedals Aligning the brakes Aligning the gears Battery set-up Display settings Finishing touches Safety and warranty Assembly & Maintenance Guide Jordaan+...

  • Page 5: Getting Started

    So, without further ado, unbox your LEKKER bike and feast your eyes on your newest sidekick. Once you’- ve removed the packaging, make sure you have your trustly toolkit to hand, as shown in the illustration on the next page.
  • Page 6 Assembly & Maintenance Guide Jordaan+...
  • Page 7 02. Fitting the saddle and handlebars Saddle. Using a 5mm allen key, loosen the seatpost clamp bolt and adjust the seatpost height. Ensure it’s at the correct height for you, and tighten the bolt. Tip: Your knee should slightly bend when the pedal is at its lowest position while sitting on the saddle.

  • Page 8: Fitting The Pedals

    03. Fitting the pedals To assemble the pedals, you will need a 15mm open- PLEASE NOTE: For your Right pedal, turn clockwise ended spanner. Insert the pedal into the crank and to tighten. For your Left pedal, turn counter clockwi- ensure the pedals are properly tightened.

  • Page 9: Aligning The Brakes

    04. Aligning the brakes Lift the wheel off the ground and give it a spin. It should spin freely and without any noise. If you hear a metallic rubbing sound, then the brakes will need adjusting. To do this, you’ll need to use the 5mm allen key. With the bike upside down, adjust the caliper.
  • Page 10 05. Aligning the gears Step 1: Checking alignment Step 2: Adjusting alignment Begin by engagin the fourth gear on your shifting Located on your handlebar shifer, turn the Gear system. With the fourth gear engaged, the yellow Barrel Adjustor clockwise or anti-clockwise to bring lines should be aligned next to each other at your rear the yellow lines intom alignment.

  • Page 11: Battery Set-Up

    06. Battery set-up Make sure that the battery is properly inserted into Note: All batteries and frames are water-resistant, the frame. When you feel a click, you’ll know it’s been but if you are storing the bike outside overnight, or locked into place.

  • Page 12: Display Settings

    07. Display Settings Once on, you can scroll through the 5 levels of motor We recommend that you sit on your bike before you assist using the + and - buttons on the front of the turn it on. This means you’ll have full control over the control module / display.

  • Page 13: Finishing Touches

    - If you’ve ordered any accessories such as racks, locks or lights, don’t forget to fit these too. They each - LEKKER supplies you with cable wrap so that you come with their own instructions and also have their can neaten up your cabling at the front of your bike.

  • Page 14: Safety And Warranty

    As a rule, you will of a LEKKER product. If you want to use the warran- shorten the service life of the system, risk damaging ty, please ensure you have your receipt and go to the the Drive Unit (motor) and also the e-bike itself.
  • Page 15 Assembly & Jordaan+ Maintenance Guide lekkerbikes.com Assembly & Maintenance Guide Jordaan+...
