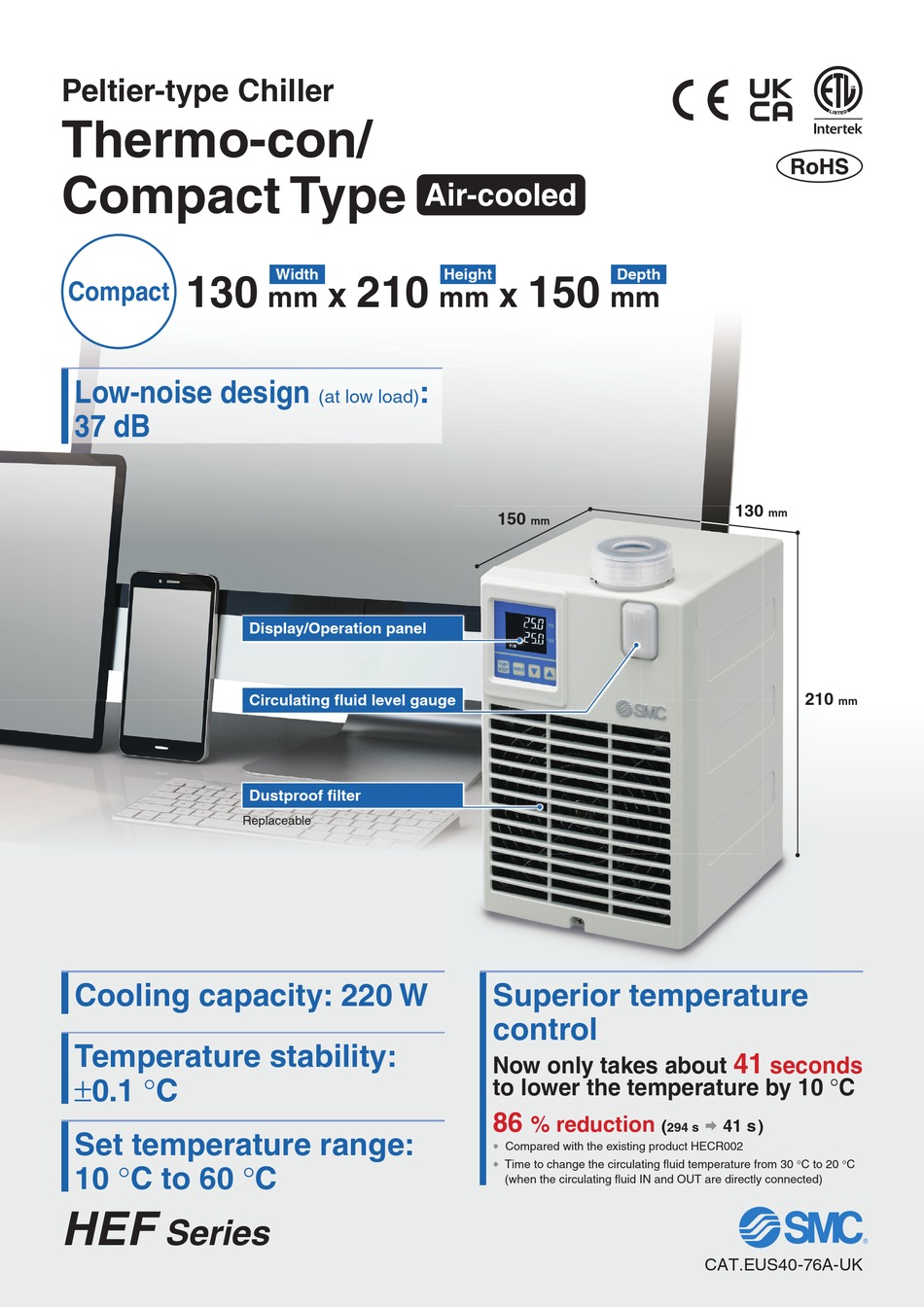

Peltier-type Chiller
Thermo-con/
Compact Type
130
Compact
Low-noise design
37 dB
Cooling capacity: 220 W
Temperature stability:
±0.1 °C
Set temperature range:
10 °C to 60 °C
HEF
Series
Width
210
x
mm
(at low load)
Display/Operation panel
Circulating fluid level gauge
Dustproof filter
Replaceable
Air-cooled
Height
150
x
mm
:
150
mm
Superior temperature
control
Now only takes about
to lower the temperature by 10 °C
86
% reduction
∗ Compared with the existing product HECR002
∗ Time to change the circulating fl uid temperature from 30 °C to 20 °C
(when the circulating fl uid IN and OUT are directly connected)
Depth
mm
130
mm
41
seconds
(
41 s)
a
294 s
CAT.EUS40-76A-UK
210
mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks HEF Series
Summary of Contents for SMC Networks HEF Series
- Page 1 Peltier-type Chiller Thermo-con/ Compact Type Air-cooled Width Height Depth Compact Low-noise design (at low load) 37 dB Display/Operation panel Circulating fluid level gauge Dustproof filter Replaceable Cooling capacity: 220 W Superior temperature control Temperature stability: Now only takes about seconds ±0.1 °C to lower the temperature by 10 °C % reduction...
-
Page 2: Thermo-Con/Compact Type
Peltier-type Chiller Thermo-con/Compact Type Air-cooled Series Can precisely control the temperature Precisely control the temperature of the Actual size circulating fluid by using the Peltier device. Refrigerant-free and environmentally friendly Low-noise design (at low load) This product generates less vibration, dust, and noise due to its lack of moving parts, such as a compressor. -
Page 3: Hef Series
Peltier-type Chiller Thermo-con/Compact Type Air-cooled Series of a heat source or process fluid Easy maintenance Easy to clean and replace the dustproof fi lter Dustproof fi lter set Integrated with the front panel grille. Easy to install and remove Dustproof fi lter Easy to remove dust, cutting chips, etc., stuck to the fi... - Page 4 Peltier-type Chiller Thermo-con/Compact Type Air-cooled Series Application Examples Cool Diode Laser Cool Optical Camera C-mount lens F-mount lens Microscope C-mount TV adapter Data analyzer Compatible with digital cameras Microscope Cooling Plate Laser Oscillator Cool Power Device Beam Bumper Cooling Glass Heat Exchanger Circulation Between Gas Generation Analyzer and Jacketed Vessel ∗...
-
Page 5: Table Of Contents
C O N T E N T S Series Thermo-con/Compact Type Air-cooled Series Cooling Capacity Calculation ............p. 5 How to Order/Specifications ............. p. 6 Cooling Capacity ................p. 7 Heating Capacity ................p. 7 Pump Capacity (Thermo-con Outlet) ..........p. 7 Dimensions .................. -
Page 6: Cooling Capacity Calculation
Series Air-cooled Cooling Capacity Calculation Example When cooling the object below a certain temperature in certain period of time. Cooled substance total volume V : 2 L Cooling time h : 15 min Cooling temperature difference ΔT : Temperature difference: 10 °C (10 K). Cool from 30 °C (303 K) to 20 °C (293 K). Circulating fl... -
Page 7: How To Order/Specifications
Thermo-con/ Compact Type Series Air-cooled How to Order HEF 002 A 6 Cooling capacity Option — 220 W None High-pressure pump mounted Radiating method Pipe thread Air-cooled — Power supply NPT thread 24 VDC Specifi cations Cooling method Thermoelectric device (Thermo-module) Radiating method Forced air cooling Control method... -
Page 8: Cooling Capacity
Series Cooling Capacity Circulating fl uid: Water, Flow rate: 1 l/min Circulating fl uid: Water, Flow rate: 1 l/min, When constant fan speed mode is selected Ambient temperature 25 °C Ambient temperature 25 °C Ambient temperature 35 °C Ambient temperature 35 °C Circulating fl... -
Page 9: Dimensions
Series Thermo-con/Compact Type Air-cooled Dimensions Circulating fl uid OUT Rc1/4 Rubber legs (4 pcs.) Label Power connector Tank lid Power switch Display/ Circulating fl uid Operation panel level gauge Alarm, RUN/STOP Fluid fi ll port Communication connector Dustproof fi lter Model no. -
Page 10: Operation Display Panel
Series Operation Display Panel 1st line 2nd line Displays the current temperature value Displays the setting temperature value [PV] [SV] and each selected input value Displays the alarm code when an alarm is generated RUN display Turns on during control status (RUN status) ALARM display Turns on when the unit is alarming RUN/STOP key... -
Page 11: High-Pressure Pump Mounted
Series Air-cooled ∗ Options have to be selected when Option ordering the thermo-con. It is not possible to add them after purchasing the unit. Option symbol High-Pressure Pump Mounted HEF002 A6 High-pressure pump mounted Possible to choose a high-pressure pump in accordance with customer’s piping resistance. Cooling capacity is reduced by approx. -
Page 12: Optional Accessories
Series Air-cooled Optional Accessories AC Adapter Part no. Applicable model INR-244-831 HEC-S1896 HEF002-A6 (254) (1200) Power supply connector DC output connector Label Power supply connector DC output connector Specifications IEC60320 C14 (or equivalent) JST: J42FSC-02V-KX Power supply input 100-240 VAC, Single-phase, 50/60 Hz, Max. 3.9 A Pin no. -
Page 13: Specific Product Precautions
Series Specific Product Precautions Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smc.eu Design Radiation Air Warning... - Page 14 Series Specific Product Precautions Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smc.eu Circulating Fluid Maintenance Caution...
- Page 15 These safety instructions are intended to prevent hazardous situations and/or equipment Safety Instructions damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
- Page 16 SMC Corporation (Europe) Austria +43 (0)2262622800 www.smc.at offi ce@smc.at Lithuania +370 5 2308118 www.smclt.lt info@smclt.lt Belgium +32 (0)33551464 www.smc.be info@smc.be Netherlands +31 (0)205318888 www.smc.nl info@smc.nl Bulgaria +359 (0)2807670 www.smc.bg offi ce@smc.bg Norway +47 67129020 www.smc-norge.no post@smc-norge.no Croatia +385 (0)13707288 www.smc.hr offi...
