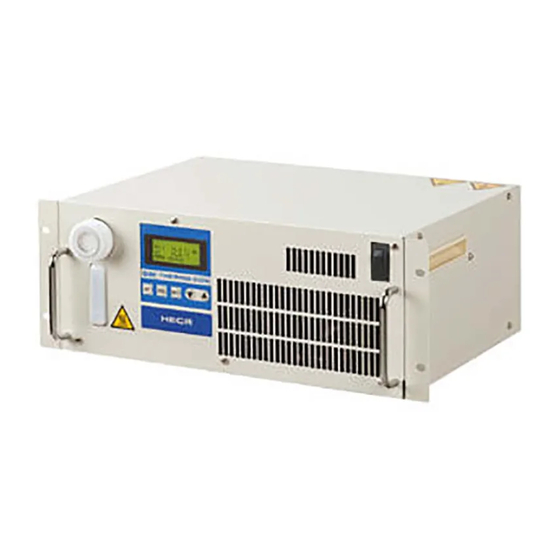

Peltier-type chiller thermo-con/rack mount type
Hide thumbs Also See for HECR Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Peltier-Type Chiller
Thermo-con/
Rack Mount Type
Good space utilization
Mountable in a 19-inch rack
Saves space by mounting multiple equipment
together in a rack.
Temperature
stability
Set temperature
range
Cooling capacity
Power
consumption
HECR
Series
0.018
0.054
±
to
(0.01 to 0.03°C)
50
140
°F
to
(10 to 60°C)
200 w
440 w
(100 V input, 4.6 A)
Air-cooled
°F
Space saving design
with reduced height
Height dimension
55
Approx.
% reduction
HECR
RoHS
15.5 in
(393 mm)
6.9
in
(176 mm)
HEC002
CAT.NAS40-61A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HECR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks HECR Series

Summary of Contents for SMC Networks HECR Series

  • Page 1 Peltier-Type Chiller Thermo-con/ Rack Mount Type RoHS Air-cooled Good space utilization Mountable in a 19-inch rack Saves space by mounting multiple equipment together in a rack. 0.018 0.054 ± °F Temperature Space saving design stability (0.01 to 0.03°C) with reduced height °F Set temperature range...
  • Page 2 Peltier-Type Chiller Thermo-con/Rack Mount Type HECR Series Can precisely control the temperature of a heat source or process fluid. Precisely control the temperature of the circulating fluid by using the Peltier device. Refrigerant-free and environmentally friendly. Air-cooled Cooling capacity Heating capacity Radiating method Power supply Single-phase...
  • Page 3 Peltier-Type Chiller Thermo-con/Rack Mount Type HECR Series Construction and Principles Figure 1 Power switch Controller Power supply & Controller Switching power supply Flow switch (Option) Heat exchanger Circulating fluid (Circulating fluid side) Peltier device Temperature Circulating fluid supply port (Thermo-module) sensor (Tank lid) Heat exchanger...
  • Page 4 Peltier-Type Chiller Thermo-con/Rack Mount Type HECR Series Application Examples UV curing device Laser machining (printing, painting, bonding and sealing) Cooling of laser irradiated part Cooling of UV lamp X-ray instrument Electronic microscope (digital) Temperature control of X-ray tube and Temperature control X-ray light sensing part of electron-beam irradiated part...

  • Page 5: Table Of Contents

    C O N T E N T S HECR Series Thermo-con/Rack Mount Type Series HECR Model Selection .................... Page 5 How to Order/Specifications ................ Page 7 Air-cooled Cooling Capacity ..................Page 8 Heating Capacity..................Page 8 Pump Capacity (Thermo-con Outlet)............Page 8 Dimensions....................

  • Page 6: Model Selection

    HECR Series Model Selection Guide to Model Selection 1. How much is the temperature in degrees centigrade for the circulating fluid? Temperature range which can be set with the Thermo-con: 50 to 140°F (10 to 60°C) If a lower temperature (down to –4 °F [–20°C]) or higher temperature (up to 194°F [90°C]) than this range is necessary, select the Thermo-chiller HRZ series.
  • Page 7 HECR Series Model Selection Guide to Model Selection Example 2 When the heat generation amount in the user’s equipment is not known. Obtain the temperature difference between inlet and outlet by circulating the fluid inside the user’s equipment. Heat generation amount Q : Unknown Circulating fluid temperature difference ∆T (= T2 –...

  • Page 8: How To Order/Specifications

    Thermo-con/ Rack Mount Type HECR Series Air-cooled How to Order HECR 002 Cooling capacity Option 200 W None With feet and no rack mounting brackets With flow switch Radiating method Air-cooled Pipe thread type Power supply NPT thread 100 to 240 VAC Specifications HECR002-A Model...
  • Page 9 HECR Series Model Selection Cooling Capacity Circulating fluid: Water Circulating fluid: Ethylene glycol 20% Ambient temperature 59°F (15°C) Ambient temperature 77°F (25°C) Ambient temperature 77°F (25°C) Ambient temperature 95°F (35°F) [20] [30] [40] [60] [70] [50] [20] [30] [40] [50] [60] [70] Circulating fluid temperature °F [°C]...

  • Page 10: Dimensions

    HECR Series Dimensions Unit: in [mm] HECR002-A5 Warning/Caution label Caution label/Electricity 1.06 [27] 16.9 [430] Display/Operation panel Tank lid (with gasket) 0.39 [10] Handle (for carrying the product) Fluid fill port Ventilation hole (air inlet) Power switch 6.9 [176] 5.5 [139.7] 5.5 [139.7] 5.3 [134] 4.2 [107]...

  • Page 11: Operation Display Panel

    HECR Series Thermo-con Rack Mount Type Operation Display Panel 1st line 2nd, 3rd line Indicates No. corresponding to the alarm Indicates present temperature [PV] and E R R 1 1 W R N which arises and [WRN] comes to light <...

  • Page 12: Options

    HECR Series Note) Options have to be selected when Options ordering the Thermo-con. It is not possible to add them after purchasing the unit. Option symbol With Feet and No Rack Mounting Brackets Unit: in (mm) HECR002 A5 16.9 (430) With feet and no rack mounting brackets Rack mounting brackets and handles on the front side are removed as they are not necessary when the product is not mounted in a rack.

  • Page 13: Optional Accessories

    HECR Series Optional Accessories q Power Supply Cable For single-phase 100/115 VAC type ∗ Not applicable for the 200 V type. Approx. 9.84 ft (3 m) Thermo-con side User’s equipment side Part no. Applicable model HRS-CA001 HECR002 ∗ Not applicable to the retaining clip. Approx.

  • Page 14: Specific Product Precautions 1

    HECR Series Specific Product Precautions 1 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on SMC website, http://www.smcworld.com System Design Radiation Air...
  • Page 15 HECR Series Specific Product Precautions 2 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on SMC website, http://www.smcworld.com Circulating Fluid Circulating Fluid...
  • Page 16 These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) ∗1) and other safety regulations.
