Step 4: With the cables connected, position the digiGate onto the mount you have fixed on
the wall. Instructions can be found in section 10.
Step 5: Connect power, WiFi antenna (if used) and switch on. Power types and instructions
can be found in section 5.4.

8 SINGLE GARAGE INSTALLATION (2 BUTTONS)

This section explains how to install your digiGate system to a single garage which is
operated by a 2 push buttons (1 button opens the door, another button closes the door).
Note: It is recommended that digiGate is installed by a qualified electrician to avoid any incorrect wiring,
potentially resulting in malfunction and/or injury. Damaged products due to incorrect installation without
following this guide will result in a void warranty.

8.1 SINGLE GARAGE (2 BUTTONS) PRE-REQUISITES

To install a digiGate single garage multi-button control system, you will need your digiGate
and 4 switch cables. This is for a single garage system with 2 push buttons, 1 for open and 1
for close.

8.1.1 CONNECTING TO GARAGE CONTROLLER DIRECTLY

Note: These are generic instructions and your garage controller may differ. If you have trouble installing,
please contact us at info@digiGate.co.uk with a photo and make/model number of your garage switch and we
will get back to you with instructions on how to install your digiGate to your specific device.
Step 1: IMPORTANT
fuse box that the garage unit is connected to and switching off the relevant connections.
Step 2: Access the main circuit board by either removing the front cover or opening the
casing. There should be some accessible screws on the outside of the front panel which
need to be removed. Once removed, carefully lift off the panel but be careful not to force
the panel off in case there are some cables attached in which case remove these gently.

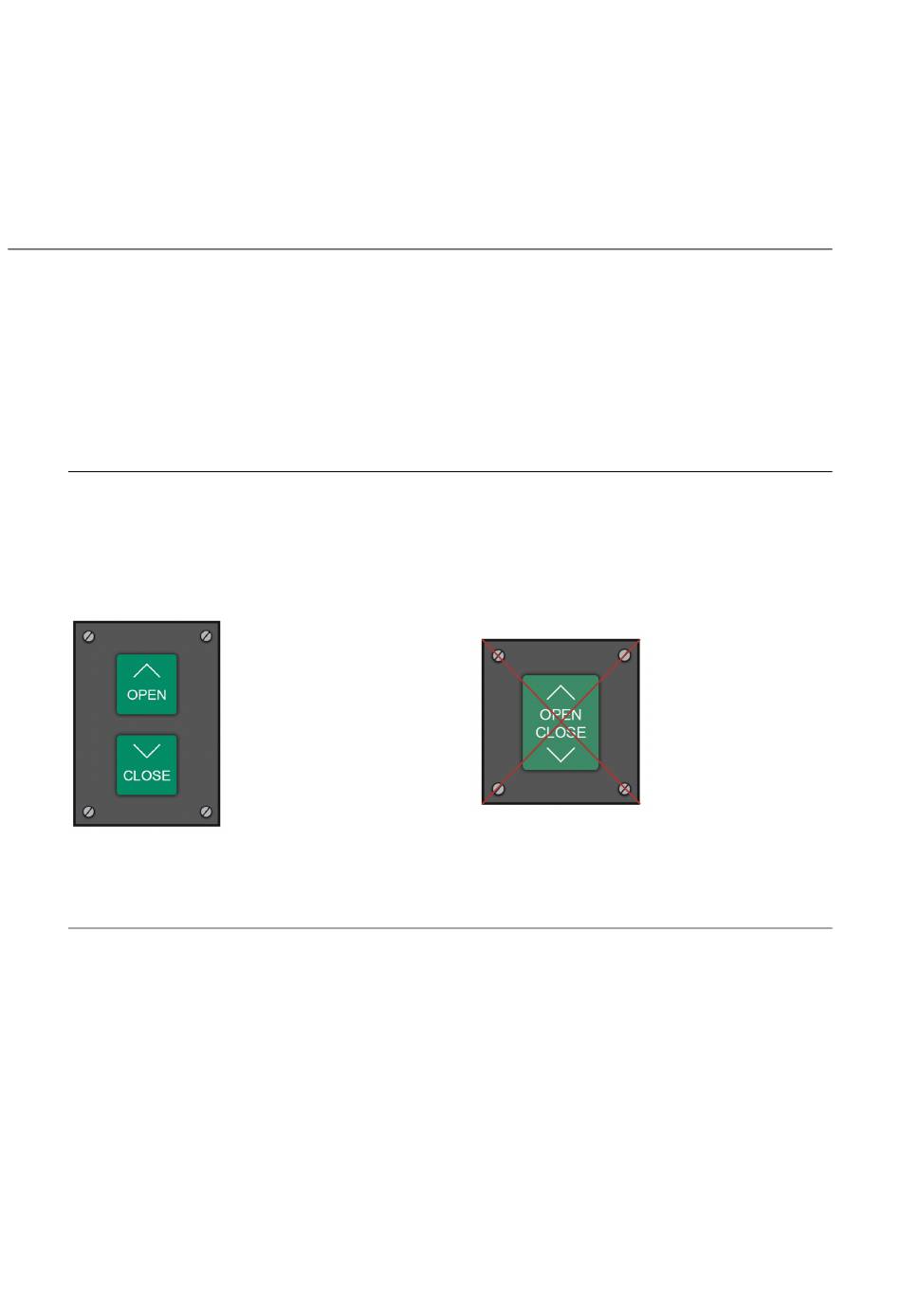

Note: These instructions
are for a garage system
with separate open and
close buttons similar to
this graphic.
Isolate garage control unit power. This can be achieved by locating the
digiGate.co.uk
Note: The door must not
have 1 switch which
controls both open and
close like this graphic.
