Summary of Contents for DigiTech XC4833

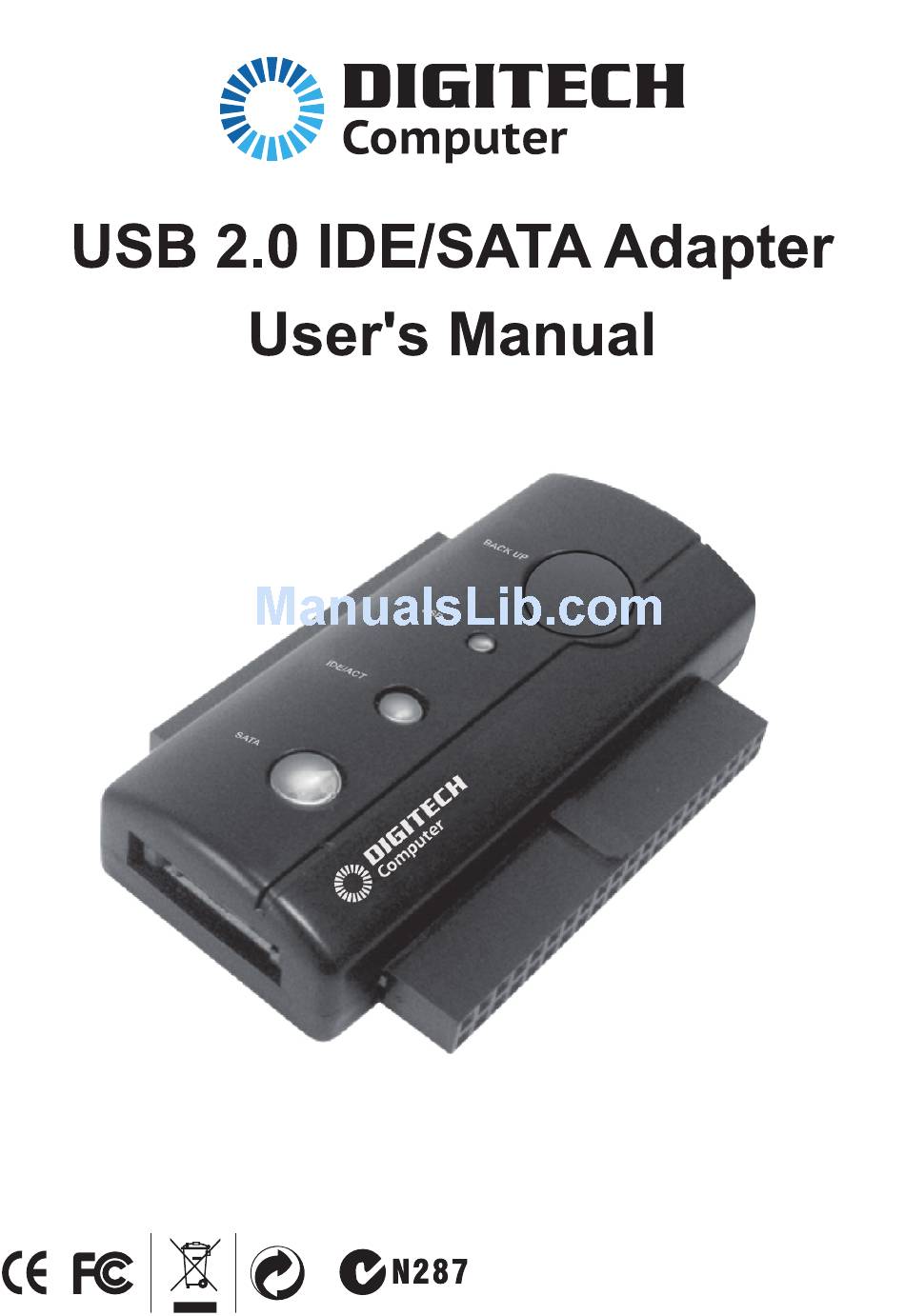

- Page 1 Model.: XC4833...

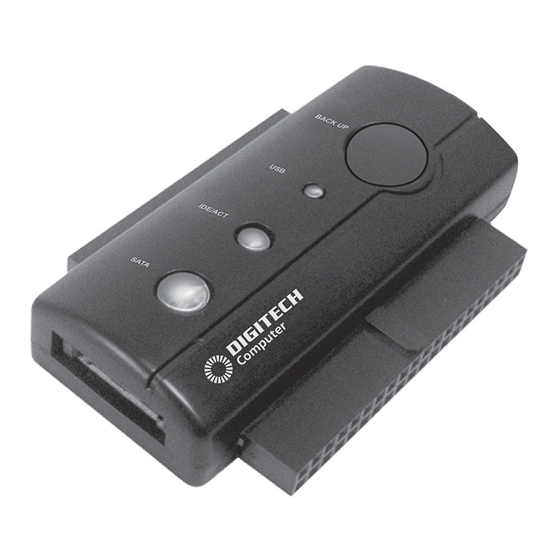

- Page 2 USB 2.0 TO IDE & SATA Adapter 1.Characteristics • Support SATA spread-spectrum transmitter • Support SATA II Asynchronous Signal Recovery (Hot Plug) feature • Compliance with USB 2.0 (Hi-Speed USB) electrical specification • Compliance with USB Mass Storage Class Bulk-Only Transport Specification •...
- Page 3 4) When the following screen displays, please check "Search for the best driver for your device (Recommended)" and press "Next". 5) When the following screen displays, please locate the driver folder included by the driver CD-ROM shipped with this USB HDD...
- Page 4 6) When the following screen displays, please press "Next" 7) When the following screen displays, please press "Finish" Windows ME/2000/XP No need driver installation in those OS platform. 3. Verification Please track the path "My computer” and "My computer” -- > “System Properties” -- >...
- Page 5 4. If you use a all new HDD 1) Please use " Fdisk " to set the capacity of your HDD, but this will destroy all the data in the HDD. 2) Format your HDD by standard procedures, if you can't find your new HDD, please following the steps in FAQ-1 Note: "Fdisk"...
-
Page 6: One Touch Backup
ONE TOUCH BACKUP User's Manual Notice • The type of file system is able to support FAT32 and NTFS both. • When users operate the PCClone EX Lite, the login must be from Administrator; it can not login from the Guest or any authorized account. •... - Page 7 5. Please setup the installing pathway, and then click “Install” to next. 6. The installation is completed, please click “ OK” to exit. 7. “PCClone Ex” icon will displays in the notification area after setup; users can double- click the icon or press the right key of the mouse to execute PCClone...
- Page 8 Create Partition If your USB HDD has managed already, please skip this part and move on next context. Steps ------------------------------------------------------------------------------------------------------------------- 1. Please plug USB HDD. (Turn on the USB power.) 2. Please right click "My computer", and point "manage".(It also can click in succession as" Start"->"Control Panel"->...
- Page 9 6. Also, you can format USB hard disk by "FNet FAT32 Utility" and then you can start the backup function. (The detail format steps please refer to the section of "FNet FAT32 Utility".)
- Page 10 FAT32 Format Utility For the current HDD capacity is getting bigger, the Fat32 Format Utility in Windows 2000 / XP is not able to support the HDD size exceeding 32GB;FNet recommends FNet Fat 32 Format Utility, which can format the large capacity to be FAT32 Format rapidly and fully, the size even maximums up to 4 TB (4000GB).
- Page 11 5. The window shows in progress. 6. The formatting is completed. Please press “OK”. (The selected USB HDD has formatted by this program to be FAT32 file system.) One Button File Backup (Windows 98 / Me do not support) One Button backup function only supports the external HDD case with button design--It won't set comprehensive steps for backup anymore, only use the button on the external HDD case.
- Page 12 4. A dialog window will jump out for confirming the File backup or, users can click "start" by the mouse. 5. When the backup is in progress, PCCloneEX diagram will be blinking at the notification area. There is a dialog box will be displayed the progress every single 10 percentages.
- Page 13 Quick Launch 1. Quick Launch. 5. File Backup. 2. File Backup. 6. Minimized. 3. File Manager. 7. About. 4. Setup. 8. Help. Quick File Backup Users can directly execute “File Backup” from Quick Launch, or use their own “hot key”, only one step, and the system data will be backed up easily.
- Page 14 5. Appearing a dialog screen, please click “OK” to backup. 6. When backup is in progress, the widow shows progress and proceed time) 7. When backup is done, click “OK” for backup finish! (The file backup has been successfully through PCCloneEX into USB HDD.)
- Page 15 File Backup 1. File Backup. 2. File Restore. Step ------------------------------------------------------------------------------------------------------------------- 1. Please plug the USB HDD into the computer, and turn on the power. 2. Execute PCClone EX. 3. Click“File backup”. 4. Select folders / drives from the fix device. 5.
- Page 16 7. Backup is completed, please press “OK”. 8. The selected folders have been moved from the fixed devise to the USB device successfully. 9. There is a hidden root directory F: FNet in the USB device, all the file backups are kept in there.
- Page 17 File Restore Step -------------------------------------------------------------------------------------------------------------------- 1. Please plug the USB HDD, and turn on the power. 2. Execute PCClone EX. 3. Go on the PCClone Ex screen. 4. Click “File Backup”. 5. Select folders/files of USB device you would like to restore. 6.
- Page 18 Erase File Backup 1. Please plug USB HDD, and turn on the power. 2. Execute PCClone EX. 3. Go on PCClone Ex screen. 4. Select the “File backup” of USB Device, then, right click the mouse to click “Delete select Files”, all select files in the USB device will be deleted.
- Page 19 Setup File Backup -------------------------------------------------------------------------------- Hot Key setup When users click “ Edit”, which can be made up of their own hot key by choosing “Ctrl”, “shift”, “Alt” and Added a number, or a letter, or function key, or whatever they want to consist of a hot key.
