5.2.1 LOCATED OUTSIDE NEAR CONTROL UNIT

Your digiGate system and all components must be installed within a waterproof enclosure.
Step 1: Install a waterproof enclosure at the gate. This waterproof enclosure will house the
digiGate, power supply, WiFi antenna (if selected) and call to open module (if selected).
Step 2: Install power supply by following steps at section 5.4.
Step 3: Mount the digiGate inside the enclosure using the provided mounting bracket. A din-
rail adapter or double-sided tape/velcro can be used here to fix the bracket.
Step 4: Network connection
Standard WiFi antenna: If you purchased a digiGate with the standard WiFi antenna,
insert this into any of the spare USB ports.
13dBi Waterproof WiFi antenna: If you purchased a digiGate with the upgraded
waterproof WiFi antenna, drill a small hole in the bottom of the waterproof
enclosure (if required) and feed the USB cable through this. Ensure the hole is
correctly ducted and sealed to ensure no water can enter.
Ethernet only: If you are using an Ethernet connection, insert the Ethernet cable into
the port on the digiGate. Do not insert any USB WiFi antennas into the digiGate if
ethernet is in use.
Step 5: If purchased, Insert GSM call-to-open module (with SIM inserted) into any spare USB
port. Full GSM call-to-open module instructions can be found at section 12.
Step 6: Connect digiGate to control board using switch cables by following the steps at
section 5.3.

5.2.2 LOCATED INSIDE NEAR SWITCH/PUSH BUTTON

If you are installing your digiGate inside a watertight location, you do not need to use a
waterproof enclosure.

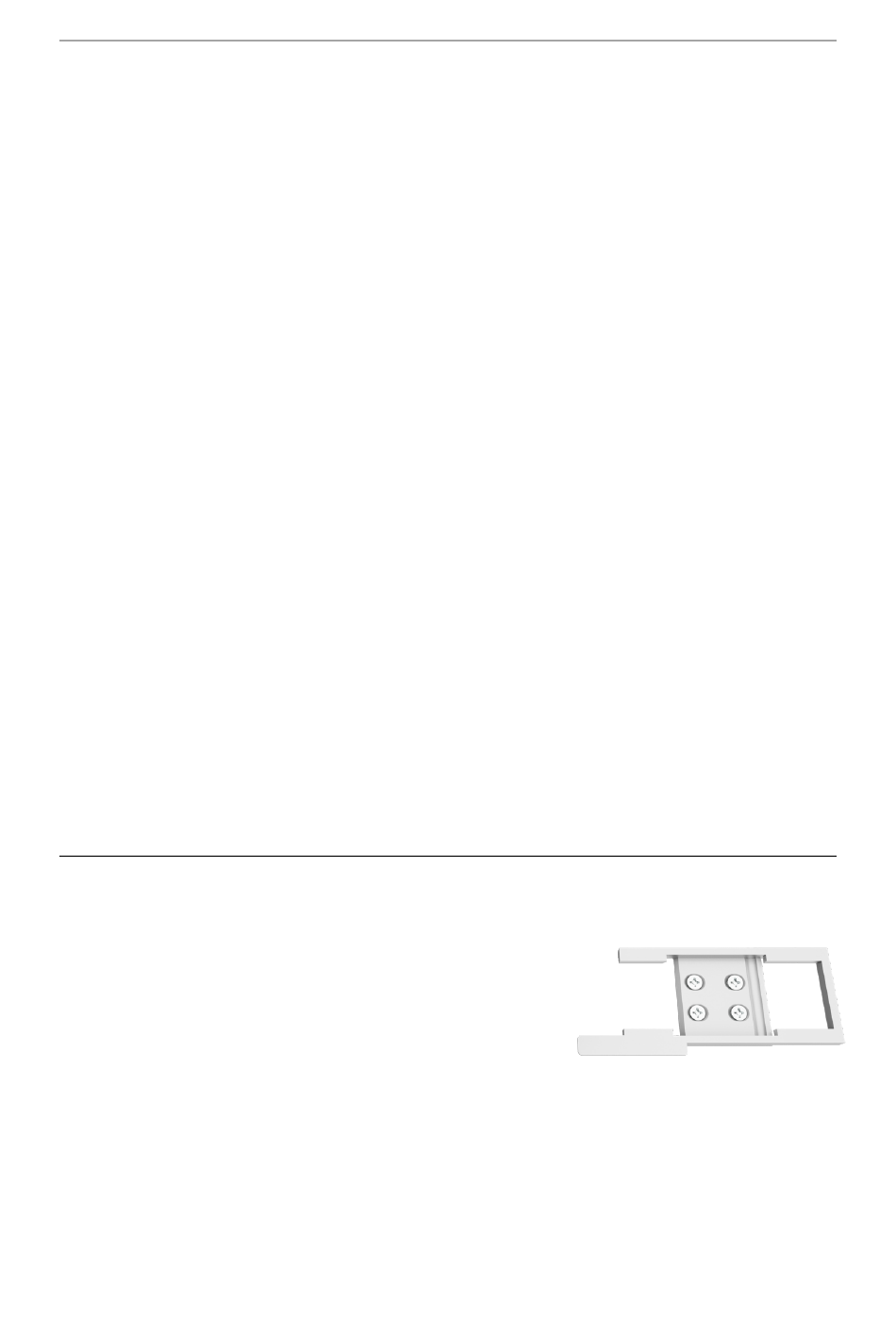

Step 1: Position your digiGate mounting bracket on a wall
close to your control unit and mark the position with a pencil
by drawing through the 4 screw holes. This is where
your digiGate will be permanently situated.
Step 2: Drill into the wall where you marked the 4 holes and insert screw plugs.
Step 3: Position the digiGate bracket over these plugs and screw screws through the bracket
holes into the plugs so the bracket sits firmly on the wall. Orientation does not matter.
