6.3 CONNECTING TO OVERRIDE SWITCH/PUSH BUTTON

Note: This section is for connecting to your gate override switch or push button. If you do not have an override
switch or push button or cannot access it, please refer to the previous section for instructions on connecting to
the main gate control unit itself.
Step 1: Safely remove the front of the override switch. There should be some accessible
screws on the outside which need to be removed. Once removed, carefully lift off the front
panel but be careful not to force the panel off in case there are some cables attached, in
which case remove these gently.

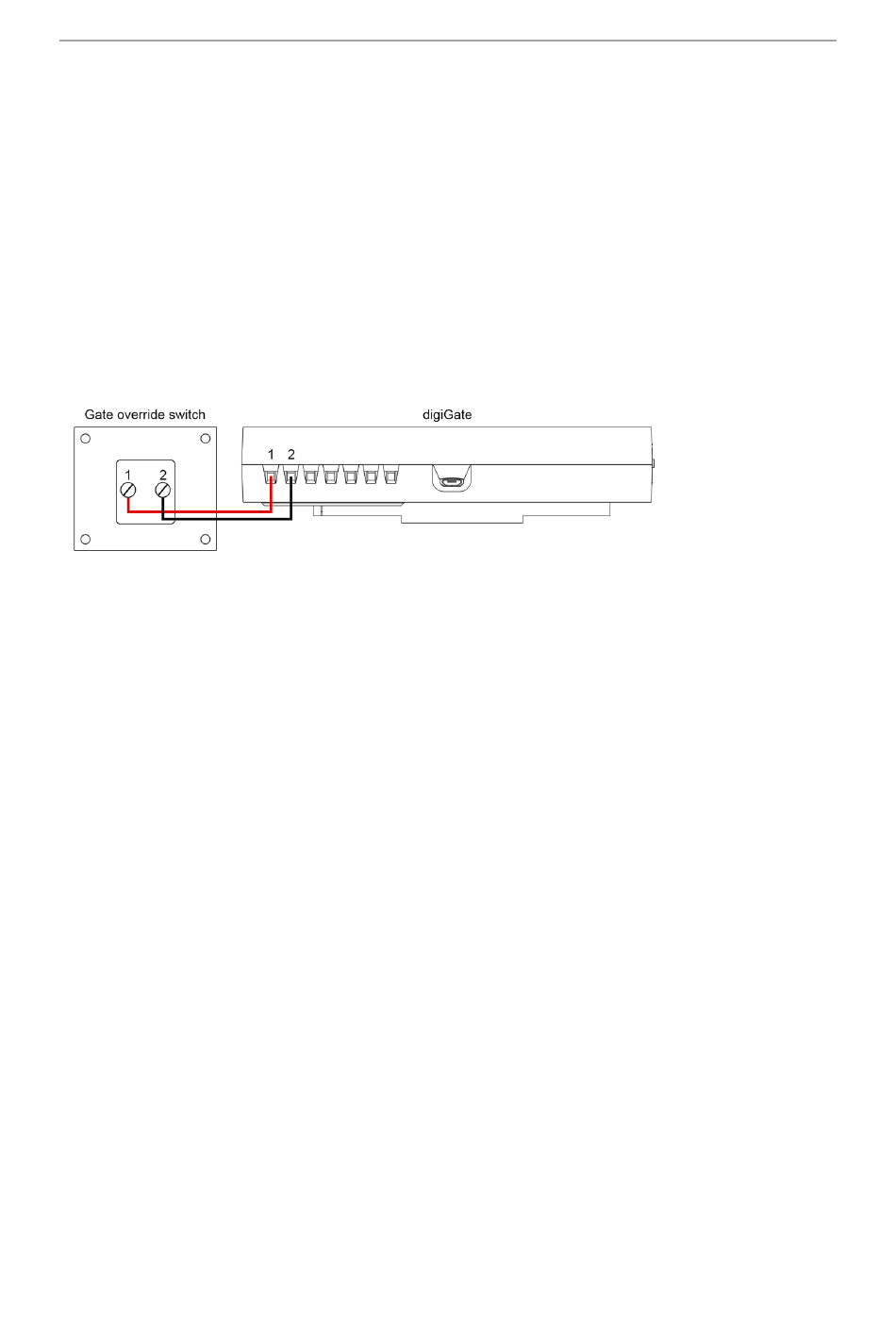

Step 2: Locate the two terminals connected to the reverse of the open gate button. Connect
a switch cable to each of these terminals from digiGate terminals 1 & 2 as shown in the
diagram below. It does not matter which cable connects to which terminal as long as they
are not both connected to the same.
Step 3: Re-assemble the override switch again with the front fixed back in place, ensuring no
metal from the cables is exposed.
Step 4: Mount your digiGate on the wall bracket by following steps at section 10.
Step 5: Connect power as described in section 5.4, WiFi antenna if used and GSM call-to-
open module if purchased.
