Tyco Bentel Security PowerG BW-SRO Installation Manual

Installation Guide
1. INTRODUCTION
The BW-SRO is a fully wireless outdoor siren, designed for installation
in areas in which wiring action is difficult or impossible.
The siren is compatible with PowerG control panels.
Note: Operations described in these instructions applies to BW control
panels. For further information related to operations with a different
control panel, refer to the control panel's instructions.
Features
Siren and strobe light activation: When an identified event
l
message is received from the compatible PowerG alarm system,
the siren activates its sounder & strobe light.
Notes:
The sounder is activated for a predefined "Bell Time" (refer to the
control panel Installer Guide), according to local authorities
requirements, or until the system is disarmed, whichever occurs
first.
The strobe light operates as described in the PowerG Installer
Guide.
Tamper indication: In case of tamper while the system is armed,
l
the siren transmits the message to the alarm system and then the
alarm system determines whether the siren should be activated or
not. If the siren does not receive an acknowledge message from the
alarm system, the siren will function independently.
Low battery voltage alert: When the battery voltage is low, a low
l
battery message is sent to the alarm system. After the low voltage
message delivery, at least 2 siren alarms are possible before the
siren is totally inactive.
Power Supply: Non-rechargeable battery.
l
Sound Types: Burglar (between 1400 Hz - 3200 Hz), fire, gas
l
(CO) and flood.
Entry/Exit: Exit delay beeps sound once the user has armed the
l
system. Entry delay beeps sound once the user has entered the
protected area. (Entry/exit beeps can be enabled / disabled from
the control panel Installer menu.)
Squawk indications: Squawk (beep) sounds can be used to
l
indicate alarm system arming (1 squawk) and disarming (2
squawks) by a keyfob (squawk can be enabled from the control
panel User menu).
Freezer trouble beeps: If a freezer trouble zone reports a trouble,
l
such as a change in temperature, freezer trouble beeps occur every
minute for indoor or outdoor sirens. You can turn on or turn off
freezer trouble beeps in the control panel Installer menu.
D-308696 BW-SRO Installation Guide
BW-SRO
Fully Wireless PowerG Outdoor Siren
Strobe Light Color: The siren can be purchased with blue lens.
l
Siren activity LED: A flashing LED (optional, at the bottom of the
l
siren front panel) indicates siren activity (can be disabled by the control
panel)
Double Tamper protection: When the siren front panel is removed
l
or when the siren is removed from the wall, tamper alarm is sent to the
alarm system.
Important! The BW- SRO siren must be installed on the wall in a
vertical position with the screw pointing to the floor only, as illustrated
in Figure 1b. The importance of correct positioning of the BW-SRO is
to enable the siren to function as a waterproof device.
2-way full supervision
l
The siren is fully supervised, 2-way communication device. It includes
a receiver, to receive event messages from the alarm system, and a
transmitter, to periodically transmit its status signal to the alarm
system.
A. BW-SRO can be recognized
outwardly by its red screw cap.

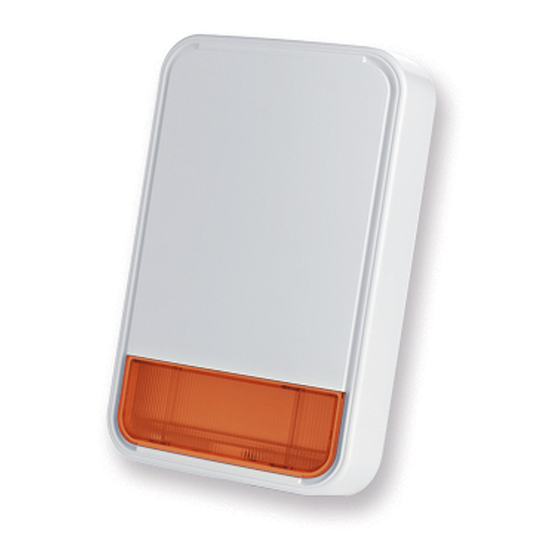

Fig. 1a External View
Self-test feature
Upon pressing the self test switch, siren functional check is performed -
low level sounds and flash light indicate that the siren is serviceable.
B. Wall
Fig. 1b Mounting Position
1
