Tyco 601SBD Installation Instructions

MZX Fire detection system
601SBD TYPE 'A' SOUNDER BASE - INSTALLATION
INSTRUCTIONS
GREEN TEMPORARY PARK PLUNGER

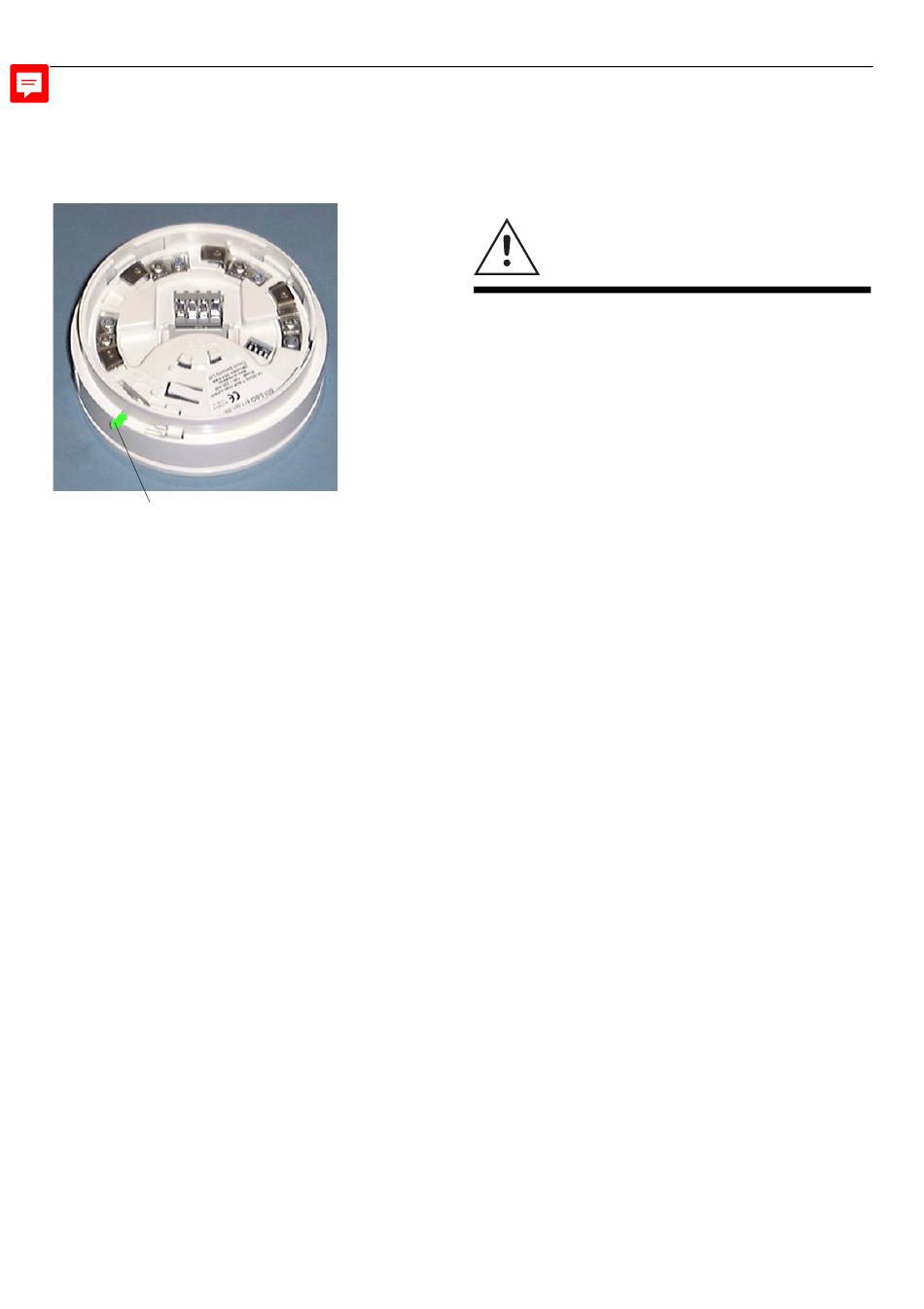

Fig. 1: 601SBD Diode Sounder Base
TECHNICAL SPECIFICATION
System Compatibility:
Environment:
Operating Temperature:
Storage Temperature:
Operating Humidity:
Dimensions:
Height:
Diameter:
Weight:
Mounting Requirements: Flat surface or electrical
Wire Size:
Electrical Characteristics:
Sounder operating:
Installation Instructions Doc. version 5.0
www.acornfiresecurity.com
Use only with Conven-
tional Fire Alarm Controllers
Indoor Application only
o o
-25 to +70 C
o o
-40 to +80 C
Up to 95%
non-condensing
37.5mm
107.8mm
0.192kg
backbox with 50mm fixing
centreswith the 4" flange.
2
Min 1.5mm
2
Max 2.5mm
6.8mA at full volume
(90dBA)1.2mA at low vol-
ume (68dBA)
www.acornfiresecurity.com
CAUTION
Ensure that site plan defines the
polarity of polarity conscious bases.
Electromagnetic Compatibility:
The 601SBD complies with the following:
Product family standard EN50130-4 in respect of
Conducted Disturbances, Radiated Immunity,
Electrostatic Discharge, Fast Transients and Slow
High Energy.
EN50081-1 for emissions.
INTRODUCTION
The 601SBD Diode Sounder Base provides an addi-
tional sounder function on conventional fire detec-
tion circuits. The 601SBD is for use in detection cir-
cuits complying with BS5839 Part 1, which requires
that if callpoints are wired after detectors on a zone
circuit, the removal of a detector will not affect the
operation of these callpoints.
The 601SBD Sounder Base operates independently
of the detector circuit and may be used without an
associated detector. When used without a detec-
tor, a cap Part No. 557.001.040.A.T.Y must be fitted
and if loop wiring is required, then the alternative
wiring method should be used.
FEATURES
The 601SBD Diode Sounder Base provides eight
tone and variable volume settings.
WIRING NOTES
The following notes apply:
a) All wiring must conform to the current edition
of IEE Wiring Regulations and BS 5839 Part 1.
b) All wiring must be free of earths.
601SBD
1/4
