p

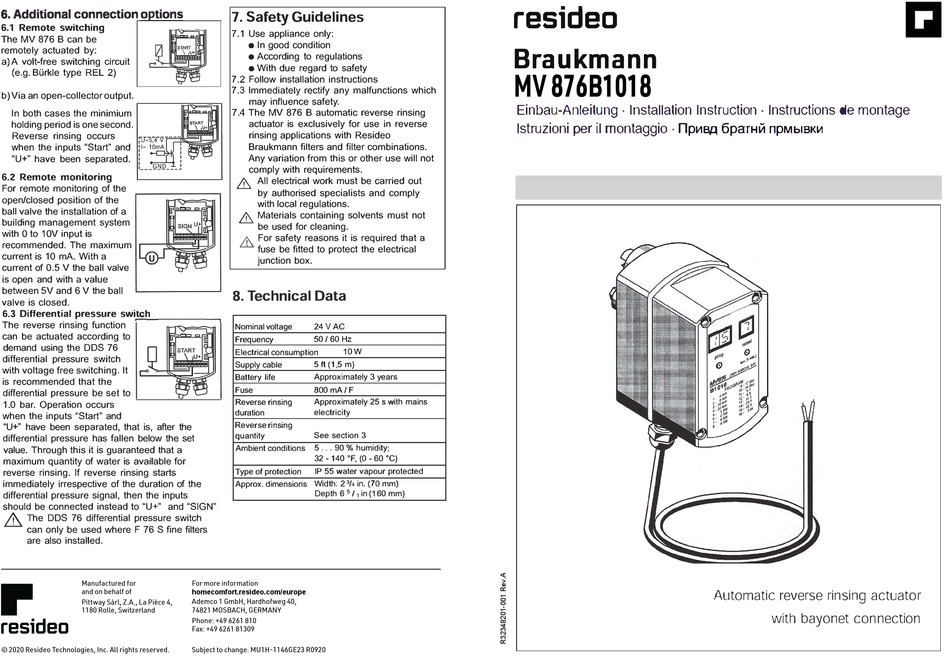

6. Additional connection o tions
6.1 Remote switching
The MV 876 B can be
remotely actuated by:
a) A volt-free switching circuit
(e.g. Bürkle type REL 2)
b) Via an open-collector output.
In both cases the minimium
holding period is one second.
Reverse rinsing occurs
when the inputs "Start" and
"U+" have been separated.
6.2 Remote monitoring
For remote monitoring of the
open/closed position of the
ball valve the installation of a
building management system
with O to 1 OV input is
recommended. The maximum
current is 10 mA. Wilh a
current of 0.5 V the ball valve
is open and with a value
between 5V and 6 V the ball
valve is closed.
6.3 Differential pressure swi_ ;:;. tc
h
____
;;:..;
..;._
The reverse rinsing function
can be actuated according to
demand using the DOS 76
differential pressure switch
with voltage free switching. lt
is recommended !hat the
differential pressure be sei to
1.0 bar. Operation occurs
when the inputs "Start" and
"U+" have been separated, that is, after the
differential pressure has fallen below the sei
value. Through this it is guaranteed !hat a
maximum quantity of water is available for
reverse rinsing. lf reverse rinsing starts
immediately irrespective of the duralion of the
differential pressure signal, then the inputs
should be connected instead to "U+" and "SIGN"
&_
The DOS 76 differential pressure switch
can only be used where F 76 S fine filters
are also installed.
Manufactured for
and on behalf of
Pittway Sàrl, Z.A., La Pièce 4,
1180 Rolle, Switzerland
© 2020 Resideo Technologies, Inc. All rights reserved.
7. Safety Guidelines
7.1 Use appliance only:
• In good condition
• According to regulations
• With due regard to safety
7.2 Follow installation instructions
7.3 lmmediately rectify any malfunctions which
may influence safety.
7.4 The MV 876 B automatic reverse rinsing
actuator is exclusively for use in reverse
rinsing applications with Resideo
Braukmann filters and filter combinations.
Any variation from this or other use will not
comply with requirements.
&
All electrical work must be carried out
by authorised specialists and comply
with local ·regulalions.
&
Materials containing solvents must not
be used for cleaning.
&
For safety reasons it is required !hat a
· fuse be fitted to protect the electrical
junction box.
8. Technical Data
_
Nominal voltage
24VAC
Frequency
50/60Hz
10W
Electrical consumption
Supply cable
5 ft (1,5 m)
Battery life
Approximately 3 years
Fuse
800 mA/ F
Approximately 25 s with mains
Reverse rinsing
duration
electricity
Reverse rinsing
quantity
See section 3
Ambient conditions
5 ... 90 % humidity;
32 - 140 'F, (0 • 60 'C)
Type of protection
IP 55 water vapour protected
Width: 2 ¾ in. (70 mm)
Approx. dimensions
Depth 6
5
/
in (160 mm)
1
For more information
homecomfort.resideo.com/europe
Ademco 1 GmbH, Hardhofweg 40,
74821 MOSBACH, GERMANY
Phone: +49 6261 810
Fax: +49 6261 81309
Subject to change. MU1H-1146GE23 R0920
resideo
Braukmann
MV 876B1018
Einbau-Anleitung • Installation lnstruction • lnstructions de montage
lstruzioni per il montaggio
• np1-1B,Q 6parHLii npMblBKL-1

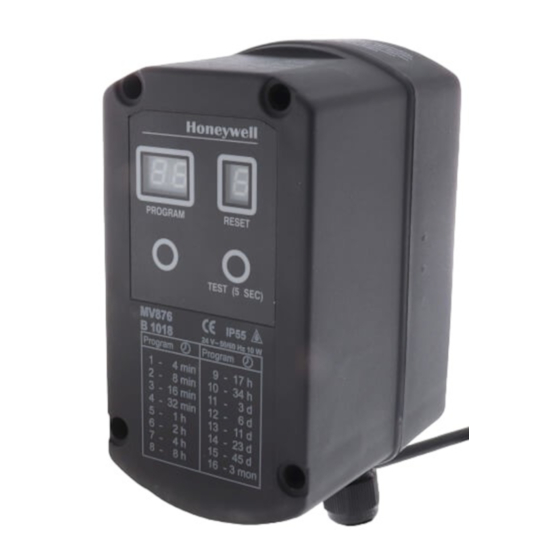

Automatie reverse rinsing actuator
with bayonet connection
