Jordaan+ Accessory Installation Manual
This manual will guide you through the installation process of all your Jordaan+ accessories!
Positioning of the handlebar
If you have not done so already, please start by bringing the handlebar in the
correct position before you begin the installation of your accessories. You will
need a ​ 6 mm allen key​ for this.
Step 1
Start by loosening the vertical bolt of the
handlebar stem using ​ a 6 mm allen key​ . Set the
handlebar to your preferred height and make
sure it is aligned with the frame of the bike before
tightening this bolt again.
Step 2

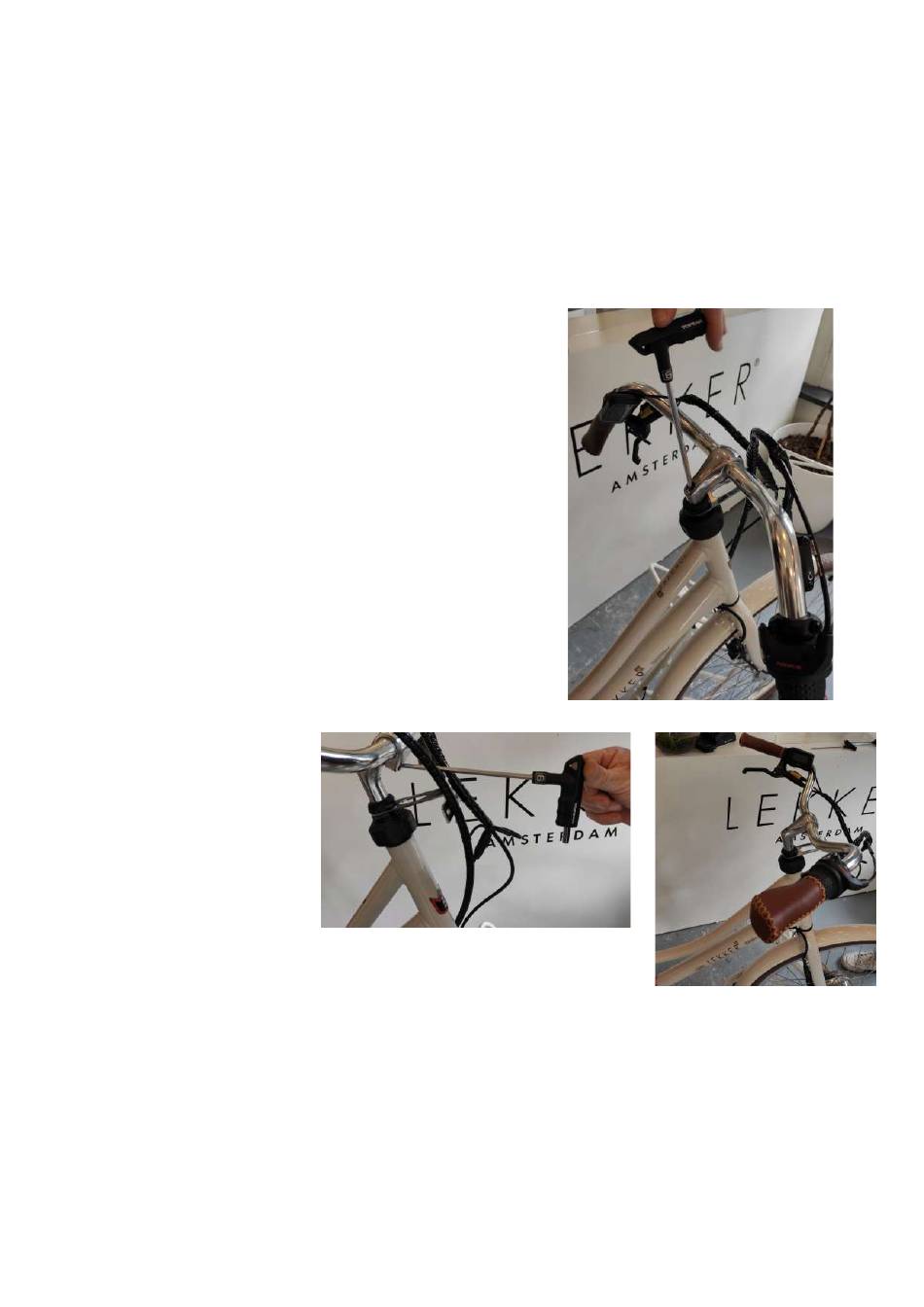

Next, loosen the bolt on
the front of the
handlebar stem with a
6 mm allen key​ . Adjust
the angle of the
handlebar until it is in
the correct position. As
a reference, see the
picture to the right. You might need to adjust the angle of
the brakes and gear lever with a ​ 3 and 4mm Alan key​ .
Congratulations,
You have successfully assembled the handlebar of your LEKKER bike! If you
have accessories for your Jordaan+ you can now proceed to install them using
the instructions on the next pages.
