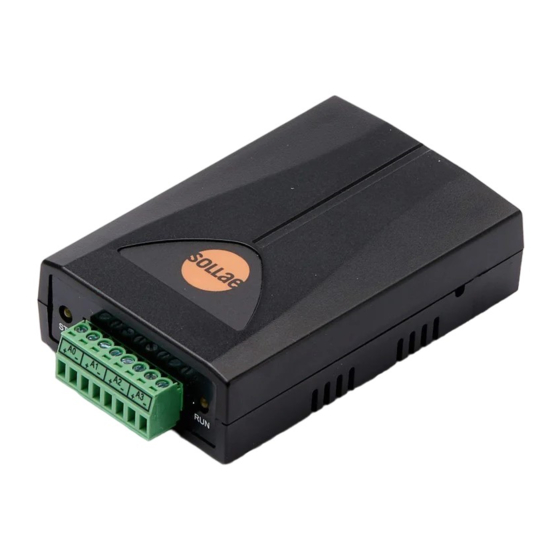

- Page 1 4-Port Analog Input I/O Gateway SIG-5431 User Manual Version 1.1 Sollae Systems https://www.ezTCP.com...
- Page 2 SIG-5431 User Manual Ver. 1.1 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
-
Page 3: Table Of Contents
SIG-5431 User Manual Ver. 1.1 Contents Overview ............- 4 - 1.1 Introduction ............- 4 - 1.2 Features ............- 4 - 1.3 Specification ............- 5 - 1.4 Interface ............- 6 - 1.4.1 Power ..............- 6 - 1.4.2 Ethernet ............... - Page 4 SIG-5431 User Manual Ver. 1.1 4.3.1 Output Tab ............- 20 - 4.3.2 FW Log Tab ............- 21 - 4.3.3 Timeout ............... - 21 - 4.4 Export/Import Setting Values ........- 22 - 4.5 Factory Reset ............- 23 - Technical Support and Warranty ........
-
Page 5: Overview
Overview 1.1 Introduction SIG-5431 is an industrial I/O Gateway connected to Sollae Cloud. It is equipped with 4 analog input ports and an Ethernet interface. Users can remotely monitor analog values of sensors connected to this product by using a web browser on your PC, tablet or smartphone. -
Page 6: Specification
SIG-5431 User Manual Ver. 1.1 1.3 Specification Analog Input Input Type Voltage (0V ~ 5V) or Current (4mA ~ 20mA / 0mA ~ 20mA) Resolution 12 bits Number of Ports 4 ports Network Physical Interface 10Base-T/100Base-TX Ethernet (RJ45) Network Interface... -
Page 7: Interface
SIG-5431 User Manual Ver. 1.1 1.4 Interface Figure 1-1 Interface 1.4.1 Power SIG-5431 requires DC5V power supply whose specification is as follows: Figure 1-2 Power - 6 - https://www.ezTCP.com... -
Page 8: Ethernet
SIG-5431 User Manual Ver. 1.1 1.4.2 Ethernet SIG-5431 provides 10/100Mbps Ethernet. The pin assignment is as follows: Figure 1-3 Ethernet 1.4.3 Analog Input Port This port is interfaced with a 3.5mm pitch 8-pole terminal block. Figure 1-4 Analog Input Port ⚫... -
Page 9: Led
SIG-5431 User Manual Ver. 1.1 1.4.4 LED SIG-5431 provides 4 LEDs. Figure 1-5 4 LEDs LED operations according to each state are as follows: When the script is running: RUN When the script is running: RUN When a network is not connected: LINK When a network is connected: LINK When a MQTT connection is NOT established: MTX &... -
Page 10: Preparation
SIG-5431 User Manual Ver. 1.1 Preparation 2.1 Installing the Setting Tool You need a Windows program which is called spFinder to use this product. Download the program on our web site and install it on your PC. Functions of the spFinder are as follows: ⚫... -
Page 11: Settings
SIG-5431 User Manual Ver. 1.1 Settings 3.1 Network 3.1.1 Obtain an IP address automatically This product can automatically obtain an IP address by DHCP. A DHCP server is required to use this. Figure 3-1 Obtain an IP address automatically ⚫ Select the [Obtain an IP address automatically]. -
Page 12: Use A Static Ip Address
SIG-5431 User Manual Ver. 1.1 3.1.2 Use a Static IP address You can set a static IP address to this product. Figure 3-2 Use a static IP address ⚫ Select the [Use static IP address]. ⚫ Set the [Local IP address], [Subnet mask], [Gateway IP address] and [DNS IP address]. -
Page 13: General
SIG-5431 User Manual Ver. 1.1 3.2 General Figure 3-3 General 3.2.1 Comments This setting is for storing the product description. The maximum setting size of this item is 32 bytes. We can add information such as: When the device is registered to the cloud, this field will be used as the default device description on Sollae Cloud. -
Page 14: Security
SIG-5431 User Manual Ver. 1.1 3.3 Security Figure 3-4 Security 3.3.1 Password Both ID and password are required to access this product. Note that changing the default password to another is highly recommended for security. The password should be longer than 8 characters. -
Page 15: Client Id
SIG-5431 User Manual Ver. 1.1 ⚫ Remote access If this item is checked, the product can be connected from the remote network. For security, this item is unchecked by default. 3.3.4 Client ID The Unique ID which is used to register the device under your account in Sollae Cloud. -
Page 16: Management
SIG-5431 User Manual Ver. 1.1 Management 4.1 Checking Status This is a function to view the current status of the product. Information in the [Status] window automatically updated every second. After searching connecting the product with spFinder, press the [Status] button to display this window. -
Page 17: Communication Status
SIG-5431 User Manual Ver. 1.1 4.1.2 Communication Status ⚫ Communication Status Window This area shows some communication status of your product. This area is refreshed every second. Figure 4-2 Communication Status Window ⚫ REGISTRATION STATE The registration state indicates whether the device is registered on Sollae... -
Page 18: Timeout
SIG-5431 User Manual Ver. 1.1 ⚫ DEVICE STATE The device operation state. Status STARTING UPDATING INFORMATION TO CLOUD FAILED TO UPDATE INFORMATION TO CLOUD DEVICE IS UNREGISTERED TO AN USER CONNECTING MQTT SERVER MQTT CLOSED MQTT CONNECTED TO CLOUD MQTT PING TO CLOUD... -
Page 19: Firmware Change
SIG-5431 User Manual Ver. 1.1 4.2 Firmware Change New firmware can be released when adding functions or fixing bugs. If you are using old firmware, you can upgrade it to the latest version. Firmware can be upgraded online or manually via spFinder, or remotely via Cloud. -
Page 20: Manual Upgrade
SIG-5431 User Manual Ver. 1.1 4.2.2 Manual Upgrade Figure 4-4 Manual Upgrade ⚫ Download a Firmware file to your PC. ⚫ Search and connect to your product by spFinder. ⚫ Click [Advanced] > [Firmware Change] menu. ⚫ Select to [Manual upgrade] on the [Firmware Upgrade] window. -
Page 21: Console
SIG-5431 User Manual Ver. 1.1 4.3 Console The console function analyzes and displays the the device’s operation status and log. After searching and connecting the product with spFinder, click [Console] in the [Advanced] menu to display the console window. When you open this window, the spFinder connects to the product and keeps the connection until you close the window or time out. -
Page 22: Fw Log Tab
SIG-5431 User Manual Ver. 1.1 4.3.2 FW Log Tab This tab displays the log message from Firmware. 4.3.3 Timeout This is the timeout display function that appears in the upper right of the console window. When this time reaches zero, the connection between spFinder and the product is lost. -
Page 23: Export/Import Setting Values
SIG-5431 User Manual Ver. 1.1 4.4 Export/Import Setting Values The [Export setting values] menu saves setting values of your product as a file. The password is not included in the file. The [Import setting values] menu loads a setting values from a file which is saved by the [Export setting values] menu. Find these functions at the [Advanced] menu. -
Page 24: Factory Reset
SIG-5431 User Manual Ver. 1.1 4.5 Factory Reset Performing the Factory Reset, you can restore all the settings to the default including the password. Follow the procedure below by checking the status of RUN LED. 1. Press and immediately release the function button. -
Page 25: Technical Support And Warranty
Technical Support and Warranty 5.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: ⚫ E-mail: support@eztcp.com... -
Page 26: Precaution And Exemption From Liability
⚫ Specifications of the product are subject to change without prior notice for performance improvement. ⚫ Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications. ⚫ Reverse engineering of firmware and applications provided by Sollae Systems is prohibited. -
Page 27: Exemption From Liability
(including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the SIG-5431 even if Sollae Systems Co., Ltd. or its distributors have been informed of such damages. -
Page 28: French Version
à leur propriétaire et Fabricant respectif. ⚫ Conditions d’utilisations et limite de responsabilité En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, dommages... - Page 29 SIG-5431 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier SIG-5431 puisse être échangé au titre de la garantie.
-
Page 30: Revision History
SIG-5431 User Manual Ver. 1.1 Revision History Date Version Description Author 2020.12.02. 1. Created Khanh 2022.07.28. 1. Add a notification about FCC Roy Lee - 29 - https://www.ezTCP.com...
