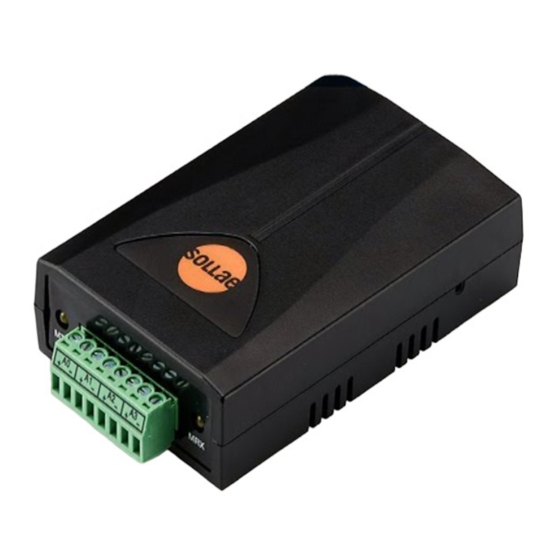

- Page 1 PT100 Temperature Sensor Gateway SIG-5561 User Manual Version 1.2 Sollae Systems https://www.ezTCP.com...
- Page 2 SIG-5561 User Manual Ver. 1.2 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
-
Page 3: Table Of Contents
SIG-5561 User Manual Ver. 1.2 Contents Overview ............- 4 - 1.1 Introduction ............- 4 - 1.2 Features ............- 4 - 1.3 Specification ............- 5 - 1.4 Interface ............- 6 - 1.4.1 Power ..............- 6 - 1.4.2 Ethernet ............... - Page 4 SIG-5561 User Manual Ver. 1.2 4.3.2 FW Log Tab ............- 21 - 4.3.3 Timeout ............... - 22 - 4.4 Export/Import Setting Values ........- 22 - 4.5 Factory Reset ............- 23 - Technical Support and Warranty ........ - 24 - 5.1 Technical Support ..........
-
Page 5: Overview
SIG-5561 User Manual Ver. 1.2 Overview 1.1 Introduction SIG-5561 industrial PT100 Temperature Sensor Gateway. This product consisting of a PT100 connection port and an FND(Flexible Numeric Display) for displaying a temperature. The device measures temperature and sends it to Sollae Cloud. -
Page 6: Specification
SIG-5561 User Manual Ver. 1.2 1.3 Specification Analog Input Input Type 3-wire PT100 sensor (α=0.00385 Ω/(Ω·°C)) Resolution 16 bits Number of Ports 1 port Network Physical Interface Network Interface 10Base-T/100Base-TX Ethernet (RJ45) Ethernet Speed Auto Sense 1:1 or Cross-over Cable Auto Sense... -
Page 7: Interface
SIG-5561 User Manual Ver. 1.2 1.4 Interface Figure 1-2 Interface 1.4.1 Power SIG-5561 requires DC5V power supply whose specification is as follows: Figure 1-3 Power - 6 - https://www.ezTCP.com... -
Page 8: Ethernet
SIG-5561 User Manual Ver. 1.2 1.4.2 Ethernet SIG-5561 provides 10/100Mbps Ethernet. The pin assignment is as follows: Figure 1-4 Ethernet 1.4.3 PT100 Connection Port This port is interfaced with a 3.5mm pitch 3-pole terminal block. How to connect a PT100 sensor to this port is as follows: Figure 1-5 Connection with a PT100 sensor ⚫... -
Page 9: Led
SIG-5561 User Manual Ver. 1.2 1.4.4 LED SIG-5561 provides 4 LEDs for indicating status. Figure 1-6 4 LEDs LED operations according to each state are as follows: When the supplied power is stable: PWR When the supplied power is NOT stable: PWR... -
Page 10: Function Button
SIG-5561 User Manual Ver. 1.2 1.4.5 Function Button This button is used to implement a factory reset. 1.4.6 Setup Port This port is used for making a connection with a PC via USB cable. - 9 - https://www.ezTCP.com... -
Page 11: Preparation
SIG-5561 User Manual Ver. 1.2 Preparation 2.1 Installing the Setting Tool You need a program which is called spFinder to use this product. Download the program on our web site and install it on your PC. Functions of the spFinder are as follows: ⚫... -
Page 12: Settings
SIG-5561 User Manual Ver. 1.2 Settings 3.1 Network 3.1.1 Obtain an IP address automatically This product can automatically obtain an IP address by DHCP. A DHCP server is required to use this. Figure 3-1 Obtain an IP address automatically ⚫ Select the [Obtain an IP address automatically]. -
Page 13: Use A Static Ip Address
SIG-5561 User Manual Ver. 1.2 3.1.2 Use a Static IP address You can set a static IP address to this product. Figure 3-2 Use a static IP address ⚫ Select the [Use static IP address]. ⚫ Set the [Local IP address], [Subnet mask], [Gateway IP address] and [DNS IP address]. -
Page 14: General
SIG-5561 User Manual Ver. 1.2 3.2 General Figure 3-3 General 3.2.1 Comment This setting is for storing the product description. The maximum setting size of this item is 32 bytes. 3.2.2 Mode This setting is for selecting the temperature unit between Celsius and Fahrenheit. -
Page 15: Security
SIG-5561 User Manual Ver. 1.2 3.3 Security Figure 3-4 Security 3.3.1 Password Both ID and password are required to access this product. Note that changing the default password to another is highly recommended for security. The password should be longer than 8 characters. -
Page 16: Client Id
SIG-5561 User Manual Ver. 1.2 ⚫ Remote access If this item is checked, the product can be connected from the remote network. For security, this item is unchecked by default. 3.3.4 Client ID The client ID is used to register the device on Sollae Cloud. See... -
Page 17: Management
SIG-5561 User Manual Ver. 1.2 Management 4.1 Checking Status This is a function to view the current status of the product. Information in the [Status] window automatically updated every second. After searching connecting the product with spFinder, press the [Status] button to display this window. -
Page 18: Communication Status
SIG-5561 User Manual Ver. 1.2 4.1.2 Communication Status ⚫ Communication Status Window This area shows some communication status of your product. This area is refreshed every second. Figure 4-2 Communication Status Window ⚫ REGISTRATION STATE Status Description checking Obtaining information from Cloud... -
Page 19: Timeout
SIG-5561 User Manual Ver. 1.2 ⚫ DEVICE STATE Item STARTING UPDATING INFORMATION TO CLOUD FAILED TO UPDATE INFORMATION TO CLOUD DEVICE IS UNREGISTERED TO AN USER CONNECTING MQTT SERVER FAILED TO CONNECT TO MQTT SERVER MQTT CLOSED MQTT CONNECTED TO CLOUD... -
Page 20: Firmware Change
SIG-5561 User Manual Ver. 1.2 4.2 Firmware Change New firmware can be released when adding functions or fixing bugs. If you are using old firmware, you can upgrade it to the latest version. Firmware can be upgraded online or manually via spFinder. -
Page 21: Manual Upgrade
SIG-5561 User Manual Ver. 1.2 4.2.2 Manual Upgrade Figure 4-4 Manual Upgrade ⚫ Download a Firmware file to your PC. ⚫ Search and connect to your product by spFinder. ⚫ Click [Advanced] > [Firmware Change] menu. ⚫ Select to [Manual upgrade] on the [Firmware Upgrade] window. -
Page 22: Console
SIG-5561 User Manual Ver. 1.2 4.3 Console The console function displays the device states and some debugging message. After searching and connecting the product with spFinder, click [Console] in the [Advanced] menu to display the console window. When you open this window, the spFinder connects to the product and keeps the connection until you close the window or time out. -
Page 23: Timeout
SIG-5561 User Manual Ver. 1.2 4.3.3 Timeout This is the timeout display function that appears in the upper right of the console window. When this time reaches zero, the connection between spFinder and the product is lost. The initial value is 30 minutes. If you move the mouse pointer in the internal area of the console window, the timer is reset to the initial value again. -
Page 24: Factory Reset
SIG-5561 User Manual Ver. 1.2 4.5 Factory Reset Performing the Factory Reset, you can restore all the settings to the default including the password. Follow the procedure below by checking the status of RUN LED. 1. Press and immediately release the function button. -
Page 25: Technical Support And Warranty
Technical Support and Warranty 5.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: ⚫ E-mail: support@eztcp.com... -
Page 26: Precaution And Exemption From Liability
⚫ Specifications of the product are subject to change without prior notice for performance improvement. ⚫ Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications. ⚫ Reverse engineering of firmware and applications provided by Sollae Systems is prohibited. -
Page 27: Exemption From Liability
(including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the SIG-5561 even if Sollae Systems Co., Ltd. or its distributors have been informed of such damages. -
Page 28: French Version
à leur propriétaire et Fabricant respectif. ⚫ Conditions d’utilisations et limite de responsabilité En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, dommages... - Page 29 SIG-5561 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier SIG-5561 puisse être échangé au titre de la garantie.
-
Page 30: Revision History
SIG-5561 User Manual Ver. 1.2 Revision History Date Version Description Author 2022.03.22. - Initial release Khanh 2022.06.08. - Added the temperature unit Khanh 2022.07.28. - Add a notification about FCC Roy Lee - 29 - https://www.ezTCP.com...
