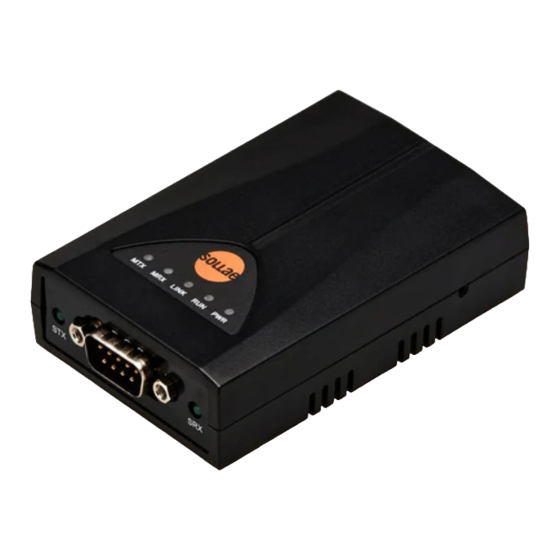

- Page 1 RS232 Modbus Gateway SMG-5410 User Manual Version 1.3 Sollae Systems https://www.ezTCP.com...
- Page 2 SMG-5410 User Manual Ver. 1.3 This symbol, found on your product or on its packaging, 2019.07.08. indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
-
Page 3: Table Of Contents
SMG-5410 User Manual Ver. 1.3 Contents Modbus Overview ..........- 4 - 1.1 Modbus .............. - 4 - 1.2 Modbus Gateway ............- 5 - Product Overview ..........- 6 - 2.1 Product Overview ............ - 6 - 2.2 Features ............- 6 - 2.3 Specification ............ - Page 4 SMG-5410 User Manual Ver. 1.3 5.1.2 Communication Status ..........- 22 - 5.1.3 Timeout ............... - 23 - 5.1.4 Copy status ............- 23 - 5.2 Firmware Change ............ - 24 - 5.2.1 Automatic Onine Upgrade..........- 24 - 5.2.2 Manual Upgrade ............- 25 - 5.3 Console ............
-
Page 5: Modbus Overview
SMG-5410 User Manual Ver. 1.3 Modbus Overview 1.1 Modbus Modbus is a serial communications protocol originally published by Modicon (now Schneider Electric) in 1979 for use with its programmable logic controller (PLCs). As a matter of fact, Modbus has become a standard communication protocol. -
Page 6: Modbus Gateway
SMG-5410 User Manual Ver. 1.3 1.2 Modbus Gateway Figure 1-1 Modbus Gateway Devices that use Modbus/TCP cannot directly communicate with devices that use serial line Modbus protocols. Because not only the physical interfaces are different also protocols compatible. want implement communication, you need a device that convert and route data of both sides. -
Page 7: Product Overview
Product Overview 2.1 Product Overview SMG-5410 is an industrial Modbus Gateway that converts and routes Modbus data between the serial line and Modbus/TCP. This can help communicate between Modbus master (or slave) of serial line and Modbus slave (or master) of network. - Page 8 SMG-5410 User Manual Ver. 1.3 Size 89mm x 57mm x 23mm Weight about 69g Operating Environment Input Voltage DC5V±0.5V Protection Reverse Voltage Protection / Surge Protection Current Consumption typically, 145mA Operating -40℃ ~ +85℃ Temperature Storage Temperature -40℃ ~ +85℃...
-
Page 9: Interface
SMG-5410 User Manual Ver. 1.3 2.4 Interface Figure 2-1 Interface 2.4.1 Power SMG-5410 requires DC5V power supply whose specification is as follows: Figure 2-2 Power - 8 - https://www.ezTCP.com... -
Page 10: Ethernet
SMG-5410 User Manual Ver. 1.3 2.4.2 Ethernet SMG-5410 provides 10/100Mbps Ethernet. The pin assignment is as follows: Figure 2-3 Ethernet 2.4.3 Serial Port SMG-5410 has D-SUB 9-pin male connector for connecting serial devices. Figure 2-4 Serial Port ⚫ Port Specification... - Page 11 SMG-5410 User Manual Ver. 1.3 ⚫ RS232 Signal Lines Number Name Description Level Wiring Data Carrier Detect RS232 Receive Data RS232 Required Transmit Data RS232 Required Data Terminal Ready RS232 Optional (Always Active) Ground Ground Required Data Set Ready RS232...
-
Page 12: Led
SMG-5410 User Manual Ver. 1.3 2.4.4 LED LED operations according to each state are as follows: When the supplied power is stable: PWR When the supplied power is NOT stable: PWR When the script is running: RUN When the script is NOT running: RUN... -
Page 13: Preparation
SMG-5410 User Manual Ver. 1.3 Preparation 3.1 Installing the Setting Tool You need a program which is called spFinder to use this product. Download the program on our web site and install it to your PC. Functions of the spFinder are as follows: ⚫... -
Page 14: Settings
SMG-5410 User Manual Ver. 1.3 Settings 4.1 Network 4.1.1 Obtain an IP address automatically This product can automatically obtain an IP address by DHCP. A DHCP server is required to use this. Figure 4-1 Obtain an IP address automatically ⚫ Select the [Obtain an IP address automatically]. -
Page 15: Use A Static Ip Address
SMG-5410 User Manual Ver. 1.3 4.1.2 Use a static IP address You can set a static IP address to this product. Figure 4-2 Use a static IP address ⚫ Select the [Use static IP address]. ⚫ Set the [Local IP address], [Subnet mask], [Gateway IP address] and [DNS IP address]. -
Page 16: General
SMG-5410 User Manual Ver. 1.3 4.2 General Figure 4-3 General 4.2.1 Comment This setting is for storing the product description. The maximum setting size of this item is 32 bytes. 4.2.2 Transmission Mode This setting selects a transmission mode of serial line Modbus data. You can select Modbus/RTU mode or Modbus/ASCII mode and the default is Modbus/RTU. -
Page 17: Modbus
SMG-5410 User Manual Ver. 1.3 4.2.5 Modbus ⚫ Query Flow This setting defines a direction of Modbus query. You can select TCP to Serial or Serial to TCP. If you select TCP to Serial, the product operates as a TCP server. -
Page 18: Tcp
SMG-5410 User Manual Ver. 1.3 ⚫ Response Timeout (Unit: ms) This setting defines expiration time for a Modbus query. The unit of this setting is millisecond. It can be set a number between 20 and 30000, and the default value is 500. - Page 19 SMG-5410 User Manual Ver. 1.3 ⚫ Multiple Connection This item enables multiple TCP connections. When this item is set to Disable, only one TCP session (TCP0) can be used. If this item is set to Enable, the rest of TCP sessions (TCP1 to 3) are activated. It means you can use 4 sessions at the same time.
-
Page 20: Security
SMG-5410 User Manual Ver. 1.3 4.3 Security Figure 4-6 Security 4.3.1 Password Both ID and password are required to access to this product. Note that changing the default password to another is highly recommended for security. The password should be longer than 8 characters. -
Page 21: Client Id
SMG-5410 User Manual Ver. 1.3 ⚫ Remote access If this item is checked, the product can be connected from the remote network. For security, this item is unchecked by default. 4.3.4 Client ID This is NOT available for this product. -
Page 22: Management
SMG-5410 User Manual Ver. 1.3 Management 5.1 Checking Status This is a function to view the current status of the product. Information in the [Status] window automatically updated every second. After searching connecting the product with spFinder, press the [Status] button to display this window. -
Page 23: Communication Status
SMG-5410 User Manual Ver. 1.3 5.1.2 Communication Status ⚫ Communication Status Window This area shows some communication status of your product. This area is refreshed every second. Figure 5-2 Communication Status Window ⚫ TCP STATE Status Description LISTEN Listen CLOSED... -
Page 24: Timeout
SMG-5410 User Manual Ver. 1.3 ⚫ DEVICE STATISTICS Item Description TCP0~3 The byte count of the TCP data: TX, RX, DROP EIO0 The byte count of the serial data: TX, RX, DROP The byte count of outgoing TCP/serial data The byte count of incoming TCP/serial data... -
Page 25: Firmware Change
SMG-5410 User Manual Ver. 1.3 5.2 Firmware Change New firmware can be released when adding functions or fixing bugs. If you are using old firmware, you can upgrade it to the new version. Firmware can be upgraded online or manually via spFinder. -
Page 26: Manual Upgrade
SMG-5410 User Manual Ver. 1.3 5.2.2 Manual Upgrade Figure 5-4 Manual Upgrade ⚫ Download a Firmware file to your PC. ⚫ Search and connect to your product by spFinder. ⚫ Click [Advanced] > [Firmware Change] menu. ⚫ Select to [Manual upgrade] on the [Firmware Upgrade] window. -
Page 27: Console
SMG-5410 User Manual Ver. 1.3 5.3 Console The console function analyzes and displays the Modbus frames sent and received by the product. After searching and connecting the product with spFinder, click [Console] in the [Advanced] menu to display the console window. When you open this window, the spFinder connects to the product and keeps the connection until you close the window or time out. -
Page 28: Fw Log Tab
SMG-5410 User Manual Ver. 1.3 ⚫ dump on Pressing this button starts printing communication data to the Output tab ⚫ dump off Pressing this button stops printing communication data to the Output tab ⚫ reset stat Press this button to reset all the communication status information statistics of the product. -
Page 29: Factory Reset
SMG-5410 User Manual Ver. 1.3 5.5 Factory Reset Performing the Factory Reset, you can restore all the settings to the default including the password. Follow the procedure below with checking the status of RUN LED. 1. Press and immediately release the function button. -
Page 30: Technical Support And Warranty
Technical Support and Warranty 6.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: ⚫ E-mail: support@eztcp.com... -
Page 31: Precaution And Exemption From Liability
⚫ Specifications of the product are subject to change without prior notice for performance improvement. ⚫ Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications. ⚫ Reverse engineering of firmware and applications provided by Sollae Systems is prohibited. -
Page 32: Exemption From Liability
(including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the SMG-5410 even if Sollae Systems Co., Ltd. or its distributors have been informed of such damages. -
Page 33: French Version
à leur propriétaire et Fabricant respectif. ⚫ Conditions d’utilisations et limite de responsabilité En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, dommages... - Page 34 SMG-5410 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier SMG-5410 puisse être échangé au titre de la garantie.
-
Page 35: Revision History
SMG-5410 User Manual Ver. 1.3 Revision History Date Version Description Author 2019.06.20. 1. Initial release Roy Lee 2019.07.08. 1. Correct some errors Roy Lee 2020.01.23. 1. Add Upgrading Firmware chapter Roy Lee 2. Apply changes of spFinder UI 3. Apply changes of parameters: Slave Address, Unit ID, Flow Control 4.
