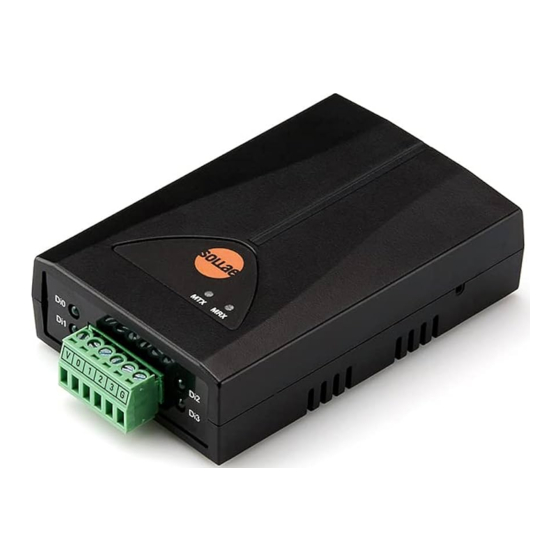

Sollae Systems SIG-5440 User Manual

Sollae Systems SIG-5440 User Manual

4-port digital input i/o gateway

Advertisement

Quick Links

4-Port Digital Input I/O Gateway
SIG-5440 User Manual
Version 1.0
Sollae Systems
https://www.ezTCP.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIG-5440 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sollae Systems SIG-5440

  • Page 1 4-Port Digital Input I/O Gateway SIG-5440 User Manual Version 1.0 Sollae Systems https://www.ezTCP.com...
  • Page 2 SIG-5440 User Manual Ver. 1.0 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
  • Page 3: Table Of Contents

    SIG-5440 User Manual Ver. 1.0 Contents Overview ............- 4 - 1.1 Introduction ............- 4 - 1.2 Features ............- 4 - 1.3 Specification ............- 5 - 1.4 Interface ............- 6 - 1.4.1 Power ..............- 6 - 1.4.2 Ethernet ...............
  • Page 4 SIG-5440 User Manual Ver. 1.0 4.3 Console ............- 25 - 4.3.1 Output Tab ............- 25 - 4.3.2 FW Log Tab ............- 26 - 4.3.3 Timeout ............... - 26 - 4.4 Export/Import Setting Values ........- 26 - 4.5 Factory Reset ............
  • Page 5: Overview

    SIG-5440 User Manual Ver. 1.0 Overview 1.1 Introduction SIG-5440 is an industrial I/O Gateway consisting of 4 digital input ports. Users can remotely monitor digital values of sensors connected to this product by using Modbus/TCP. 1.2 Features ⚫ 4 digital input ports ⚫...
  • Page 6: Specification

    SIG-5440 User Manual Ver. 1.0 1.3 Specification Digital Input Input Type Dry Contact / Wet Contact / NPN / PNP Input Voltage Range 2.5V ~ 25V Number of Ports 4 ports Network Physical Interface Network Interface 10Base-T/100Base-TX Ethernet (RJ45) Ethernet Speed Auto Sense...
  • Page 7: Interface

    SIG-5440 User Manual Ver. 1.0 1.4 Interface Figure 1-1 Interface 1.4.1 Power SIG-5440 requires DC5V power supply whose specification is as follows: Figure 1-2 Power - 6 - https://www.ezTCP.com...
  • Page 8: Ethernet

    SIG-5440 User Manual Ver. 1.0 1.4.2 Ethernet SIG-5440 provides 10/100Mbps Ethernet. The pin assignment is as follows: Figure 1-3 Ethernet 1.4.3 Digital Input Port This port is interfaced with a 3.5mm pitch 6-pole terminal block. Figure 1-4 Digital Input Port ⚫...
  • Page 9 SIG-5440 User Manual Ver. 1.0 ⚫ Circuit Diagram of Digital Input Figure 1-5 Circuit Diagram of Digital Input ⚫ WET contact Figure 1-6 WET contact - 8 - https://www.ezTCP.com...
  • Page 10 SIG-5440 User Manual Ver. 1.0 ⚫ DRY contact Figure 1-7 DRY contact ⚫ NPN transistor Figure 1-8 NPN transistor - 9 - https://www.ezTCP.com...
  • Page 11 SIG-5440 User Manual Ver. 1.0 ⚫ PNP transistor Figure 1-9 PNP transistor - 10 - https://www.ezTCP.com...
  • Page 12: Led

    SIG-5440 User Manual Ver. 1.0 1.4.4 LED SIG-5440 provides 8 LEDs. Figure 1-10 4 LED LED operations according to each state are as follows: When the script is running: RUN When the script is running: RUN When a network is not connected: LINK When a network is connected: LINK When a TCP connection is NOT established: MTX &...
  • Page 13: Function Button

    SIG-5440 User Manual Ver. 1.0 1.4.5 Function Button This button is used to implement a factory reset. 1.4.6 Setup Port This port is used for making a connection with a PC via USB cable. - 12 - https://www.ezTCP.com...
  • Page 14: Preparation

    SIG-5440 User Manual Ver. 1.0 Preparation 2.1 Installing the Setting Tool You need a program which is called spFinder to use this product. Download the program on our web site and install it on your PC. Functions of the spFinder are as follows: ⚫...
  • Page 15: Settings

    SIG-5440 User Manual Ver. 1.0 Settings 3.1 Network 3.1.1 Obtain an IP address automatically This product can automatically obtain an IP address by DHCP. A DHCP server is required to use this. Figure 3-1 Obtain an IP address automatically ⚫ Select the [Obtain an IP address automatically].
  • Page 16: Use A Static Ip Address

    SIG-5440 User Manual Ver. 1.0 3.1.2 Use a Static IP address You can set a static IP address to this product. Figure 3-2 Use a static IP address ⚫ Select the [Use static IP address]. ⚫ Set the [Local IP address], [Subnet mask], [Gateway IP address] and [DNS IP address].
  • Page 17: General

    SIG-5440 User Manual Ver. 1.0 3.2 General Figure 3-3 Modbus Gateway 3.2.1 Comments This setting is for storing the product description. The maximum setting size of this item is 32 bytes. 3.2.2 TCP ⚫ Communication Mode This item selects the TCP connection method. You can choose between TCP Server and TCP Client.
  • Page 18: Modbus

    SIG-5440 User Manual Ver. 1.0 connection is terminated. The unit is seconds and can be set between 0 and 3600. Default value is 60 3.2.3 Modbus ⚫ Modbus Type This item is to set the Modbus type. This product allows the Slave only.
  • Page 19: Security

    SIG-5440 User Manual Ver. 1.0 3.3 Security Figure 3-4 Security 3.3.1 Password Both ID and password are required to access this product. Note that changing the default password to another is highly recommended for security. The password should be longer than 8 characters.
  • Page 20: Client Id

    SIG-5440 User Manual Ver. 1.0 ⚫ Remote access If this item is checked, the product can be connected from the remote network. For security, this item is unchecked by default. 3.3.4 Client ID This is NOT available for this product.
  • Page 21: Management

    SIG-5440 User Manual Ver. 1.0 Management 4.1 Checking Status This is a function to view the current status of the product. Information in the [Status] window automatically updated every second. After searching connecting the product with spFinder, press the [Status] button to display this window.
  • Page 22: Communication Status

    SIG-5440 User Manual Ver. 1.0 4.1.2 Communication Status ⚫ Communication Status Window This area shows some communication status of your product. This area is refreshed every second. Figure 4-2 Communication Status Window ⚫ TCP STATE Status Description LISTEN Listen CLOSED...
  • Page 23: Timeout

    SIG-5440 User Manual Ver. 1.0 ⚫ DEVICE STATISTICS Item Description TCP0~3 The byte count of TCP data: TX, RX, DROP The byte count of outgoing TCP data The byte count of incoming TCP data DROP The byte count of discarded TCP data...
  • Page 24: Firmware Change

    SIG-5440 User Manual Ver. 1.0 4.2 Firmware Change New firmware can be released when adding functions or fixing bugs. If you are using old firmware, you can upgrade it to the latest version. Firmware can be upgraded online or manually via spFinder.
  • Page 25: Manual Upgrade

    SIG-5440 User Manual Ver. 1.0 4.2.2 Manual Upgrade Figure 4-4 Manual Upgrade ⚫ Download a Firmware file to your PC. ⚫ Search and connect to your product by spFinder. ⚫ Click [Advanced] > [Firmware Change] menu. ⚫ Select to [Manual upgrade] on the [Firmware Upgrade] window.
  • Page 26: Console

    SIG-5440 User Manual Ver. 1.0 4.3 Console The console function analyzes and displays the Modbus frames sent and received by the product. After searching and connecting the product with spFinder, click [Console] in the [Advanced] menu to display the console window. When you open this window, the spFinder connects to the product and keeps the connection until you close the window or time out.
  • Page 27: Fw Log Tab

    SIG-5440 User Manual Ver. 1.0 ⚫ dump on Pressing this button starts printing communication data out on the network to the Output tab ⚫ dump off Pressing this button stops printing communication data out on the network to the Output tab ⚫...
  • Page 28: Factory Reset

    SIG-5440 User Manual Ver. 1.0 4.5 Factory Reset Performing the Factory Reset, you can restore all the settings to the default including the password. Follow the procedure below by checking the status of RUN LED. 1. Press and immediately release the function button.
  • Page 29: Register Map

    SIG-5440 User Manual Ver. 1.0 Register Map 5.1 Read Only 5.1.1 Digital Input Status Register This is the most recently stored digital input value. The range of values is 0 to 4095. HMI Addressing Division Address Bit Count Type Function Code...
  • Page 30: Device Information Register

    SIG-5440 User Manual Ver. 1.0 5.1.4 Device Information Register HMI Addressing Division Address Word Count Type Function Code Example Vendor Name ASCII 40401 Product Code ASCII 40408 Version ASCII 40412 Comment ASCII 40417 Uptime ASCII 40433 MAC Address ASCII 40443...
  • Page 31: Read / Write

    SIG-5440 User Manual Ver. 1.0 5.2 Read / Write 5.2.1 Reset Counter Register This register initializes the values of Digital Input Counter Register. When the value of the bit corresponding to each port is stored as 1, the counter value of the port is initialized and the bit is set to 0 again.
  • Page 32: Technical Support And Warranty

    Technical Support and Warranty 6.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: ⚫ E-mail: support@eztcp.com...
  • Page 33: Precaution And Exemption From Liability

    ⚫ Specifications of the product are subject to change without prior notice for performance improvement. ⚫ Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications. ⚫ Reverse engineering of firmware and applications provided by Sollae Systems is prohibited.
  • Page 34: Exemption From Liability

    (including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the SIG-5440 even if Sollae Systems Co., Ltd. or its distributors have been informed of such damages.
  • Page 35: French Version

    à leur propriétaire et Fabricant respectif. ⚫ Conditions d’utilisations et limite de responsabilité En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, dommages...
  • Page 36 SIG-5440 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier SIG-5440 puisse être échangé au titre de la garantie.
  • Page 37: Revision History

    SIG-5440 User Manual Ver. 1.0 Revision History Date Version Description Author 2020.09.08. 1. Created Roy Lee - 36 - https://www.ezTCP.com...
