- Page 1 4-Port I/O Gateway SIG-5600 User Manual Version 1.0 Sollae Systems https://www.ezTCP.com...
- Page 2 SIG-5600 User Manual Ver. 1.0 This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
-
Page 3: Table Of Contents
SIG-5600 User Manual Ver. 1.0 Contents Overview ............- 4 - 1.1 Introduction ............- 4 - 1.2 Features ............- 4 - 1.3 Specification ............- 4 - 1.4 Interface ............- 6 - 1.4.1 Power ..............- 6 - 1.4.2 Ethernet ............... - Page 4 SIG-5600 User Manual Ver. 1.0 Management ............ - 24 - 4.1 Checking Status ............ - 24 - 4.1.1 Product Information ........... - 24 - 4.1.2 Communication Status ..........- 25 - 4.1.3 Timeout ............... - 26 - 4.1.4 Copy status ............- 26 - 4.2 Firmware Change ............
-
Page 5: Overview

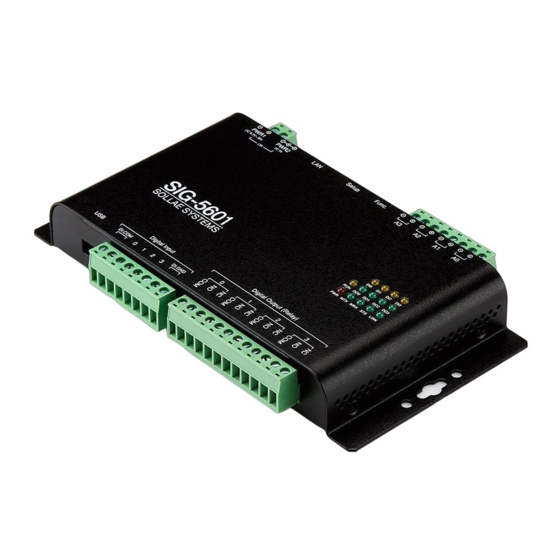

Overview 1.1 Introduction SIG-5600 is an industrial I/O gateway equipped with 4 analog input ports, 4 digital input ports and 4 digital output ports. Users can remotely monitor the values of sensors connected to the digital and analog input ports of this product using Modbus/TCP. - Page 6 SIG-5600 User Manual Ver. 1.0 Protocols IPv4/IPv6 Dual Stack TCP/UDP, ICMP, DHCP, HTTP, mDNS, SSL/TLS WPA-PSK / WPA2-PSK, WPA-Enterprise (TTLS / PEAP) Indicators PWR, RUN, STS, LINK, MTX, MRX, Di0~Di3, Do0~Do3 Management spFinder Configuration and Monitoring Tool Security Password Dimension...
-
Page 7: Interface
SIG-5600 User Manual Ver. 1.0 1.4 Interface Figure 1-1 Interface 1.4.1 Power ⚫ PWR1 Port This port is one of the main input ports for supplying power (DC 8.5V ~ 38V). This port is interfaced with a 2-pole terminal block. -
Page 8: Ethernet
SIG-5600 User Manual Ver. 1.0 1.4.2 Ethernet SIG-5600 provides 10/100Mbps Ethernet. The pin assignment is as follows: Figure 1-3 Ethernet 1.4.3 Setup Port This port is used for making a connection with a PC via USB cable. 1.4.4 Function Button This button is used to implement a factory reset. -
Page 9: Led
SIG-5600 User Manual Ver. 1.0 1.4.6 LED LED operations according to each state are as follows: When the supplied power is stable: PWR When the supplied power is NOT stable: PWR When the script is running: RUN When the script is running: RUN... -
Page 10: Digital Output Port
SIG-5600 User Manual Ver. 1.0 1.4.7 Digital Output Port This port is interfaced with a 5mm pitch 12-pole terminal block. Figure 1-5 Digital output port ⚫ Port Specification Division Value Number of ports Normal Open Max. Allowed Current at DC 30V... -
Page 11: Digital Input Port
SIG-5600 User Manual Ver. 1.0 1.4.8 Digital Input Port This port is interfaced with a 5mm pitch 8-pole terminal block. Figure 1-6 Digital Input Port ⚫ Port Specification Division Value Number of ports Maximum Input Voltage DC 25V Voltage Required for ON decision higher than DC 2.5V... - Page 12 SIG-5600 User Manual Ver. 1.0 ⚫ WET contact Figure 1-8 WET contact ⚫ DRY contact Figure 1-9 DRY contact - 11 - https://www.ezTCP.com...
-
Page 13: Usb Host Port
SIG-5600 User Manual Ver. 1.0 ⚫ NPN transistor Figure 1-10 NPN transistor ⚫ PNP transistor Figure 1-11 PNP transistor 1.4.9 USB Host Port This port is for connecting a USB wireless LAN adapter. You can connect your product to IEEE802.11b/g wireless LAN with connecting a USB wireless LAN adapter to this port. -
Page 14: Preparation
SIG-5600 User Manual Ver. 1.0 Preparation 2.1 Installing the Setting Tool You need a program which is called spFinder to use this product. Download the program on our web site and install it on your PC. Functions of the spFinder are as follows: ⚫... -
Page 15: Settings
SIG-5600 User Manual Ver. 1.0 Settings 3.1 Network 3.1.1 Obtain an IP address automatically This product can automatically obtain an IP address by DHCP. A DHCP server is required to use this. Figure 3-1 Obtain an IP address automatically ⚫ Select the [Obtain an IP address automatically]. -
Page 16: Use A Static Ip Address
SIG-5600 User Manual Ver. 1.0 3.1.2 Use a Static IP address You can set a static IP address to this product. Figure 3-2 Use a static IP address ⚫ Select the [Use static IP address]. ⚫ Set the [Local IP address], [Subnet mask], [Gateway IP address] and [DNS IP address]. -
Page 17: Wlan
SIG-5600 User Manual Ver. 1.0 3.2 WLAN WLAN setting is only for connecting your product to a wireless LAN. Make sure to connect a USB wireless LAN adapter before you set it. Note: Ethernet connectivity of your product is disabled when you using the wireless LAN function. -
Page 18: Soft Ap
3.2.2 Soft AP Figure 3-5 Soft AP mode In this mode, SIG-5600 operates like an AP in order to make a connection with a wireless LAN client. The IP address of this product is fixed to 192.168.0.1 and it is not allowed to be changed. Each wireless LAN client is randomly assigned to an IP address among 192.168.0.3 to 192.168.255.254. -
Page 19: Advanced Settings
SIG-5600 User Manual Ver. 1.0 3.2.3 Advanced Settings You can configure advanced settings for WLAN by clicking the [Advanced Settings] button. We recommend using the default values if you do not have any problem with it. ⚫ PHY Mode You have three options for PHY mode and those are [802.11], [802.11b] and [802.11b/g] mode. -
Page 20: General
SIG-5600 User Manual Ver. 1.0 3.3 General Figure 3-7 General 3.3.1 Comment This setting is for storing the product description. The maximum setting size of this item is 32 bytes. 3.3.2 TCP ⚫ Communication Mode This item selects the TCP connection method. You can choose between TCP Server and TCP Client. -
Page 21: Modbus
SIG-5600 User Manual Ver. 1.0 connection is terminated. The unit is seconds and can be set between 0 and 3600. Default value is 60 3.3.3 Modbus ⚫ Modbus Type This item is to set the Modbus type. This product allows the Slave only. - Page 22 SIG-5600 User Manual Ver. 1.0 item. The setting unit is milliseconds. The range is 0 to 30000 and the default value is 0. ⚫ Pulse: Width (Unit: ms) This item is to set the time to output ON signal in pulse output mode. The setting unit is milliseconds.
-
Page 23: Security
SIG-5600 User Manual Ver. 1.0 3.4 Security Figure 3-8 Security 3.4.1 Password Both ID and password are required to access this product. Note that changing the default password to another is highly recommended for security. The password should be longer than 8 characters. -
Page 24: Client Id
SIG-5600 User Manual Ver. 1.0 ⚫ Remote access If this item is checked, the product can be connected from the remote network. For security, this item is unchecked by default. 3.4.4 Client ID This is NOT available for this product. -
Page 25: Management
SIG-5600 User Manual Ver. 1.0 Management 4.1 Checking Status This is a function to view the current status of the product. Information in the [Status] window automatically updated every second. After searching connecting the product with spFinder, press the [Status] button to display this window. -
Page 26: Communication Status
SIG-5600 User Manual Ver. 1.0 ⚫ Product Information List Item Description Product name Product name Pkgware Model name, package version, Firmware version File name File name Uptime Elapsed time since it boots up (day / hour:min:sec) IPv4 Assigned IPv4 address... -
Page 27: Timeout
SIG-5600 User Manual Ver. 1.0 ⚫ TCP STATE Status Description LISTEN Listen CLOSED Disconnected CONNECTED Connected (IP and port of the connected host will be shown) CONNECTING Connecting DISCONNECTING Disconnecting Table 4-2 TCP STATE ⚫ MODBUS STATISTICS Item Description RX0~3... -
Page 28: Firmware Change
SIG-5600 User Manual Ver. 1.0 4.2 Firmware Change New firmware can be released when adding functions or fixing bugs. If you are using old firmware, you can upgrade it to the latest version. Firmware can be upgraded online or manually via spFinder. -
Page 29: Manual Upgrade
SIG-5600 User Manual Ver. 1.0 4.2.2 Manual Upgrade Figure 4-4 Manual Upgrade ⚫ Download a Firmware file to your PC. ⚫ Search and connect to your product by spFinder. ⚫ Click [Advanced] > [Firmware Change] menu. ⚫ Select to [Manual upgrade] on the [Firmware Upgrade] window. -
Page 30: Console
SIG-5600 User Manual Ver. 1.0 4.3 Console The console function analyzes and displays the Modbus frames sent and received by the product. After searching and connecting the product with spFinder, click [Console] in the [Advanced] menu to display the console window. When you open this window, the spFinder connects to the product and keeps the connection until you close the window or time out. -
Page 31: Fw Log Tab
SIG-5600 User Manual Ver. 1.0 ⚫ dump on Pressing this button starts printing communication data out on the network to the Output tab ⚫ dump off Pressing this button stops printing communication data out on the network to the Output tab ⚫... -
Page 32: Factory Reset
SIG-5600 User Manual Ver. 1.0 4.5 Factory Reset Performing the Factory Reset, you can restore all the settings to the default including the password. Follow the procedure below by checking the status of RUN LED. 1. Press and immediately release the function button. -
Page 33: Register Map
SIG-5600 User Manual Ver. 1.0 Register Map 5.1 Read Only 5.1.1 Analog Input Value Register This register is for storing the most recently stored analog input value. The range of values is 0 to 4095. HMI Addressing Division Address Word Count... -
Page 34: Digital Input Status Register
SIG-5600 User Manual Ver. 1.0 5.1.4 Digital Input Status Register This is the most recently stored digital input value. The range of values is 0 to 4095. HMI Addressing Division Address Bit Count Type Function Code Example Port 0 Boolean... -
Page 35: Device Information Register
SIG-5600 User Manual Ver. 1.0 5.1.7 Device Information Register HMI Addressing Division Address Word Count Type Function Code Example Vendor Name ASCII 40401 Product Code ASCII 40408 Version ASCII 40412 Comment ASCII 40417 Uptime ASCII 40433 MAC Address ASCII 40443... -
Page 36: Read/Write
SIG-5600 User Manual Ver. 1.0 5.1 Read/Write 5.1.1 Digital Output Control Register If the bit corresponding to each port of this register is set to 1, the status of the output port is turned ON. Conversely, if the bit is set to 0, the status of the output port is turned OFF. -
Page 37: Reset Analog Input Min/Max Value Register
SIG-5600 User Manual Ver. 1.0 5.1.4 Reset Analog Input Min/Max Value Register This register initializes the minimum and maximum values of analog input. When the value of the bit corresponding to each port is stored as 1, the minimum and maximum values of the port are initialized and the bit is set to 0 again. -
Page 38: Technical Support And Warranty
Technical Support and Warranty 6.1 Technical Support If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems’ web site or send us an email at the following address: ⚫ E-mail: support@eztcp.com... -
Page 39: Precaution And Exemption From Liability
⚫ Specifications of the product are subject to change without prior notice for performance improvement. ⚫ Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications. ⚫ Reverse engineering of firmware and applications provided by Sollae Systems is prohibited. -
Page 40: Exemption From Liability
(including, without limitation, damages for loss of profit, operating cost for commercial interruption, loss of information, or any other financial loss) from the use or inability to use the SIG-5600 even if Sollae Systems Co., Ltd. or its distributors have been informed of such damages. -
Page 41: French Version
à leur propriétaire et Fabricant respectif. ⚫ Conditions d’utilisations et limite de responsabilité En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, dommages... - Page 42 SIG-5600 sans que la responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le boîtier SIG-5600 puisse être échangé au titre de la garantie.
-
Page 43: Revision History
SIG-5600 User Manual Ver. 1.0 Revision History Date Version Description Author 2020.09.08. 1. Created Roy Lee - 42 - https://www.ezTCP.com...
