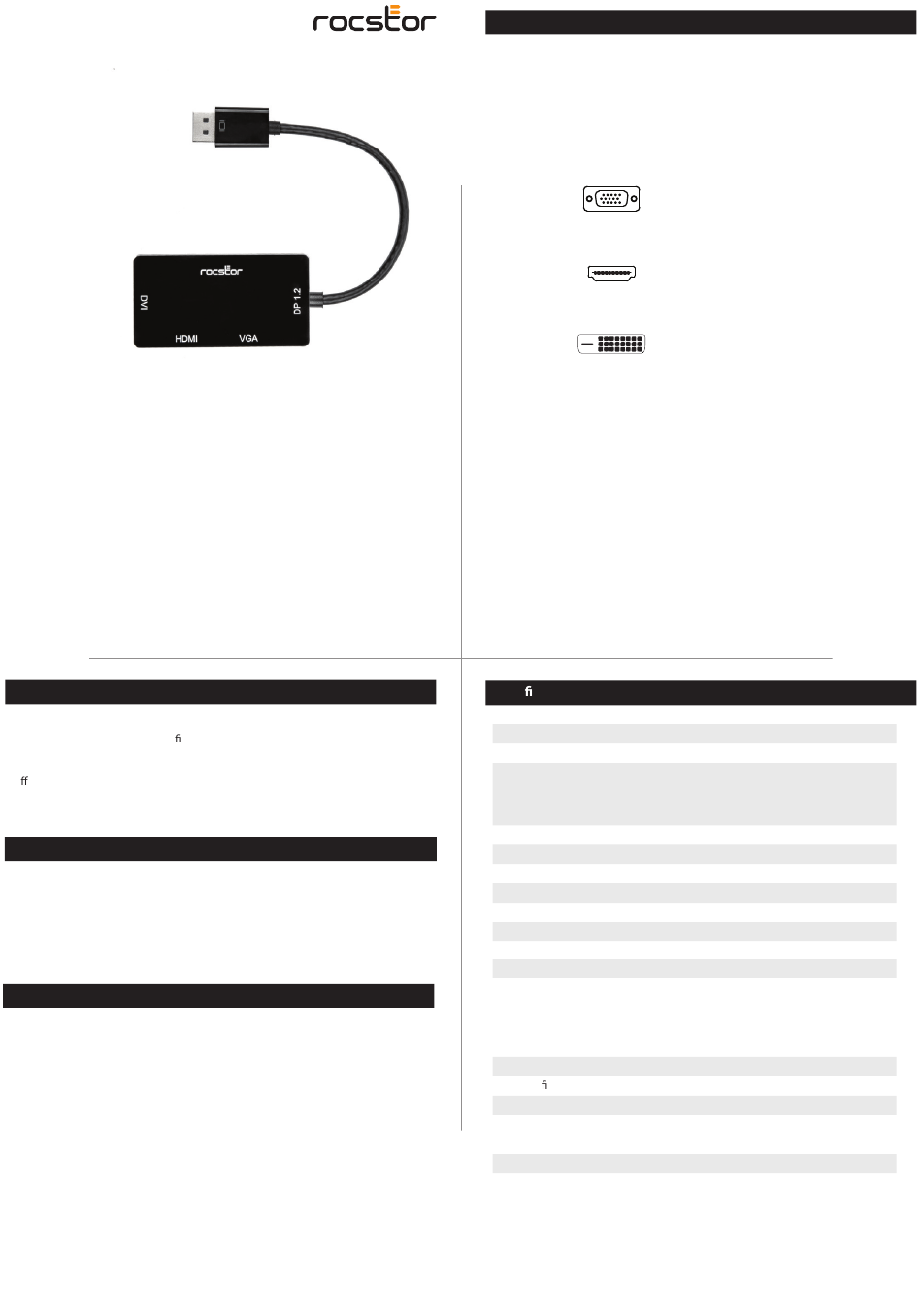

Rocstor Y10A259-B1 User Manual

3-in-1 DisplayPort™ to HDMI® (4K), VGA, or DVI converter Adapter
HDMI 4K@30Hz - PC - Black
Congratulations
Thank you for purchasing this premium Rocstor this product. For optimum performance
and safety, please read these instructions carefully before connecting, operating or using
this product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor DisplayPort 1.2 to HDMI, DVI and VGA adapter, designed for
connecting DP monitor to high de nition monitors with HDMI, VGA and DVI monitors.
It is convenient to use. With three outputs, you can choose to use one of them for one
time as your practical need with corresponding cables.
It o ers solutions for digital entertainment center, HDTV retail and show site, HDTV,
STB, DVD and Projector factory, noise space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
How to Use
1 - Connect the DisplayPort male port of this multiport adapter to the host computer.
2 - Connect the DVI port of this multiport adapter to a DVI monitor.
3 - Connect the HDMI port of this multiport adapter to an HDMI monitor.
4 - Connect the VGA port of this multiport adapter to a VGA monitor.
User Manual
Y10A259-B1
®
Features
Upstream:
DisplayPort Male (Connect to host computer)
• Supports Display Port 1.2 Dual-mode input
• DisplayPort port supports DP v1.2, which is for
1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates
Downstream:
VGA x1 Female
• Supports VGA resolution up to 1920x1200@60Hz
HDMI x1 Female
• Support HDMI highest video resolution 4Kx2K@30Hz
DVI x1 Female
• Support DVI resolution up to 1080P@60HZ
• If two or more outputs are connected, only one
output port can receive input signal.
• Automatic Power Management: Enter power saving mode
automatically when output display is not connected.
• Powered from DisplayPort source.
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
Power Source
Power consumption
Regulatory Approvals
Certi cations
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
DisplayPort Male x1
DVI Female x1
HDMI Female x1
VGA Female x1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 80 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
5% to 90 % RH (no condensation)
Powered from DP input
DVI output: <200mA
HDMI output: <400mA
VGA output: <400mA
FCC, CE
English Version
