Removing an SRX5600 Services Gateway SCB
To remove an SCB (see Figure 1):
NOTE: The SCB and Routing Engine are removed as a unit. You can also remove the
Routing Engine separately.
CAUTION: Before removing an SCB, ensure that you know how to operate the ejector
handles properly to avoid damage to the equipment.
Power off the device.
1.
Place an electrostatic bag or antistatic mat on a flat, stable surface.
2.
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and
3.
connect the strap to one of the ESD points on the chassis.
Rotate the ejector handles simultaneously counterclockwise to unseat the SCB.
4.
Grasp the ejector handles and slide the SCB about halfway out of the chassis.
5.
Place one hand underneath the SCB to support it and slide it completely out of
6.
the chassis.
Place the SCB on the antistatic mat.
7.
If you are not replacing the SCB now, install a blank panel over the empty slot.
8.

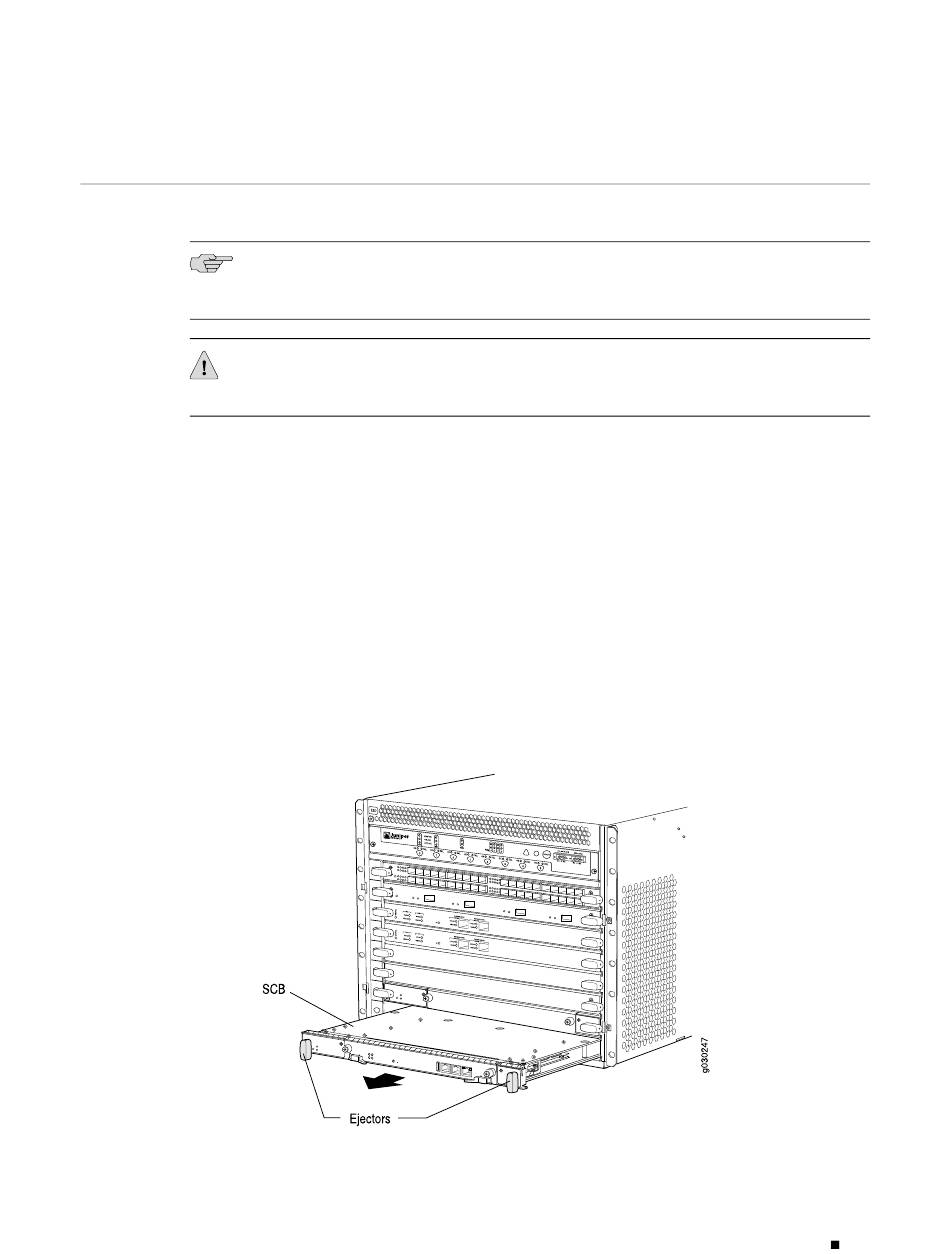

Figure 1: Removing an SCB
Removing an SRX5600 Services Gateway SCB
