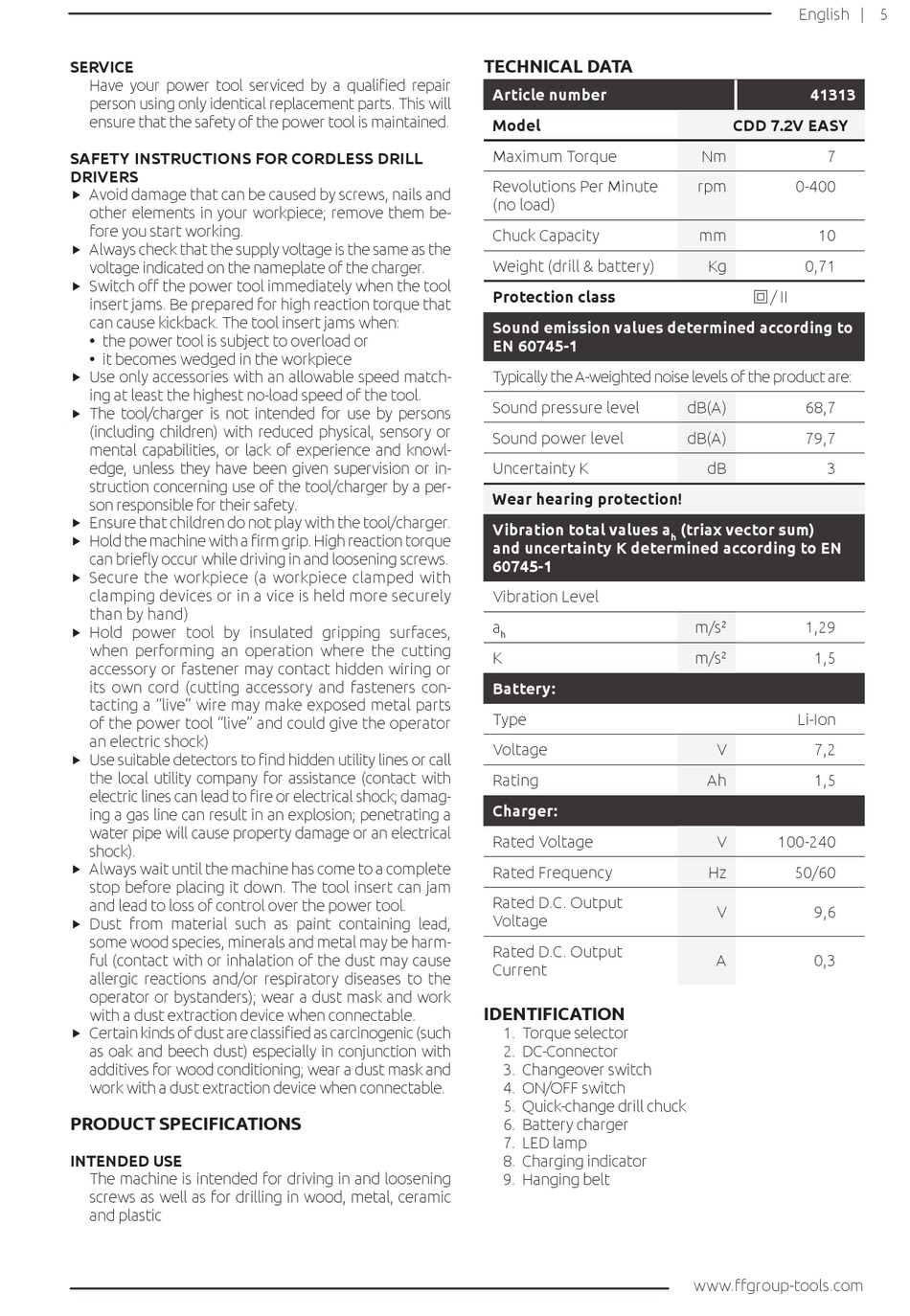

Product Specifications; Technical Data - F.F. Group CDD 7.2V EASY Original Instructions Manual

SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR CORDLESS DRILL
DRIVERS
Avoid damage that can be caused by screws, nails and
f
other elements in your workpiece; remove them be-
fore you start working.
Always check that the supply voltage is the same as the
f
voltage indicated on the nameplate of the charger.
Switch off the power tool immediately when the tool
f
insert jams. Be prepared for high reaction torque that
can cause kickback. The tool insert jams when:
• the power tool is subject to overload or
• it becomes wedged in the workpiece
Use only accessories with an allowable speed match-
f
ing at least the highest no-load speed of the tool.
The tool/charger is not intended for use by persons
f
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or in-
struction concerning use of the tool/charger by a per-
son responsible for their safety.
Ensure that children do not play with the tool/charger.
f
Hold the machine with a firm grip. High reaction torque
f
can briefly occur while driving in and loosening screws.
Secure the workpiece (a workpiece clamped with
f
clamping devices or in a vice is held more securely
than by hand)
Hold power tool by insulated gripping surfaces,
f
when performing an operation where the cutting
accessory or fastener may contact hidden wiring or
its own cord (cutting accessory and fasteners con-
tacting a "live" wire may make exposed metal parts
of the power tool "live" and could give the operator
an electric shock)
Use suitable detectors to find hidden utility lines or call
f
the local utility company for assistance (contact with
electric lines can lead to fire or electrical shock; damag-
ing a gas line can result in an explosion; penetrating a
water pipe will cause property damage or an electrical
shock).
Always wait until the machine has come to a complete
f
stop before placing it down. The tool insert can jam
and lead to loss of control over the power tool.
Dust from material such as paint containing lead,
f
some wood species, minerals and metal may be harm-
ful (contact with or inhalation of the dust may cause
allergic reactions and/or respiratory diseases to the
operator or bystanders); wear a dust mask and work
with a dust extraction device when connectable.
Certain kinds of dust are classified as carcinogenic (such
f
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when connectable.

PRODUCT SPECIFICATIONS

INTENDED USE
The machine is intended for driving in and loosening
screws as well as for drilling in wood, metal, ceramic
and plastic

TECHNICAL DATA

Article number
Model
Maximum Torque
Revolutions Per Minute
(no load)
Chuck Capacity
Weight (drill & battery)
Protection class
Sound emission values determined according to
EN 60745-1
Typically the A-weighted noise levels of the product are:
Sound pressure level
Sound power level
Uncertainty K
Wear hearing protection!
Vibration total values a
and uncertainty K determined according to EN
60745-1
Vibration Level
a
h
K
Battery:
Type
Voltage
Rating
Charger:
Rated Voltage
Rated Frequency
Rated D.C. Output
Voltage
Rated D.C. Output
Current
IDENTIFICATION
1. Torque selector
2. DC-Connector
3. Changeover switch
4. ON/OFF switch
5. Quick-change drill chuck
6. Battery charger
7. LED lamp
8. Charging indicator
9. Hanging belt
English | 5
41313
CDD 7.2V EASY
Nm 7
rpm 0-400
mm 10
Kg 0,71
/ II
dB(A) 68,7
dB(A) 79,7
dB 3
(triax vector sum)
h
m/s 1,29
2
m/s 1,5
2
Li-Ion
V 7,2
Ah 1,5
V 100-240
Hz 50/60
V 9,6
A 0,3
