Configuration of the External Display

8.4
An external display with S0 input can be utilised using the digital I/O connections on the I/O board.
The following four options are available for the external display configuration:
Option 1: Household consumption
Option 2: Grid Feed-in
Option 3: Plant power
Option 4: AC power single inverter
Commissioning / Wiring:

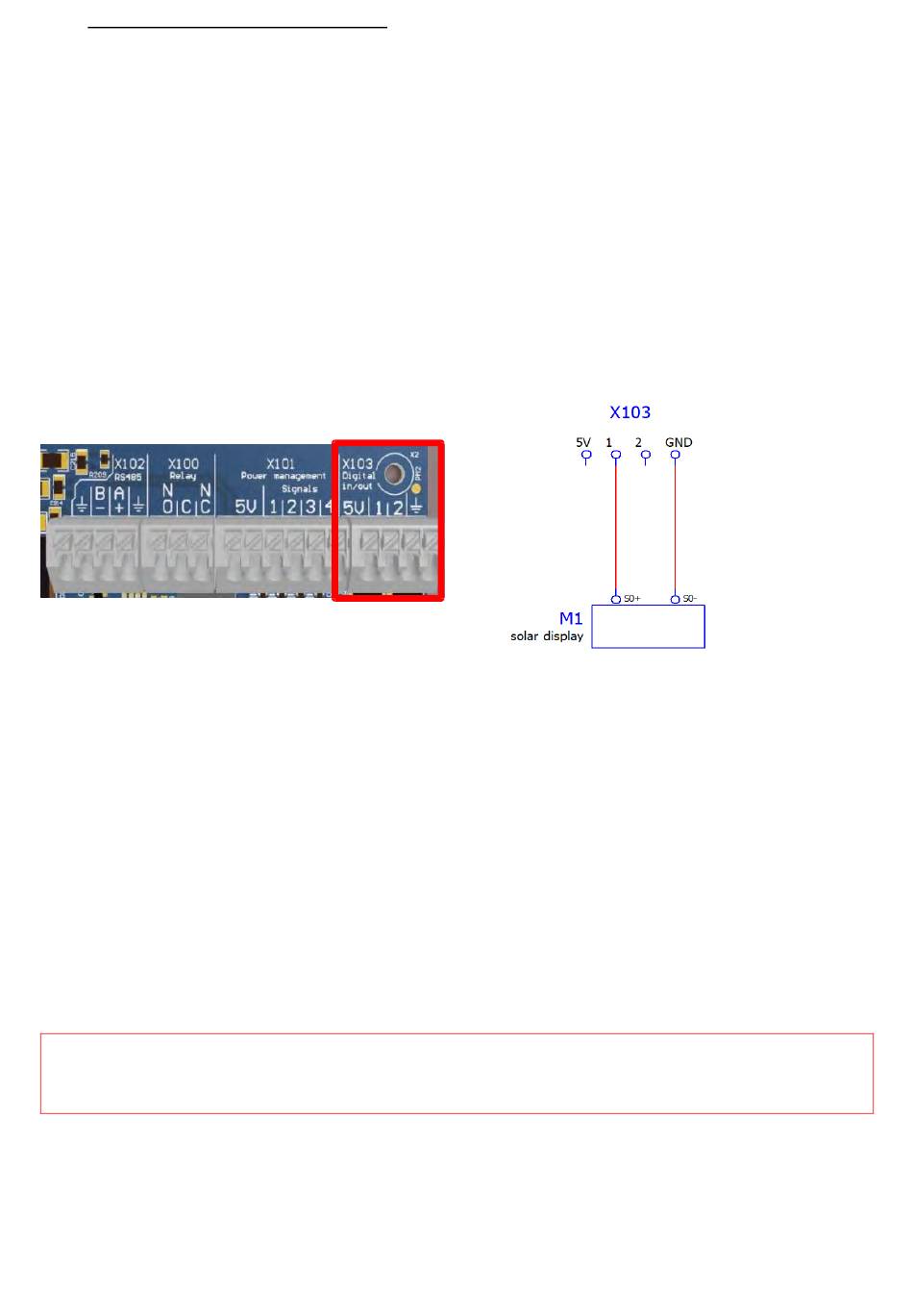

Connect the cables from the S0 input of the display to the terminals X103 on the I/O circuit board.
Please configure the appropriate pulse ratio of the solar display in the RCT Power APP.
The recommended pulse ratio is between 1000 and 5000 pulses / kWh.
Configuration using the APP
Launch the "RCT Power APP" and continue to DEVICE-→ Settings-→ Interfaces-→ Digital I/O's
Under Menu option "Digital I/O 1 usage" select the required display option.
Configure the pulse rate according to the recommended specifications of your solar display.
You can also alternatively use Digital I/O 2 for this setting.
Changes to settings are only made permanent if they are flashed to the inverter's memory!
It is therefore essential to press "FLASH" to confirm your settings changes. They will otherwise be lost when the inverter is
switched off.
(Output S0 household power)
(Output S0 grid power feed-in)
(Output S0 inverter power)
(Output S0 device power)
