Multifunction Relay

8.2
8.2.1

Multifunction Relay deployed in "Load" mode

In operational mode "Load", the multifunction relay switches on as soon as a predefined power threshold is reached. This can
be used to control a contactor connecting household loads.
Commissioning / Wiring:
Connect the cables for the power supply (max. 24V/1A) and the contactor to the terminals X100 on the I/O circuit board.

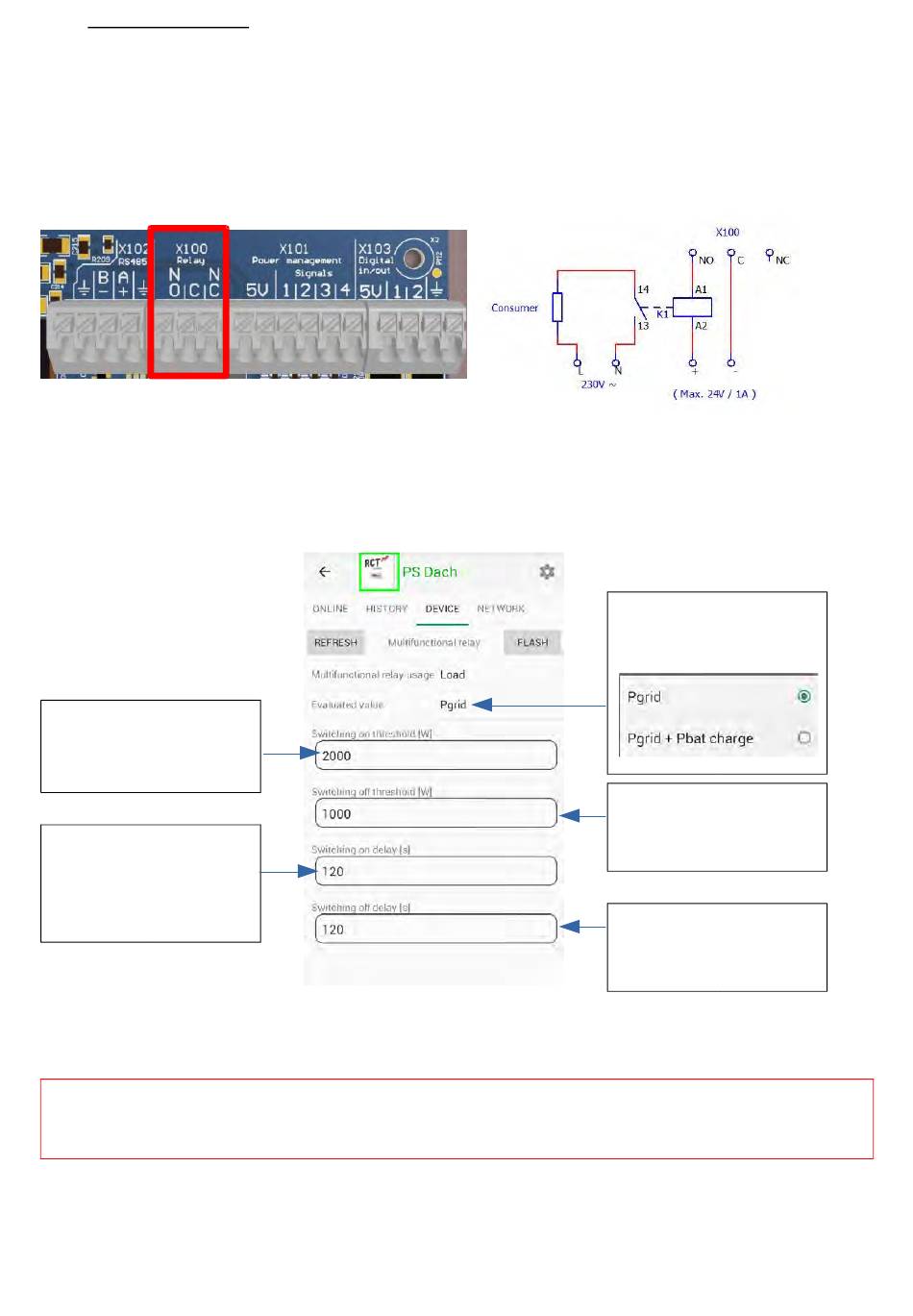

Configuration using the APP:
Launch the "RCT Power APP" and continue to
DEVICE-→ Settings-→ Interfaces-→ Multifunctional relay-→ Multifunctional relay usage-→ Load
Switching on threshold:
Relay switches on if
measured value exceeds
configured value.
Switching on delay:
The relay switches on
when the switching on
power is exceeded for
longer than the configured
delay time.
Changes to settings are only made permanent if they are flashed to the inverter's memory!
It is therefore essential to press "FLASH" to confirm your settings changes. They will otherwise be lost when the inverter is
switched off.
8.2.2

Multifunction Relay deployed in "Alarm" mode

In operational mode "Alarm", the multifunction relay switches on when a fault is detected. You can control a signal light to
indicate the fault.
84
Evaluated value:
Please select your
corrresponding option
Switching off threshold:
Relay switches on if the
measured value is below
the configured value.
Switching off delay:
Relay switches on if the
measured value is below
the configured value.
