Configuration Of The Emergency Stop Switch - RCT Power Storage DC 8.0 Manual

Commissioning / Wiring:

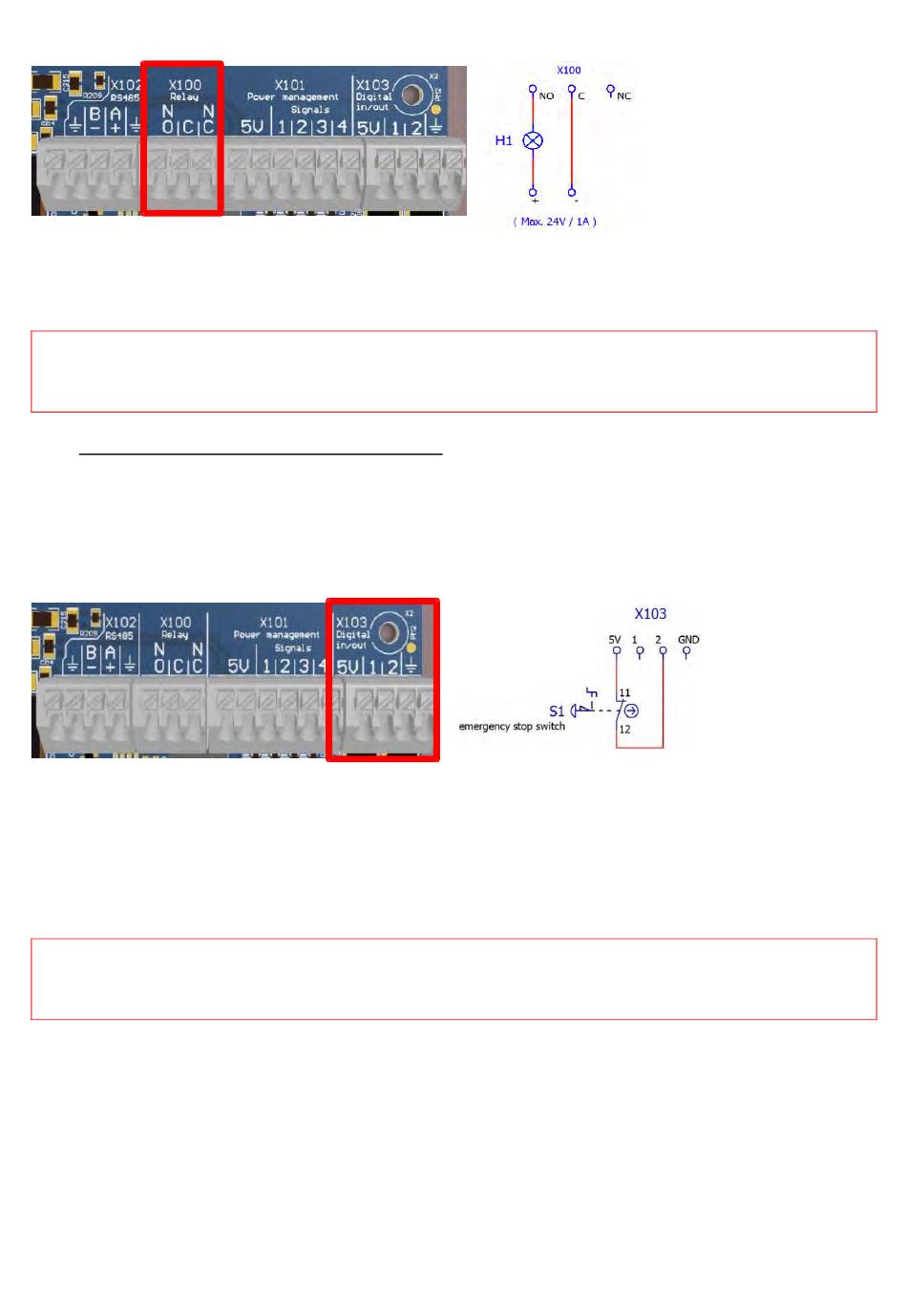

Connect the cables for the power supply (max. 24V/1A) and the signal lamp to the terminals X100 on the I/O curcuit board.
Configuration using the APP:
Launch the "RCT Power APP" and continue to
DEVICE-→ Settings-→ Interfaces-→ Multifunctional relay-→ Multifunctional relay usage-→ Alarm
Changes to settings are only made permanent if they are flashed to the inverter's memory!
It is therefore essential to press "FLASH" to confirm your settings changes. They will otherwise be lost when the inverter is
switched off.

Configuration of the Emergency Stop Switch

8.3
Inputs X103 on the I / O board can be used to disable the inverter remotely.
Commissioning / Wiring:
Connect the cables of the ripple control receiver to the terminals X103 on the I/O circuit board.
Configuration using the RCT Power APP:
Launch the "RCT Power APP" and continue to DEVICE-→ Settings-→ Interfaces-→ Digital I/O's
Under Menu option "Digital I/O 1 usage" select the setting "Input emergency turn off".
Set the tick mark for "Inverted Signal on input I/O 1".
You can also alternatively use Digital I/O 2 for this setting.
Changes to settings are only made permanent if they are flashed to the inverter's memory!
It is therefore essential to press "FLASH" to confirm your settings changes. They will otherwise be lost when the inverter is
switched off.
