Connection – Power Sensor
5.8
This section only applies when the RCT Power Sensor is used.
The functionality of the power storage system is based on the measurement of energy
flows.

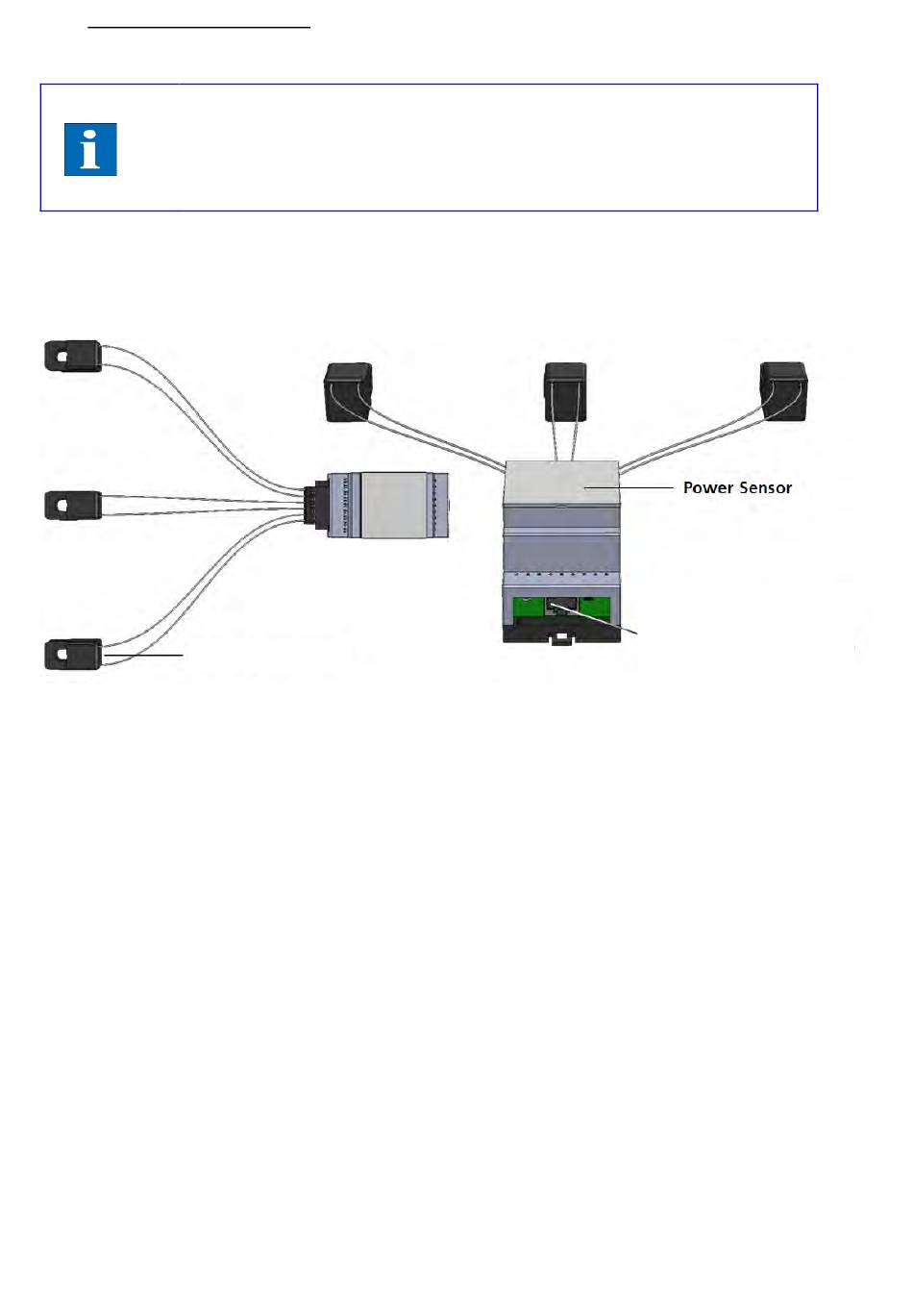

The RCT Power Sensor can easily be installed without disconnecting the cables and allows 3-
phase current monitoring.
current sensor
Put the power sensor in the house junction box.
Connect the three current sensors to the phases L1, L2 and L3 in the house junction box. (The sequence and installation
direction do not have to be observed).
Connect the power sensor via a patch cable to the inverter's corresponding RJ45 port (see Fig, 5-1 b and section 6.3).
For further information on installing the Power Sensor, refer to the Power Sensor manual.
20
RJ45 connection to
Power Storage DC
communication interface
